AlertOps - SAML Relying Party Configuration - RSA Ready Implementation Guide
2 years ago
Originally Published: 2021-09-13

This article describes how to integrate RSA with AlertOps using SAML Relying Party.

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service as Relying Party to AlertOps.
Procedure
  1. Sign in to the RSA Cloud Administration Console.

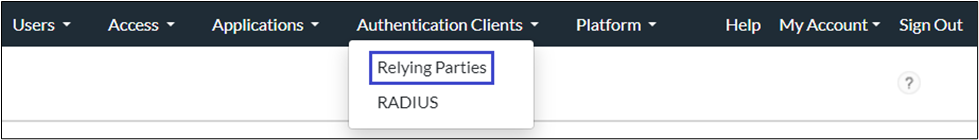

  2. Navigate to the Authentication Clients menu, and from the dropdown, select Relying Parties.image.png

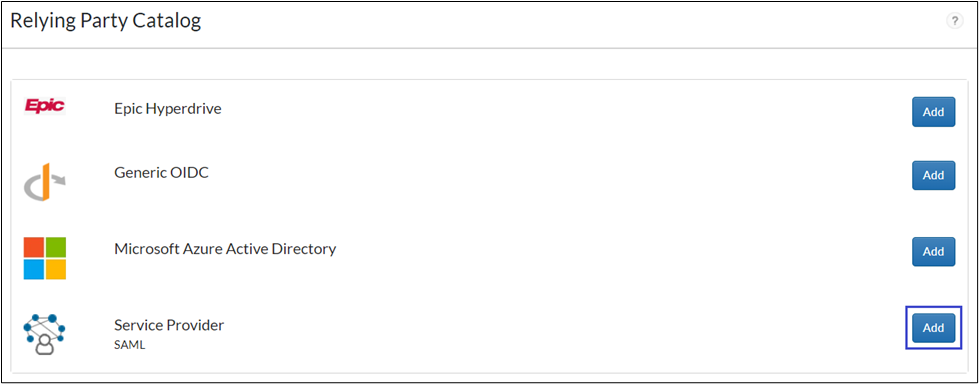

  3. In the Relying Party Catalog, select Add a Relying Party and click Add for Service Provider SAML.image.png

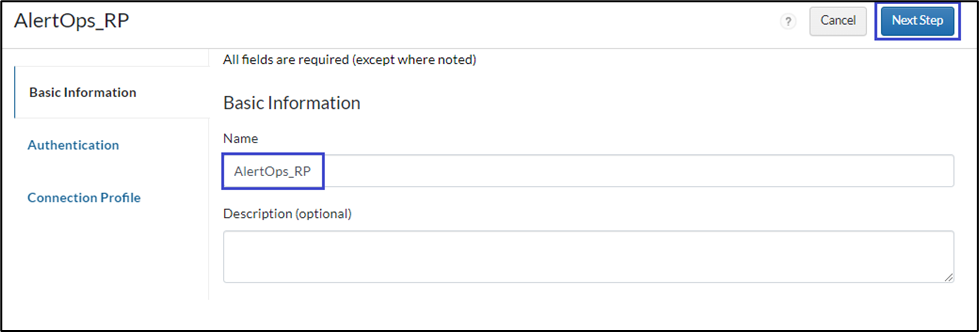

  4. On the Basic Information page, enter a name for the application in the Name field and click Next Step.image.png

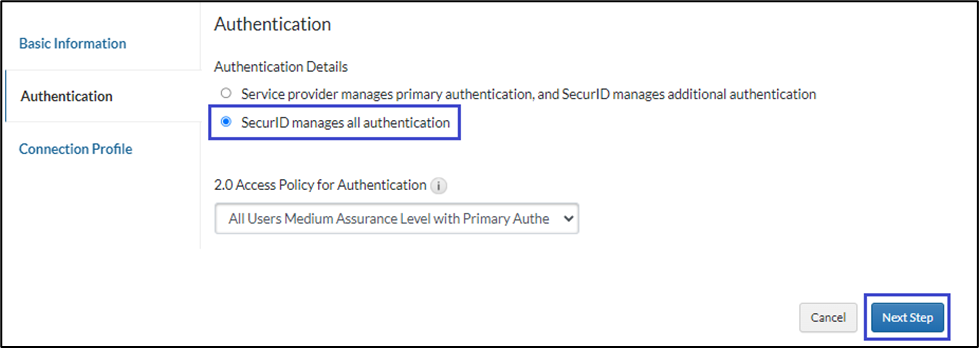

  5. In the Authentication tab, select SecurID manages all authentication.
  6. Select Access Policy as required and click Next Step.image.png

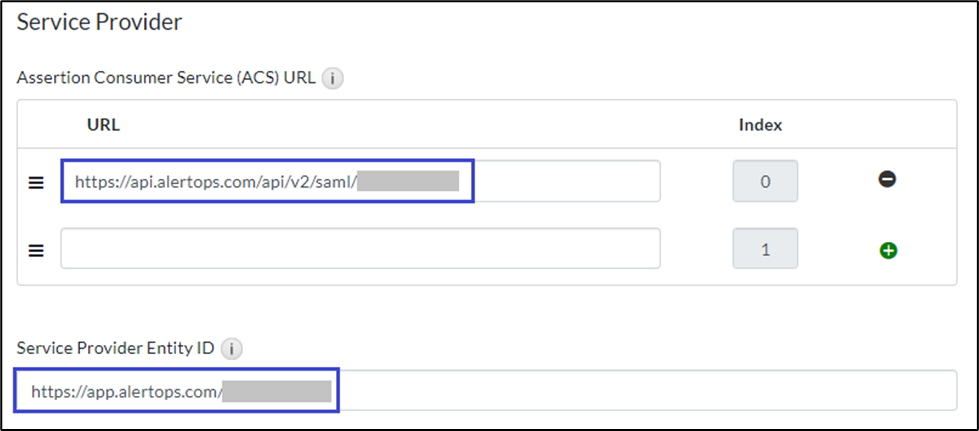

  7. Provide the Service Provider details in the following format:
    1. Assertion Consumer Service (ACS) URLhttps://api.alertops.com/api/v2/saml/<yourorg>
    2. Service Provider Entity IDhttps://app.alertops.com/<yourorg>
Note: '<yourorg>' is the company name you provided while registering for the AlertOps application.

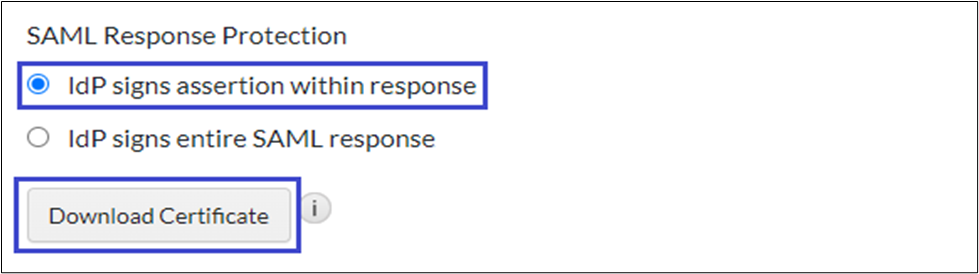

  1. In the SAML Response Protection section, select IdP signs assertion within response, and download the certificate by clicking Download Certificate.image.png
  2. Under the User Identity section, select Show Advanced Configuration, then configure Identifier Type and Property as follows:
    1. Identifier Type: Auto Detect
    2. Property: Auto Detect
  1. Click Save and Finish.

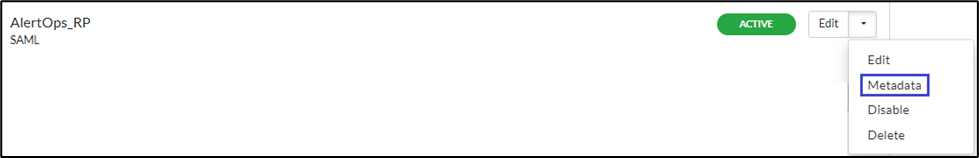

  2. On the My Relying Parties page, click Edit dropdown and select Metadata option to download the metadata.image.png
  3. Click Publish Changes to save your settings. After publishing, your application will be enabled for SSO.image.pngimage.png

Configure AlertOps

Perform these steps to configure AlertOps.
Procedure
  1. Log in to AlertOps using admin credentials.

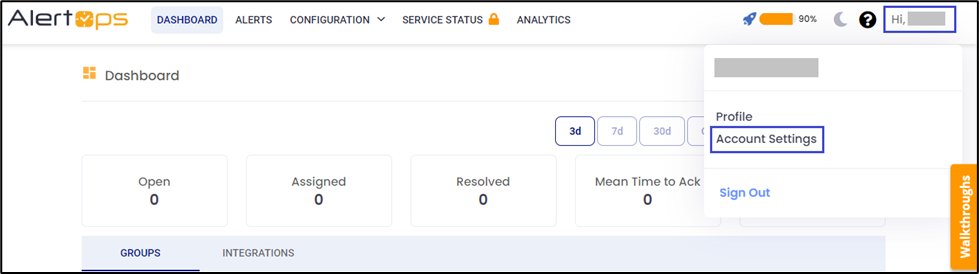

  2. Click on your profile icon in the top right corner and select Account Settings.image.png

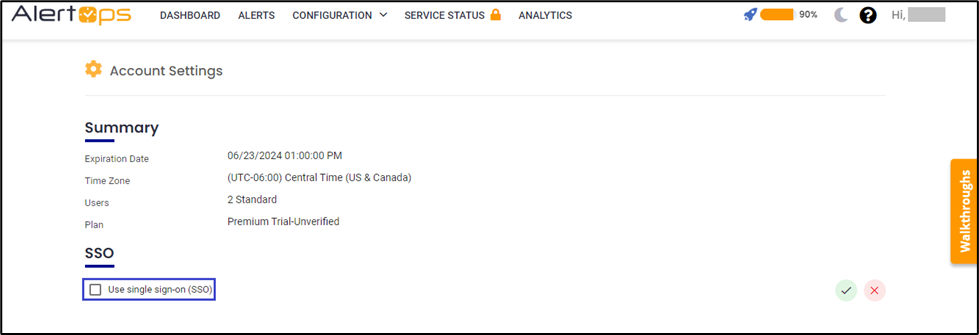

  3. In the SSO section, check the Use single sign-on (SSO) checkbox.image.png

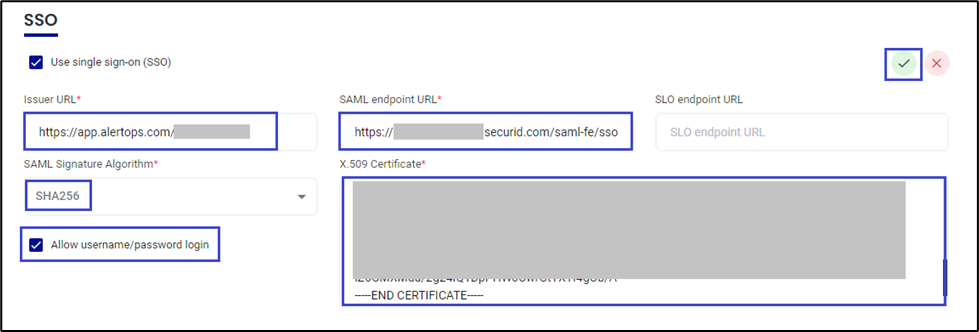

  4. Provide the following details and click on the green tick icon.
    1. Issuer URL: Enter 'https://app.alertops.com/<yourorg>'. Typically, '<yourorg>' refer to the company name you provided when registering for the AlertOps application.
    2. SAML endpoint URL: Enter the value of 'SIngleSignOnService', which can be obtained from the metadata file downloaded from the RSA platform.
    3. SAML Signature Algorithm: Select SHA256 from the dropdown menu.
    4. X.509 Certificate: Copy and paste the certificate downloaded from the RSA platform.
    5. Allow username/password login: Check this checkbox.

The configuration is complete.
