This section describes how to integrate Array NetworksSPX with RSA Cloud Authentication Service using RADIUS.

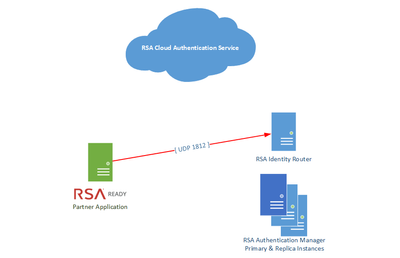

Architecture Diagram

Configure RSA Cloud Authentication Service

To configure RADIUS for Cloud Authentication Service for use with a RADIUS client, you must first configure a RADIUS client in the RSA SecurID Access Console.

Sign into the RSA Cloud Administrative Console and browse to Authentication Clients > RADIUS > Add RADIUS Client and enter the Name, IP Address and Shared Secret.

Click Publish.

Configure Array Networks SPX

Perform these steps to configure Array Networks SPX as a RADIUS client to RSA Cloud Authentication Service.

Note: Before proceeding please ensure that a SSL VPN Virtual Site is already created.

Procedure

1. Log on to your Array Networks administrative interface.

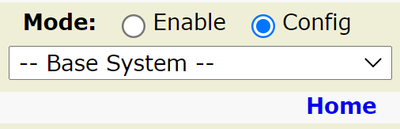

2. From the Mode radio button, select Config.

3. Click on the drop-down just above the Home button, select the virtual site where Radius needs to be configured.



4. From the left side panel click SITE CONFIGURATION -> AAA.



5. Click Server -> RADIUS.



6. Enter the Server Name and Description. Once the Server Name is added, double click on it to Add Radius Server.

7. On the bottom pane, click Add RADIUS Server.



8. Double click on the added radius server and enter the following details:

   1. Server IP: Enter the radius server ip.

   2. Server Port: 1812

   3. Secret Password: Shared password set during Configure RSA Authentication Manager section.

   4. Timeout: 8

   5. Redundancy Order: 1

   6. Retries: Any number less than 65,535. In this case 3.

   7. Accounting Port: 1813



9. Click Save.

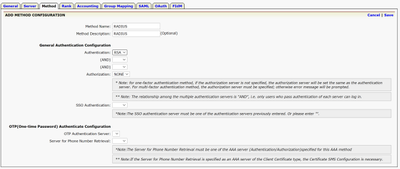

10. Click Method tab and then click Add Method link

11. Enter the Method Name, Method Description (optional) and from the Authentication drop-down select the Radius server created above.
