Blissbook - SAML SSO Agent Configuration - RSA Ready SecurID Access Implementation Guide

This section describes how to integrate RSA SecurID Access with Blissbook using a SAML SSO Agent.

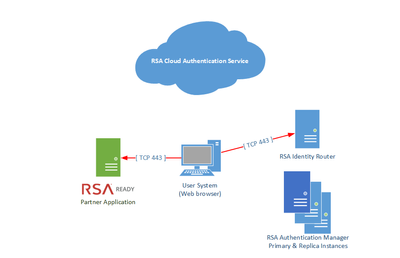

Architecture Diagram

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service as an SSO Agent SAML IdP to Blissbook.

Procedure

1. Sign into the RSA Cloud Administration Console and browse to Applications > Application Catalog.

2. Click on Create From Template found in he upper right of the page then select SAML Direct.

3. On Basic Information page enter a Name for the application, ie. Blissbook Then click on Next Step.

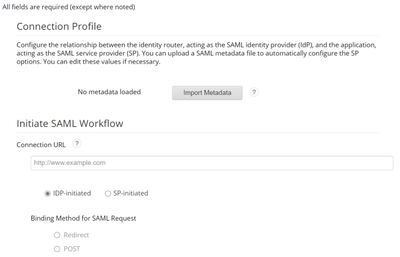

4. On Connection Profile page.

   1. In Connection URL field, verify the default setting.

   2. Choose IDP-Initiated.

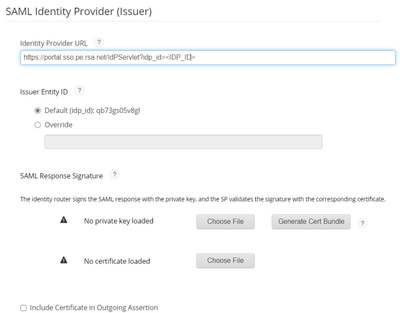

   1. Scroll down to SAML Identity Provider (Issuer) section.

   2. Note the Identity Provider URL and Issuer Entity ID. These values are automatically generated. They may be needed later for the configuration of Blissbook.

   3. Click on Generate Cert Bundle, set a a common name for your company certificate. Then click Generate and Download .

   4. Select Choose File and upload the private key from the generated certificate bundle.

   5. Select Choose File and upload the cert from the generated certificate bundle.

   6. Select Include Certificate on Outgoing Assertion.

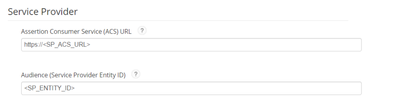

   1. Scroll down to Service Provider section.

   2. Enter the Assertion Consumer Service (ACS) This is the based on the account name for your instance of Blissbook . For example https://<ACCOUNT NAME>.blissbook.com/auth/saml, where the <ACCOUNT NAME> specific to your instance.

   3. Enter the Audience (Service Provider Issuer ID) This is the based on the account name for your instance of Blissbook . For example https://<ACCOUNT NAME>.blissbook.com, where the <ACCOUNT NAME> specific to your instance.

   1. Scroll down to User Identity section.



   2. Ensure Identifier Type = Email Address, set your Identity Source and Property = mail.

   1. Click Next Step.

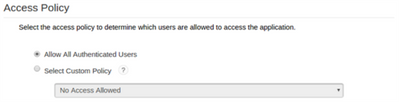

5. On User Access page select the Access Policy you require. Allow All Authenticated Users is the least restrictive. Click Next Step.


1. On Portal Display Page.

   1. Select Display in Portal.

   2. Upload an Application Icon if you wish.

   3. Set an Application Tooltip if you wish.

   4. Click on Save and Finish.

2. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.


Configure Blissbook

Perform these steps to integrate Blissbook with RSA SecurID Access as a SAML SSO Agent.

Procedure

1. Sign into Blissbook and browse to Organization > Account Settings > Authentication > Via Single Sign-On(SSO).

2. Click on Edit for SAML 2.0.

3. Enter a Button Text, This is your preferred text for the SSO button. For example, MySecurID.

4. For SSO Endpoint, enter the Identity Provider URL from the RSA CAS configuration above. For example, https://portal.sso.pe.rsa.net/IdPServlet?idp_id=157mnki28yeed.

5. For Unique Employee Identifier choose Email Adress.

6. For X.509 Certificates click on Add a new certificate and load the RSA SecurID Access public certificate “cert.pem” file. This file is found in the certificate bundle that was generated and downloaded in the RSA CAS configuration above.

7. Click on OK.

Configuration is complete.

Next Step: Head back to the main page.
