This article describes how to integrate Boomi with RSA Cloud Authentication Service using My Page SSO.

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service using My Page SSO.
Procedure

1. Sign in to the RSA Cloud Administration Console with administrator credentials.

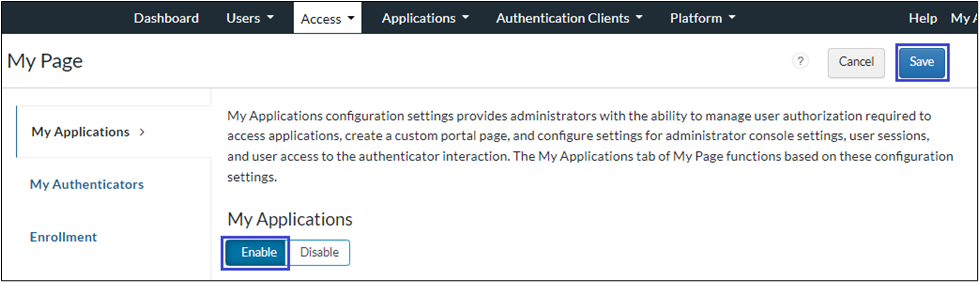

2. Enable SSO on the My Page portal by accessing the RSA Cloud Administration Console > Access > My Page > Single Sign-On (SSO). Ensure it is enabled and protected by two-factor authentication using a Password and Access Policy.

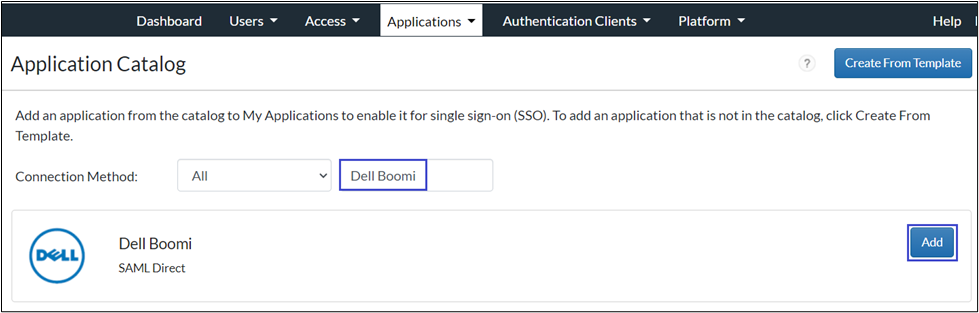

3. On the Applications > Application Catalog page, search for Dell Boomi and click Add to add connection.

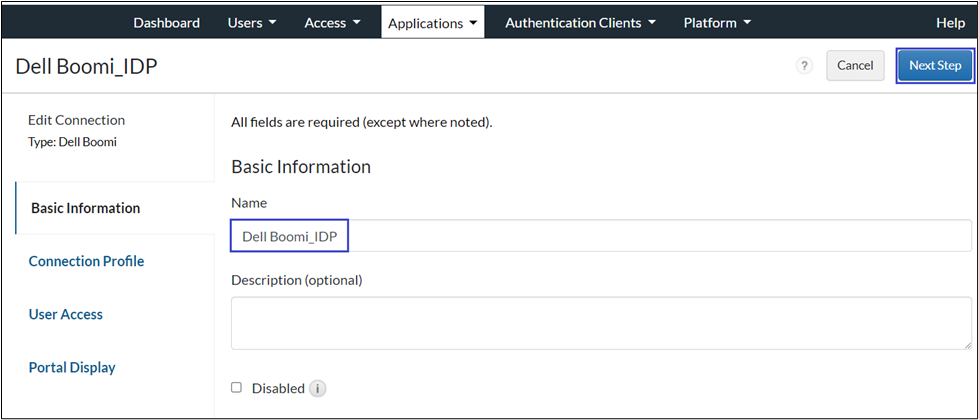

4. On the Basic Information page, enter a name for the configuration in the Name field and click Next Step.

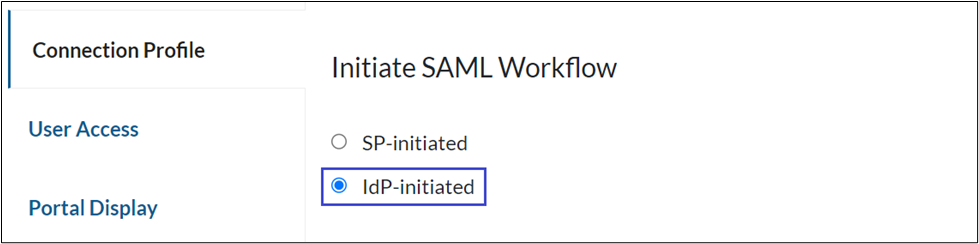

5. In the Connection Profile section, select IdP-initiated option.

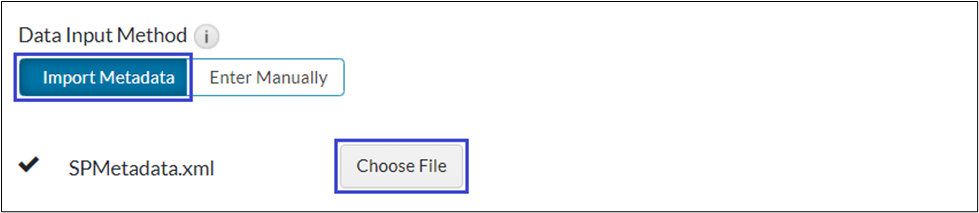

6. To provide Service Provider details, select Import Metadata, click the Choose File button, and select the file downloaded from the Service Provider.

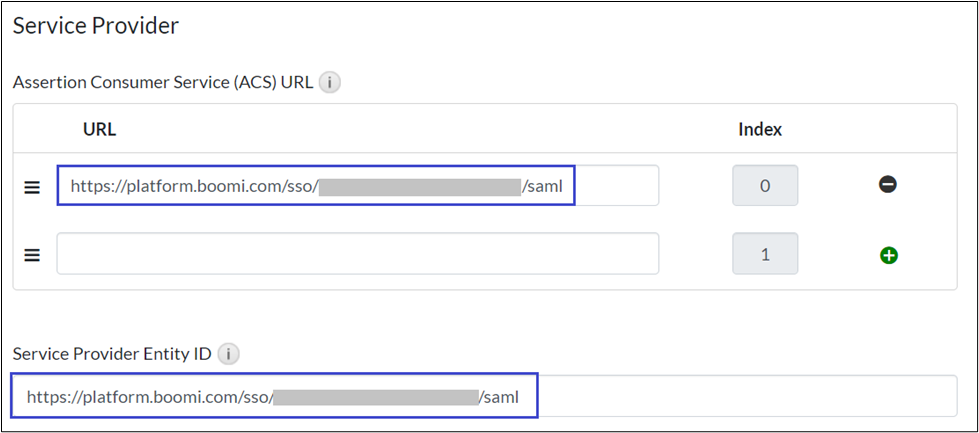

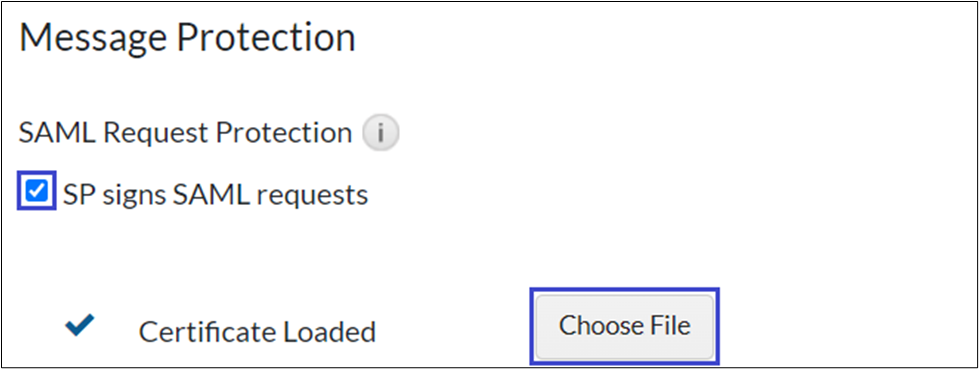

7. Assertion Consumer Service (ACS) URL, Service Provider Entity ID and SP signs SAML requests values will be auto populated.

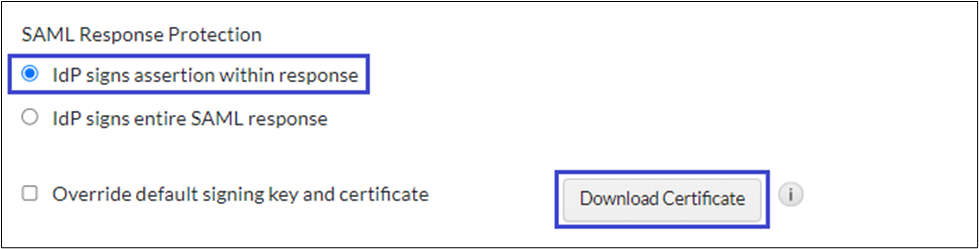

8. In the SAML Response Protection section, select IdP signs assertion within response, and download the certificate by clicking Download Certificate.

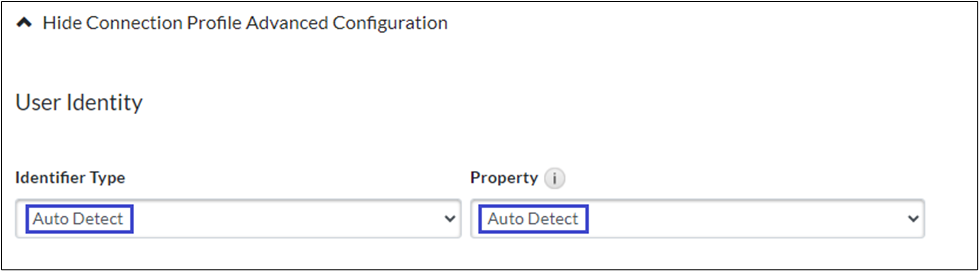

9. Under the User Identity section, select Show Advanced Configuration, then configure Identifier Type and Property as follows:
   1. Identifier Type: Auto Detect
   2. Property: Auto Detect

10. Click Next Step.

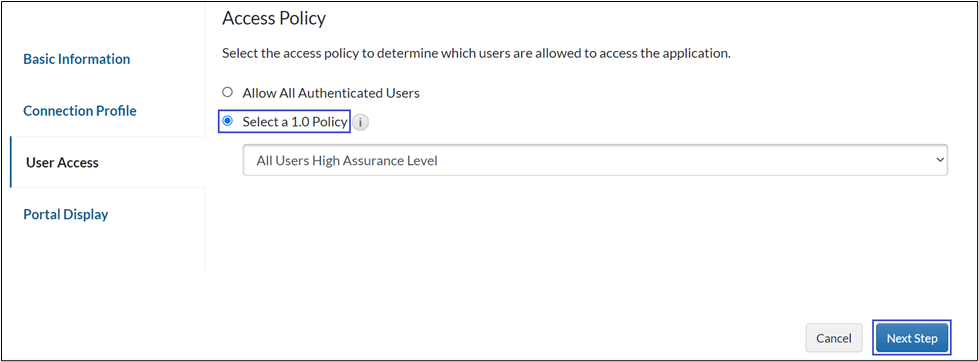

11. Choose your desired Access Policy for this application and click Next Step > Save and Finish.

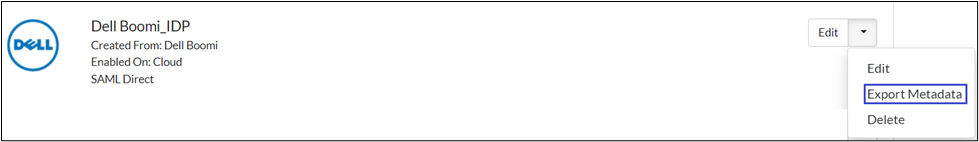

12. On the My Applications page, click the Edit dropdown and select Export Metadata to download the metadata.

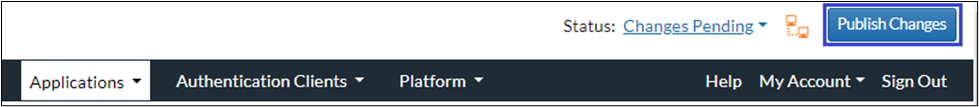

13. Click Publish Changes to save your settings. After publishing, your application will be enabled for SSO.

Configure Boomi

Perform these steps to configure Boomi.
Procedure

1. Log in to Dell Boomi administration console.

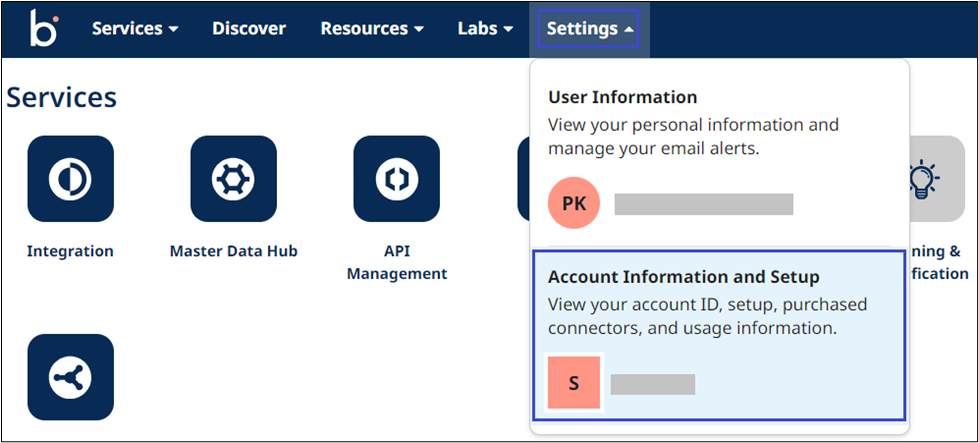

2. Under Settings, click Account Information and Setup.
3. Under Security Options, select SSO Options.

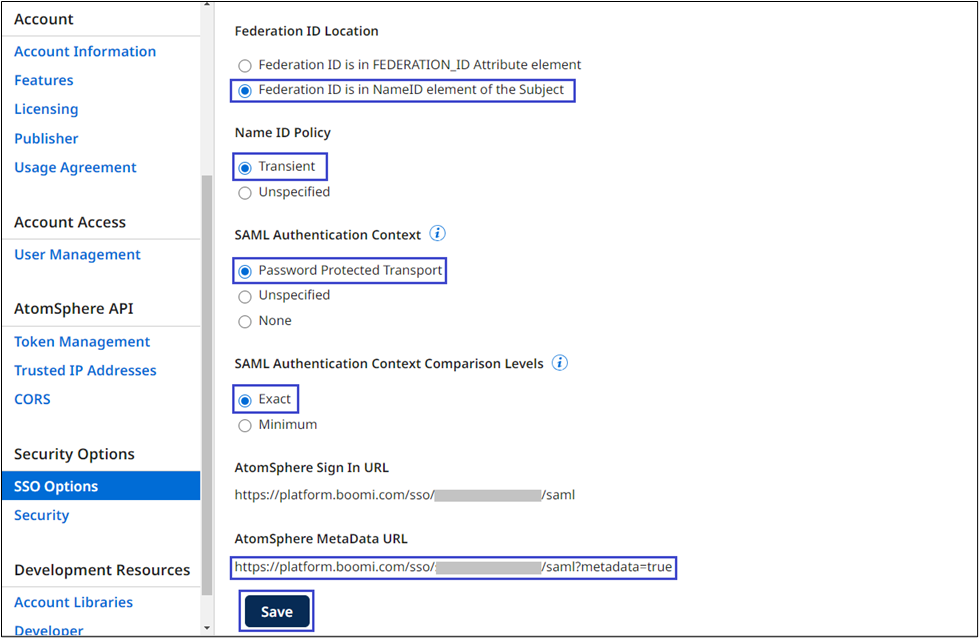

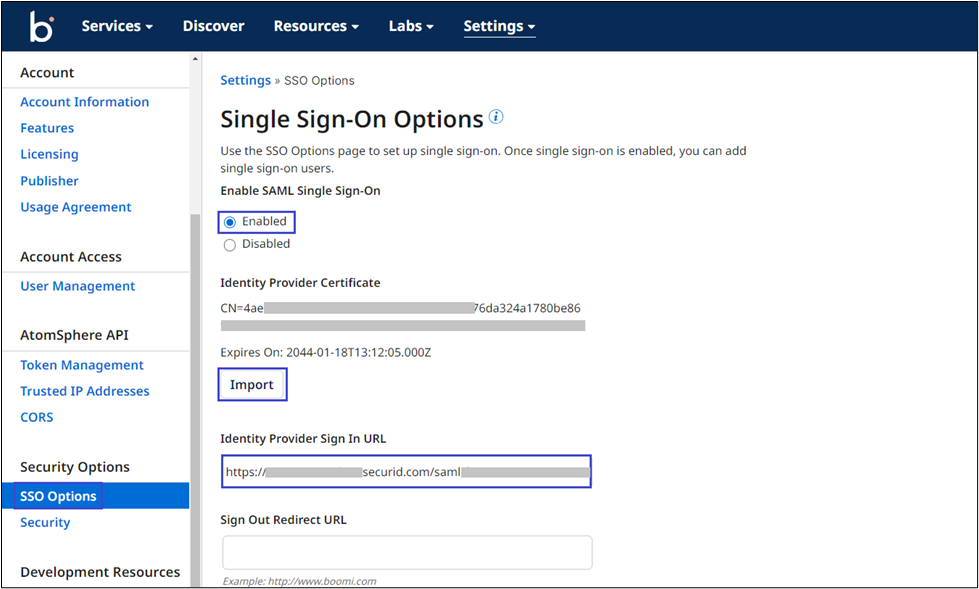

4. Provide the following details and click Save.
   1. Click the Enabled radio button to select Enable SAML Single Sign-On.
   2. Identity Provider Certificate: Upload the certificate downloaded from the RSA platform by clicking the Import button. Before uploading, convert the PEM file to a CRT file - refer to the notes for steps.
   3. Identity Provider Sign In URL: The value of SingleSignOnService, obtainable from the metadata file downloaded from the RSA platform.
   4. Federation ID location: Select the Federation ID is in NameID element of the Subject radio button.
   5. Name ID Policy: Select the Transient radio button.
   6. SAML Authentication Context: Select the Password Protected Transport radio button.
   7. SAML Authentication Context Comparison Levels: Select the Exact radio button.
   8. AtomSphere Metadata URL: This field will be auto populated. Copy the URL to obtain Dell Boomi metadata file for RSA configuration.

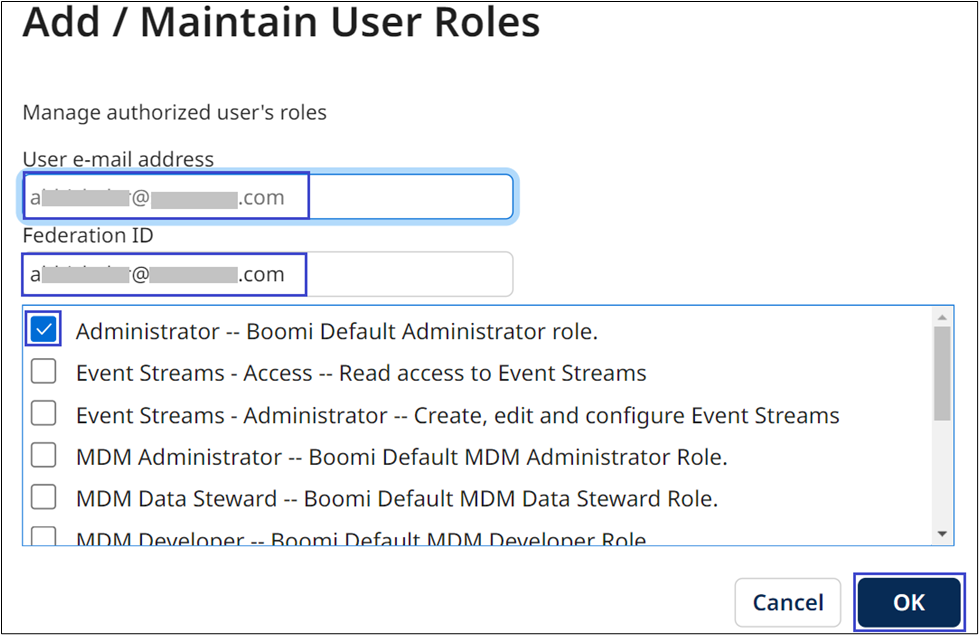

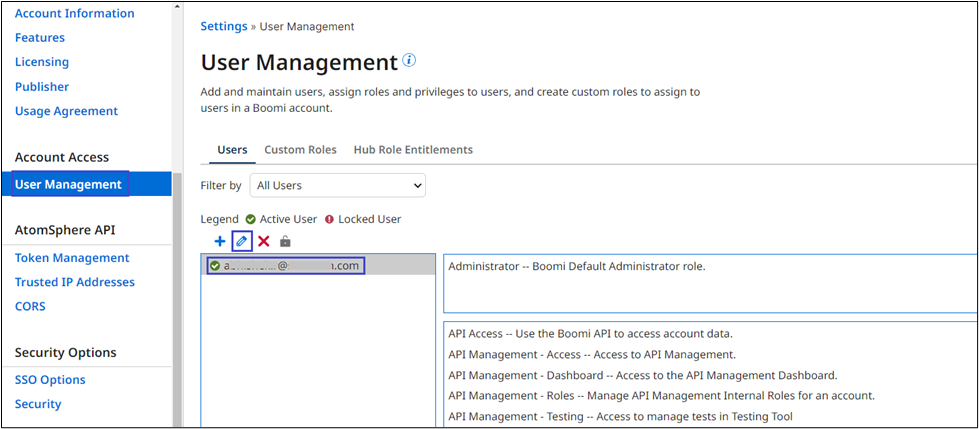

5. Navigate to Account Access > User Management under Settings, select the user, and click the edit icon.
6. Enter User e-mail address as Federation ID and click OK.

Notes:

1. To convert the PEM file to a CRT file, follow these steps:
   1. Install the latest version of OpenSSL for Windows.
   2. Open the Windows Command Line.
   3. Navigate to the file path where the file downloaded from the RSA platform is located.
   4. Run the following command: openssl x509 -outform der -in your-cert.pem -out your-cert.crt
   5. Replace your-cert.pem with the name of the file downloaded from the RSA platform.

The configuration is complete.
