Box - SAML Relying Party Configuration - RSA Ready Implementation Guide
Last Modified: 2024-06-05
Configure RSA Cloud Authentication Service
Perform these steps to configure RSA Cloud Authentication Service as Relying Party to Box.Procedure
- Sign in to the RSA Cloud Administration Console.

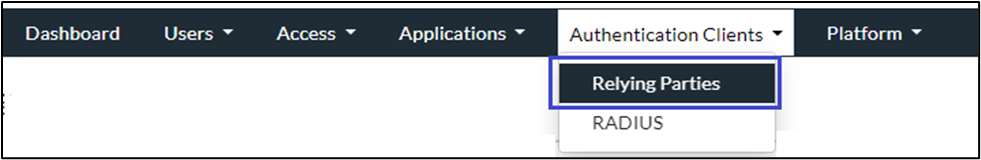

- Navigate to the Authentication Clients menu, and from the dropdown, select Relying Parties.

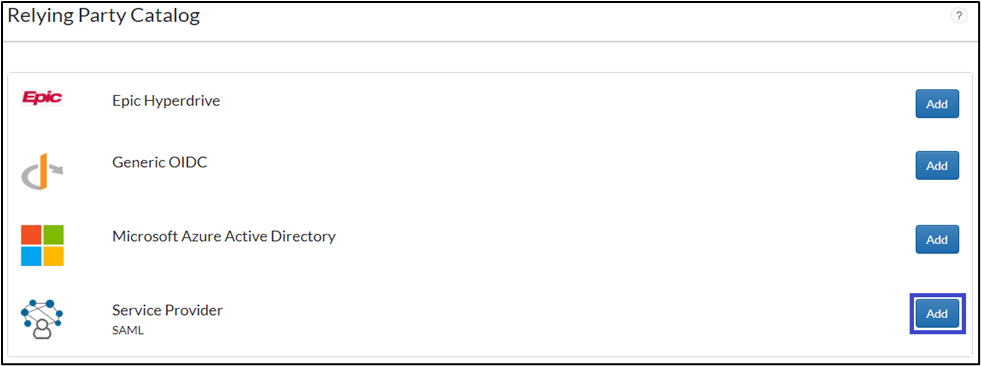

- In the Relying Party Catalog, select Add a Relying Party and click Add for Service Provider SAML.

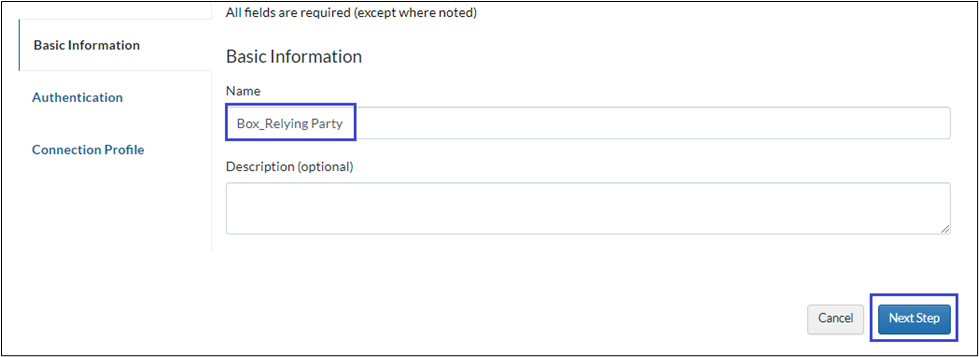

- On the Basic Information page, enter a name for the application in the Name field and click Next Step.

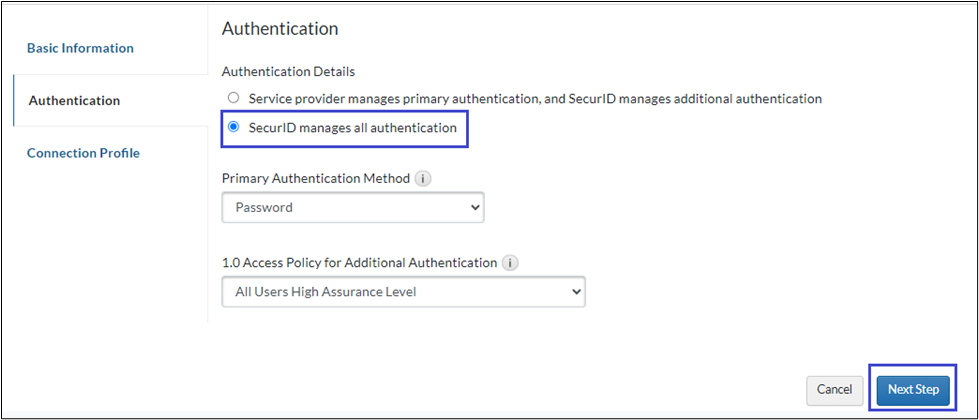

- In the Authentication tab, select SecurID manages all authentication.
- Select the Primary Authentication Method and Access Policy for Additional Authentication as required and click Next Step.

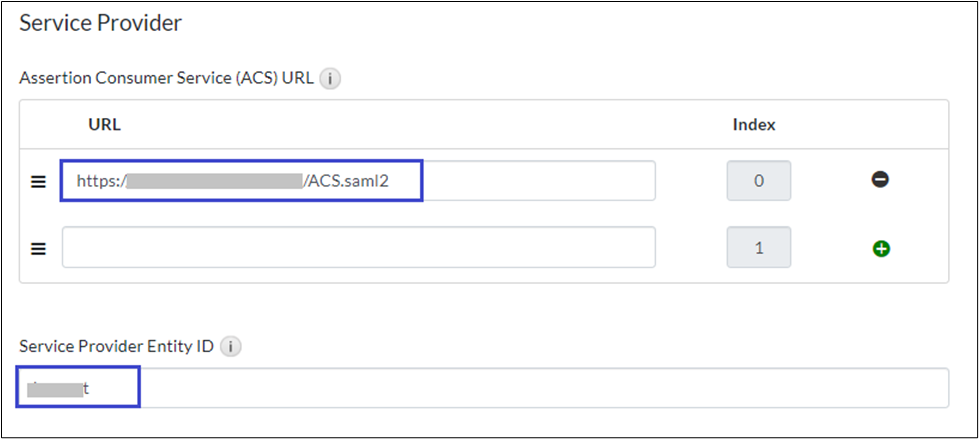

- Provide the Service Provider details in the following format:
- Assertion Consumer Service (ACS) URL: <https://sso.services.box.net/sp/ACS.saml2>
- Service Provider Entity ID: <box.net>
Refer to Box Documentation to obtain, Assertion Consumer Service (ACS) URL and Service Provider Entity ID.

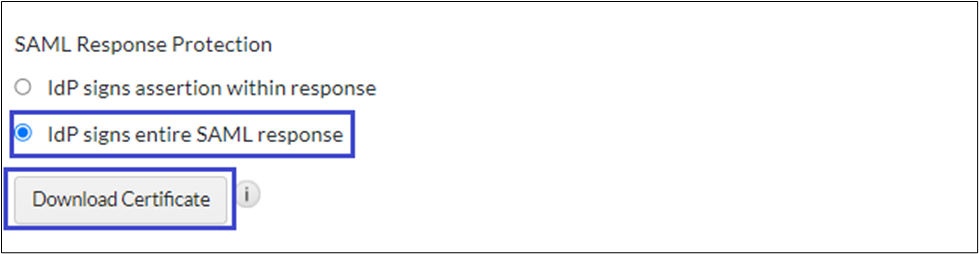

- In the SAML Response Protection section, select IdP signs entire SAML response, and download the certificate by clicking Download Certificate.

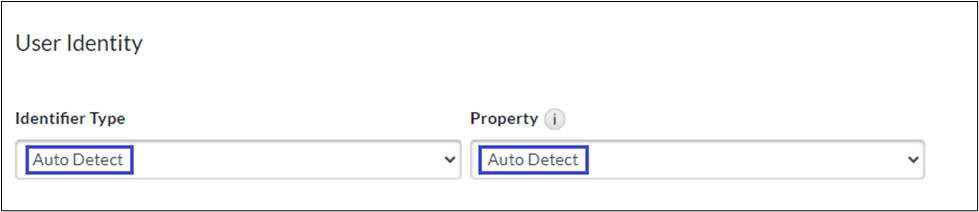

- Under the User Identity section, select Show Advanced Configuration, then configure Identifier Type and Property as follows:
- Identifier Type: Auto Detect
- Property: Auto Detect

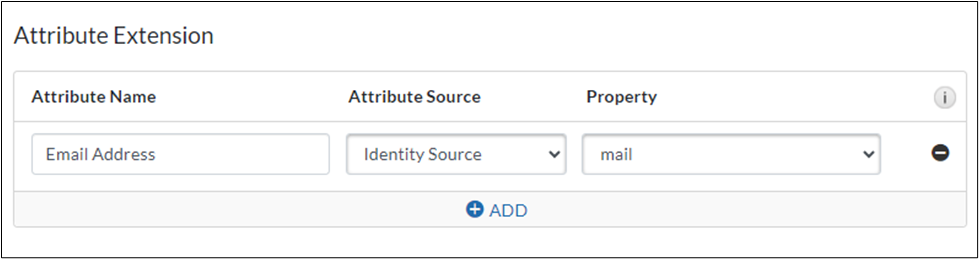

- Under the Attribute Extension section, add the attributes as shown in the following figure.
- Click Save and Finish.

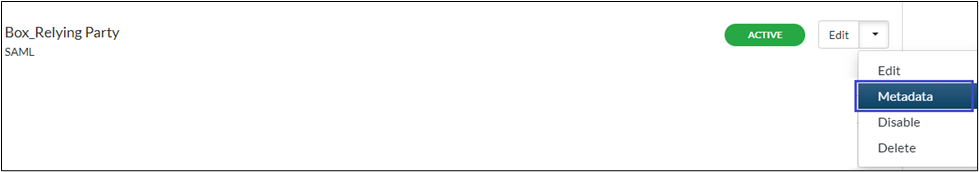

- On the My Relying Parties page, click Edit dropdown and select Metadata option to download the metadata.

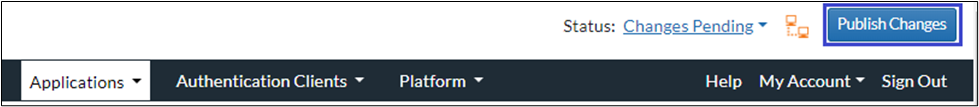

- Click Publish Changes to save your settings. After publishing, your application will be enabled for SSO.
Configure Box
Perform these steps to configure Box.Procedure
To enable SSO for your Enterprise Box.net account, follow these steps;
- Ensure you have an Enterprise Box.net account.
- Submit a support ticket with your metadata file to request SSO enablement. Please allow 3 - 5 business days for the SSO feature to be added.
Return to Box - RSA Ready Implementation Guide
