Cincopa - SAML SSO Agent Configuration - RSA Ready SecurID Access Implementation Guide

This section describes how to integrate RSA SecurID Access with Cincopa using a SAML SSO Agent.

Architecture Diagram

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service as an SSO Agent SAML IdP to Cincopa.

Procedure

1. Sign into the RSA Cloud Administration Console and browse to Applications > Application Catalog.

2. Click on Create From Template found in he upper right of the page then select SAML Direct.

3. On Basic Information page enter a Name for the application, ie. Cincopa Then click on Next Step.

4. On Connection Profile page.

   1. In Connection URL field, verify the default setting.

   2. Choose IDP-Initiated or SP-Initiated.

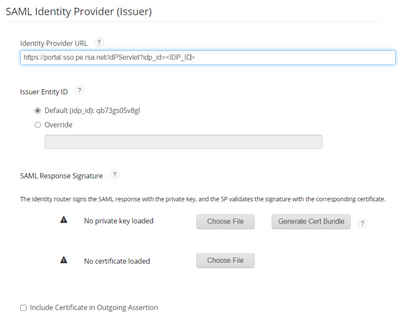

   1. Scroll down to SAML Identity Provider (Issuer) section.

   2. Note the Identity Provider URL and Issuer Entity ID. These values are automatically generated. They may be needed later for the configuration of Cincopa.

   3. Click on Generate Cert Bundle, set a a common name for your company certificate. Then click Generate and Download .

   4. Select Choose File and upload the private key from the generated certificate bundle.

   5. Select Choose File and upload the cert from the generated certificate bundle.

   6. Select Include Certificate on Outgoing Assertion.



   1. Scroll down to Service Provider section.

   2. Enter the Assertion Consumer Service (ACS) This is the REPLY (ACS) URL found in your instance of Cincopa . For example https://jz7hre9x8k.execute-api.us-east-1.amazonaws.com/prod/sp/acs?connection=A8NAxaBQCzSq.

   3. Enter the Audience (Service Provider Issuer ID) This is the Cincopa EntityID found in your instance of Cincopa. For example https://jz7hre9x8k.execute-api.us-east-1.amazonaws.com/prod/sp/metadata.

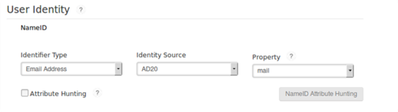

   4. Scroll down to User Identity section.

   5. Ensure Identifier Type = unspecified, set your Identity Source and Property = mail.

   1. Expand Show Advanced Configuration .

   2. In Attribute Extension section click +ADD.

   3. Add Attribute Name = "email" and Property = mail.

   4. Click Next Step

5. On User Access page select the Access Policy you require. Allow All Authenticated Users is the least restrictive. Click Next Step

1. On Portal Display Page

   1. Select Display in Portal

   2. Upload an Application Icon if you wish

   3. Set an Application Tooltip if you wish.

   4. Click on Save and Finish

2. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.

1. Browse to Application > My Applications.

2. Locate newly create application for Cincopa.

3. Click on Down Arrow next to Edit button.

4. Select Export Metadata. This will be used below for Cincopa configuration.

Configure Cincopa

Perform these steps to integrate Cincopa with RSA SecurID Access as a SAML SSO Agent.

Procedure

1. Sign into Cincopa and navigate to the SSO SAML settings page.

2. Note the Cincopa EntityID, this is used above in the RSA CAS configuration. For example, https://Pz7hre9x8k.execute-api.us-east-1.amazonaws.com/prod/sp/metadata.

3. Note the Rely (ACS) URL, this is used above in the RSA CAS configuration. For example, https://Pz7hre9x8k.execute-api.us-east-1.amazonaws.com/prod/sp/acs?connection=A8NAxaBQCzSq.

4. Ensure the checkbox SAML/SSO Enable is checked.

5. For DOMAIN, enter the domain for your SSO. For example, YourCompany.com.

6. For IDP METADATA, select Choose File and up load the RSA CAS IDP Metadata file created above in step 11. Note you could also enter the IDP information manually.

7. Click on Save Settings.



Configuration is complete.

See main page for more certification information.
