ClearSlide - SAML My Page SSO Configuration - RSA Ready Implementation Guide
2 years ago
This article describes how to integrate ClearSlide with RSA Cloud Authentication Service using My Page SSO.

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service using My Page SSO.
Procedure
  1. Enable My Page SSO by accessing the RSA Cloud Administration Console > Access > My Page > Single Sign-On (SSO). Ensure it is enabled and protected using two-factor authentication - Password and Access Policy.                                                                                     image.png

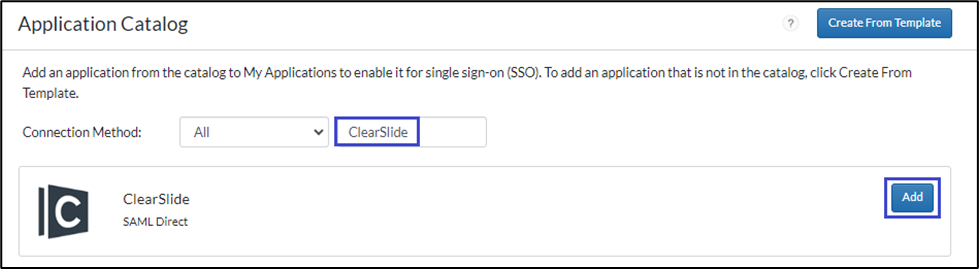

  2. On the Applications > Application Catalog page, search for ClearSlide and click Add to Add Connection.                                            image.png

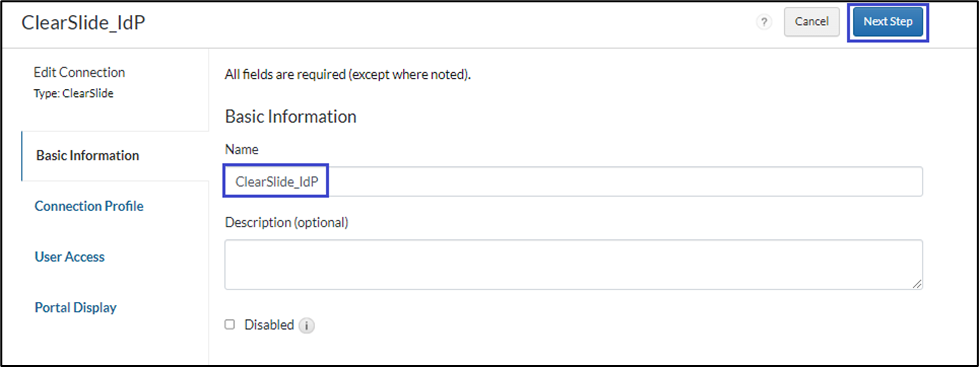

  3. On the Basic Information page, enter a name for the configuration in the Name field and click Next Step.                                                  image.png

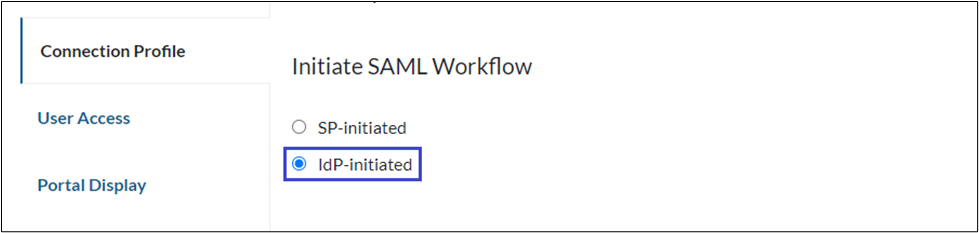

  4. On the Connection Profile page, click the IdP-initiated option.                                                                                                                   image.png

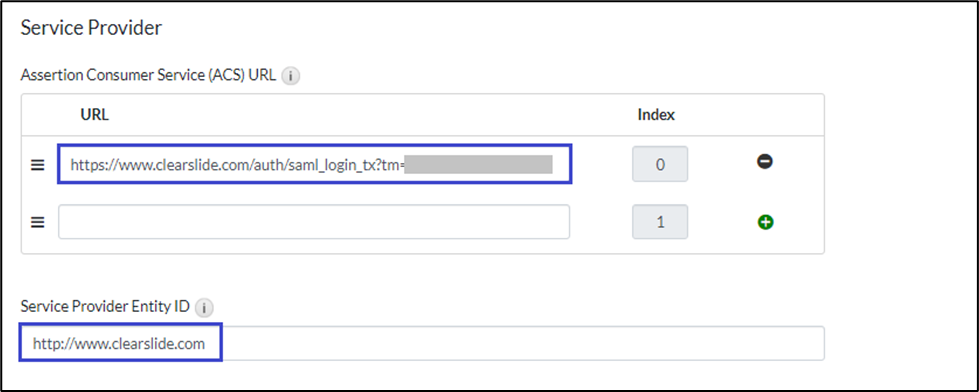

  5. Provide the Service Provider details in the following format:
    1. ACS URL: https://www.clearslide.com/auth/saml_login_tx?tm=<ClearSlide Team ID>.
    2. Service Provider Entity ID: http://www.clearslide.com.
      Refer to the Configure ClearSlide section to obtain ACS URL.                                                                                                         image.png

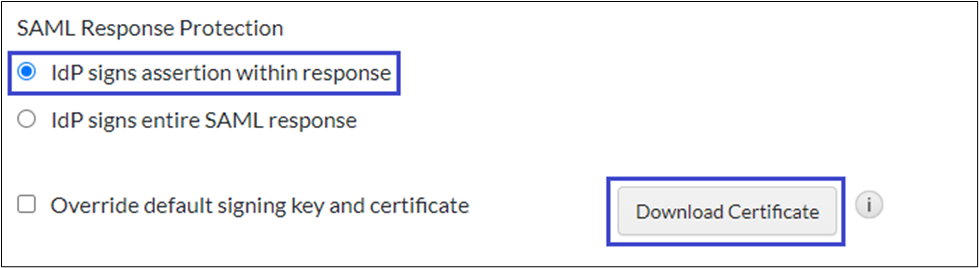

  6. In the SAML Response Protection section, choose IdP signs assertion within response.
  7. Download the certificate by clicking Download Certificate.                                                                                                                            image.png
  8. Click Show Advanced Configuration.

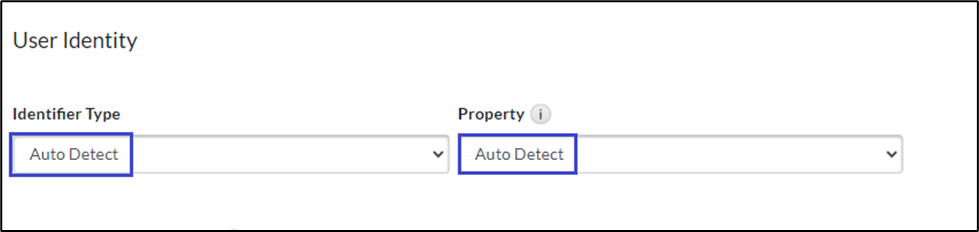

  9. Under the User Identity section, configure Identifier Type and Property. For example, Identifier TypeAuto Detect and PropertyAuto Detect.                                                                                                                                                                image.png
  10. Click Next Step.

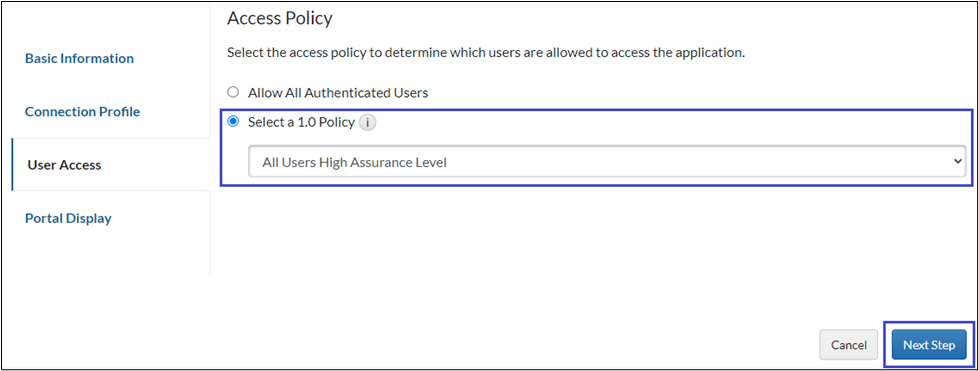

  11. Choose your desired Access Policy for this application and click Next Step > Save and Finish.                                                               image.png

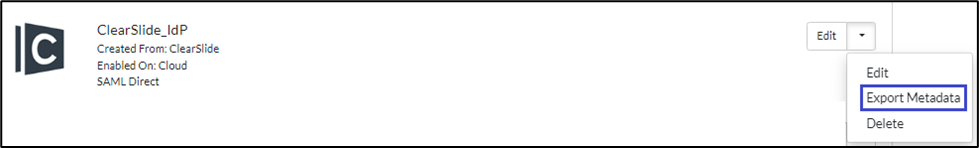

  12. On the My Applications page, click the Edit drop-down icon and select Export Metadata to download the metadata.                          image.png
  13. Click Publish Changes. Your application is now enabled for SSO.                                                                                                                 image.pngimage.png

Configure ClearSlide

Perform these steps to configure ClearSlide.
Procedure
  1. Contact ClearSlide support and request to enable SAML for your account.
  2. Log on to ClearSlide with SAML-enabled credentials - https://www.clearslide.com/auth/login.

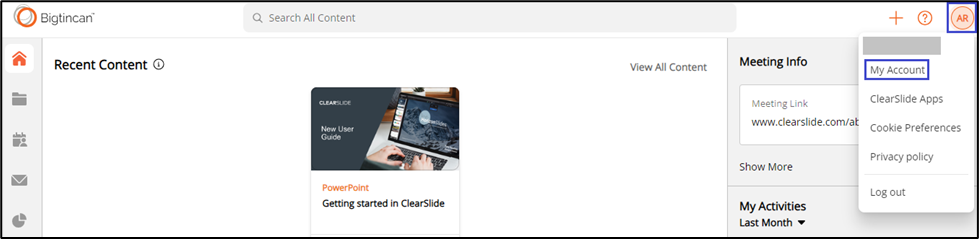

  3. Click your Profile and select My Account.                                                                                                                                                    image.png

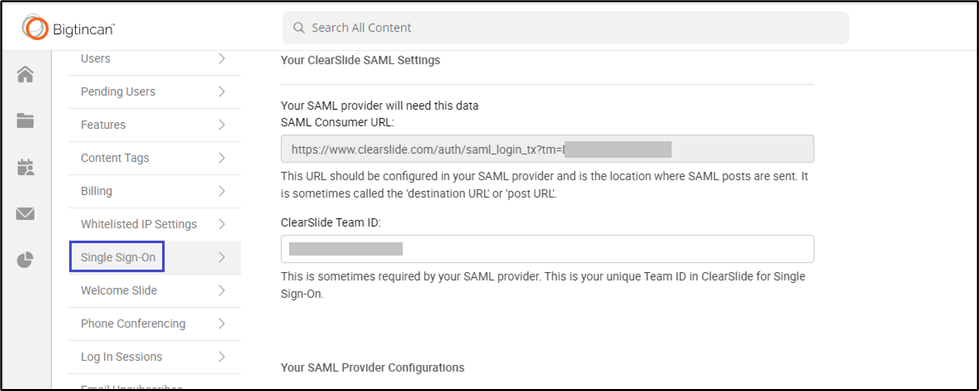

  4. Click Single Sign-On.                                                                                                                                                                                       image.png

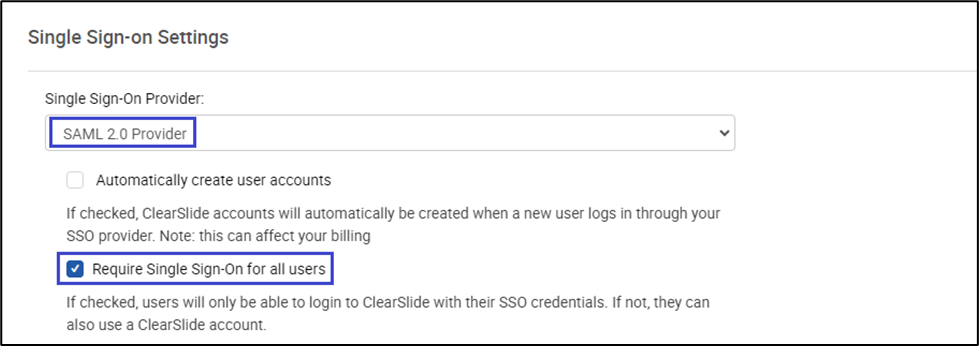

  5. Select SAML 2.0 Provider in the Single Sign-On Provider drop-down list and select the Require Single Sign-On for all users checkbox.                                       image.png
  6. Copy the SAML Consumer URL that can be used as the ACS URL for the RSA configuration.                                           image.png
  7. Scroll down to the Your SAML Provider Configurations section, provide the following details, and click Save:
    1. SAML Provider Endpoint – The SignleSignOnService value that can be obtained from the metadata file downloaded from RSA.
    2. SAML Provider Entity ID - The EntityID value that can be obtained from the metadata file downloaded from RSA.
    3. X.509 Certificate – Copy and paste the certificate downloaded from RSA.                                                           image.png

The configuration is complete.
Return to ClearSlide - RSA Ready Implementation Guide.
