EZOfficeInventory - SAML SSO Agent Configuration - SecurID Access Implementation Guide

This section describes how to integrate SecurID Access with EZOfficeInventory using a SAML SSO Agent.

Architecture Diagram

Configure SecurID Access Cloud Authentication Service

Perform these steps to configure Cloud Authentication Service as an SSO Agent SAML IdP to EZOfficeInventory.

Procedure

1. Sign into the SecurID Access Cloud Administration Console and browse to Applications > Application Catalog.

2. Search for EZOfficeInventory and click on +Add to add the connector.

3. On Basic Information page enter a Name for the application, ie. EZOfficeInventory Then click on Next Step.

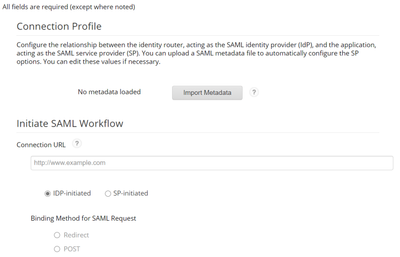

4. On Connection Profile page.

   1. In Connection URL field, verify the default setting.

   2. Choose IDP-Initiated or SP-Initiated.

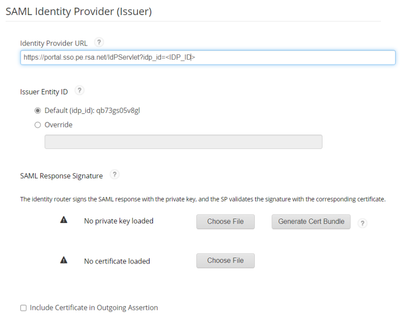

   1. Scroll down to SAML Identity Provider (Issuer) section.

   2. Note the Identity Provider URL and Issuer Entity ID. These values are automatically generated. They may be needed later for the configuration of EZOfficeInventory.

   3. Click on Generate Cert Bundle, set a a common name for your company certificate. Then click Generate and Download .

   4. Select Choose File and upload the private key from the generated certificate bundle.

   5. Select Choose File and upload the cert from the generated certificate bundle.

   6. Select Include Certificate on Outgoing Assertion.

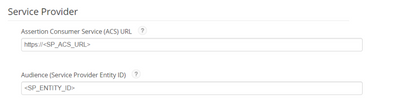

   1. Scroll down to Service Provider section.

   2. Enter the Assertion Consumer Service (ACS) This is the ACS URL based on the domain of your instance of EZOfficeInventory . For example https://<DOMAIN>.ezofficeinventory.com/users/auth/saml/callback.

   3. Enter the Audience (Service Provider Issuer ID) This is https://www.ezofficeinventory.com.

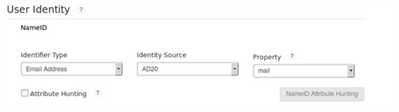

   1. Scroll down to User Identity section.

   2. Ensure Identifier Type = Email Address, set your Identity Source and Property = mail.

   1. Expand Show Advanced Configuration .

   2. In Attribute Extension section click +ADD.

   3. Add Attribute Name = "email" and Property = mail.

   4. In Attribute Extension section click +ADD.

   5. Add Attribute Name = "last_name" and Property = sn.

   6. In Attribute Extension section click +ADD.

   7. Add Attribute Name = "first_name" and Property = givenName.

   8. Note that the property values may differ in your configuration.

   9. Click Next Step

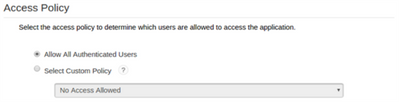

5. On User Access page select the Access Policy you require. Allow All Authenticated Users is the least restrictive. Click Next Step

1. On Portal Display Page

   1. Select Display in Portal

   2. Upload an Application Icon if you wish

   3. Set an Application Tooltip if you wish.

   4. Click on Save and Finish

2. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.

Configure EZOfficeInventory

Perform these steps to integrate EZOfficeInventory with SecurID Access as a SAML SSO Agent.

Procedure

1. Sign into EZOfficeInventory and browse to Username > Settings.

2. Click on  Add Ons tab.

3. Scroll down to SAML Integration section and select Enabled.

4. For Identity Provider URL, enter the Identity Provider URL from the SecurID Access CAS configuration above. For example, https://pe0111.pe.rsa.net/IdPServlet?idp_id=1vip1rnbnmwj1o.

5. For the Certificate paste the contents of downloaded certificate (cert.pem) from generated certificate bundle in the CAS configuration above.

6. Click on Update.

Configuration is complete.
