This section describes how to integrate RSA Authentication Manager with Endace EndaceProbe with OSm using REST-based authentication agent.
Endace EndaceProbe with OSm Configuration
Configuring an Endace Appliance OSm to use RSA SecurID utilizes (see Figure 1) an LDAP server (AD Server) to provide authorization and RSA Authentication Manager (AM) for authentication using PIN and OTP as login password.

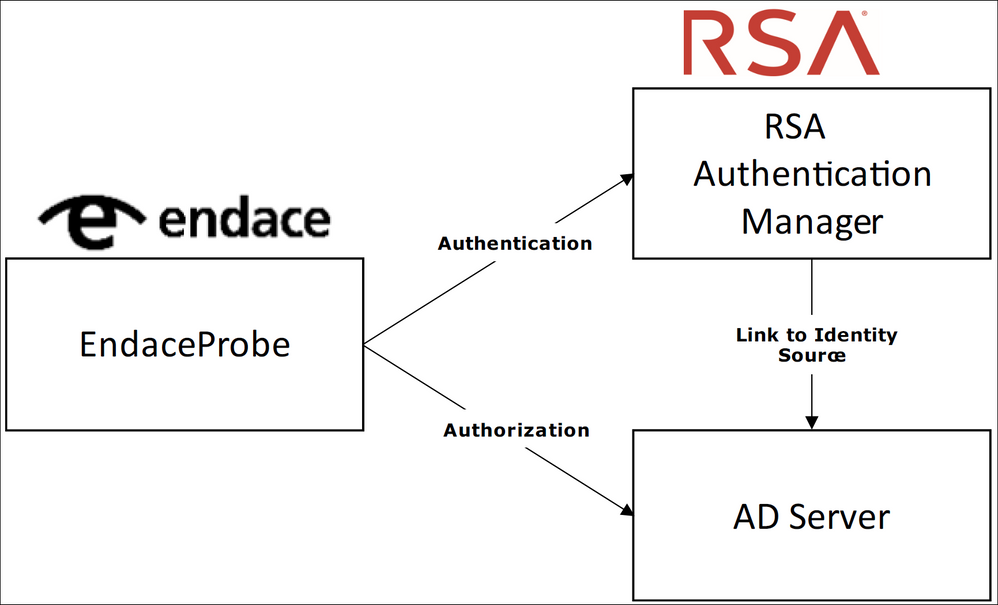

Figure 1. EndaceProbe, RSA SecurID AM and LDAP Connectivity
EndaceProbe can be connected to the RSA SecureID server by providing the following details in the OSm RSA SecurID configuration page.
| Parameter | Details |
| RSA SecureID Server name | The name that OSm uses to reference the RSA Authentication Manager |
| Enabled | Enable or disable the Authentication Manager server |
| Hostname | FQDN or IP address of the Authentication Manager server |
| Port | TCP port to connect to the Authentication Manager server |
| URL (Optional) | Configure an HTTPS address to connect to the Authentication Manager server (Overrides Hostname and Port) |
| Access Key | Set the shared access key to connect to the Authentication Manager server |
| SSL Certification Verification | Enable or disable SSL certification verification for HTTPS access |
For more details, refer to EDM09-163 EndaceProbe Administration Guide available from the Endace Support Portal.

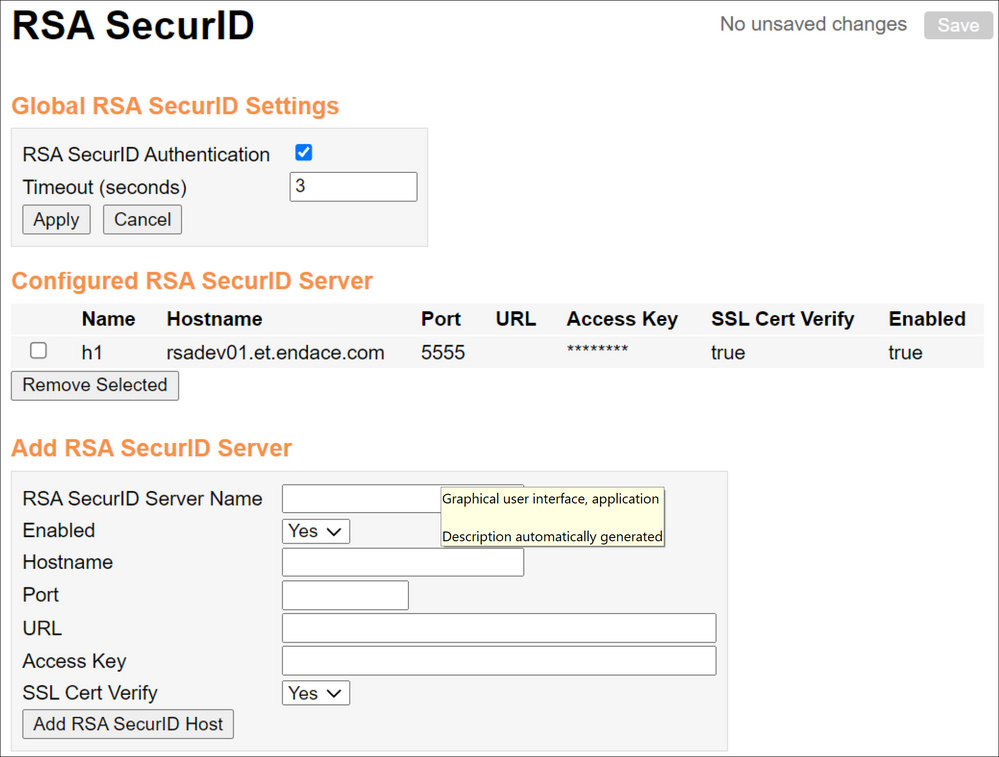

Figure 2. RSA SecurID Server Setup in Endace OSm - Configuration Screen Example
