This article describes how to integrate Flatter Files with RSA Cloud Authentication Service using My Page SSO.

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service using My Page SSO.
Procedure
  1. Sign in to the RSA Cloud Administration Console with administrator credentials.
  2. Enable SSO on the My Page portal by accessing the RSA Cloud Administration Console > Access My Page > Single Sign-On (SSO). Ensure it is enabled and protected by two-factor authentication using a Password and Access Policy.image.png

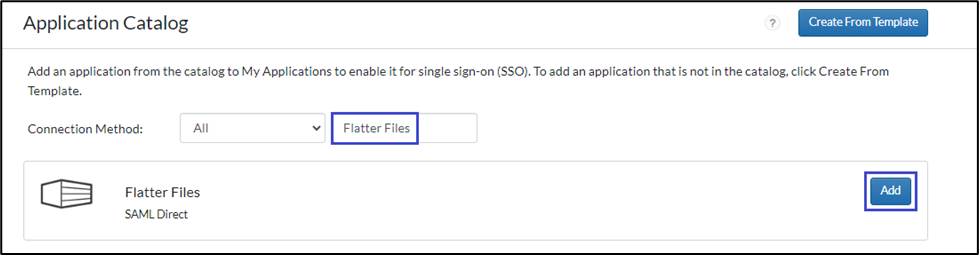

  3. On the Applications > Application Catalog page, search for Flatter Files and click Add to add connection.image.png

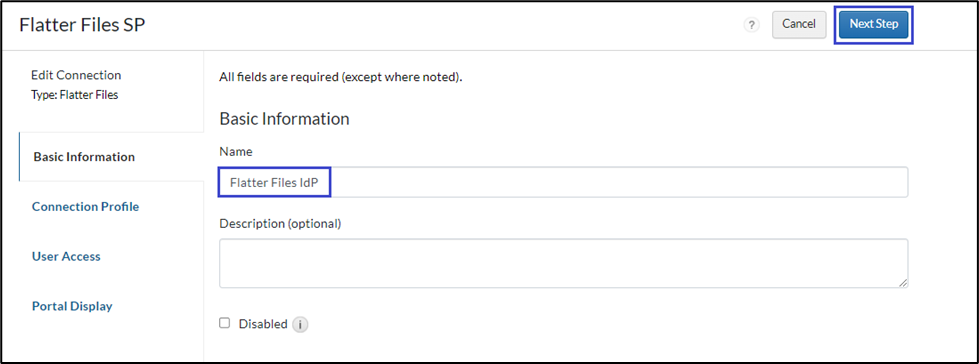

  4. On the Basic Information page, enter a name for the configuration in the Name field and click Next Step.image.png

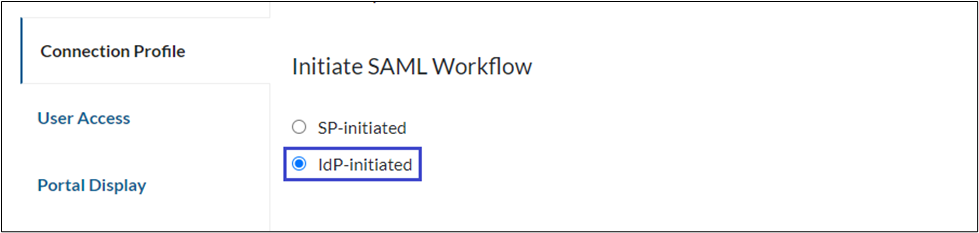

  5. In the Connection Profile section, select IdP-initiated option.image.png

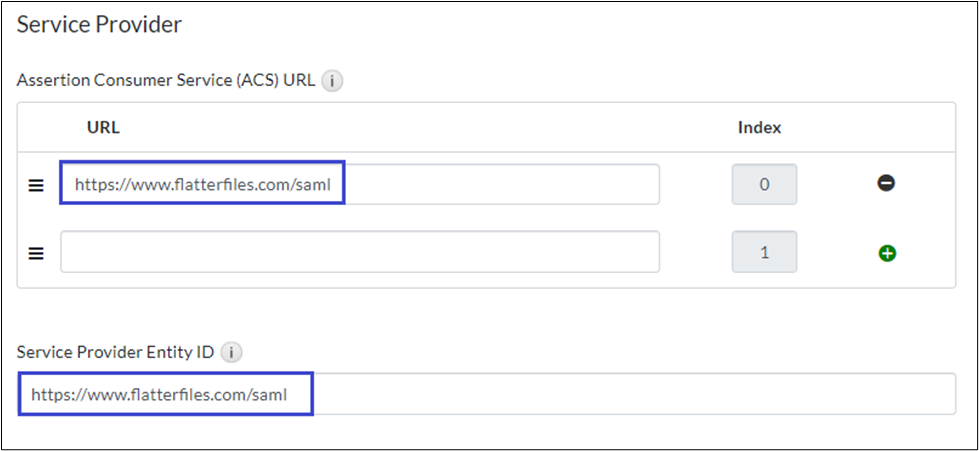

  6. Provide the Service Provider details in the following format:
    1. Assertion Consumer Service (ACS) URLhttps://www.flatterfiles.com/saml.
    2. Service Provider Entity IDhttps://www.flatterfiles.com/saml.

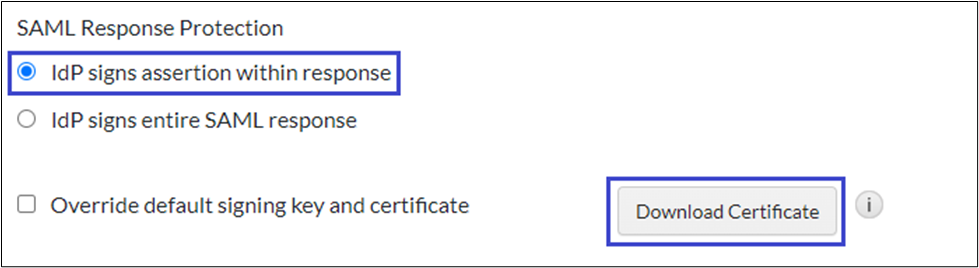

  1. In the SAML Response Protection section, select IdP signs assertion within response, and download the certificate by clicking Download Certificate.image.png
  2. Under the User Identity section, select Show Advanced Configuration, then configure Identifier Type and Property as follows:
    1. Identifier Type: Auto Detect
    2. Property: Auto Detect
  1. Click Next Step.

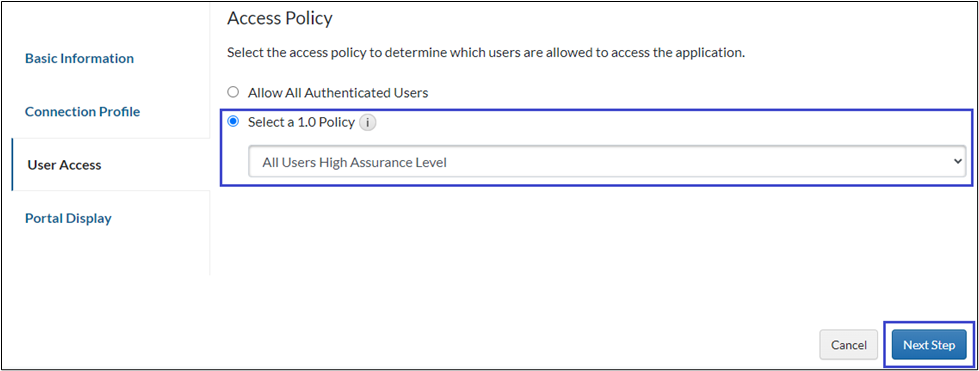

  2. Choose your desired Access Policy for this application and click Next Step > Save and Finish.image.png

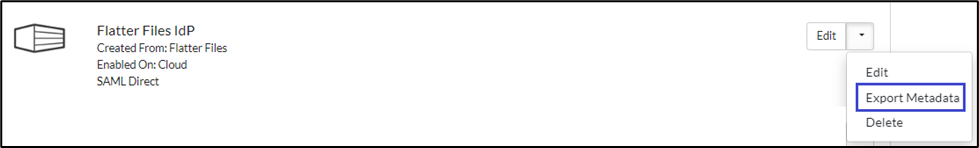

  3. On the My Applications page, click the Edit dropdown and select Export Metadata to download the metadata.image.png
  4. Click Publish Changes to save your settings. After publishing, your application will be enabled for SSO.image.pngimage.png

Configure Flatter Files

Perform these steps to configure Flatter Files.
Procedure
  1. Log in to Flatter Files with admin credentials: https://www.flatterfiles.com/site/login/

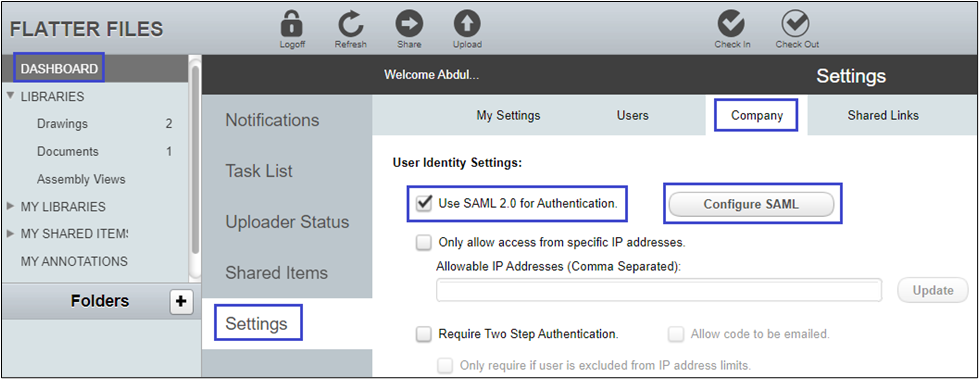

  2. Navigate to Dashboard > Settings > Company, select the Use SAML 2.0 for Authentication checkbox, and click Configure SAML.image.png

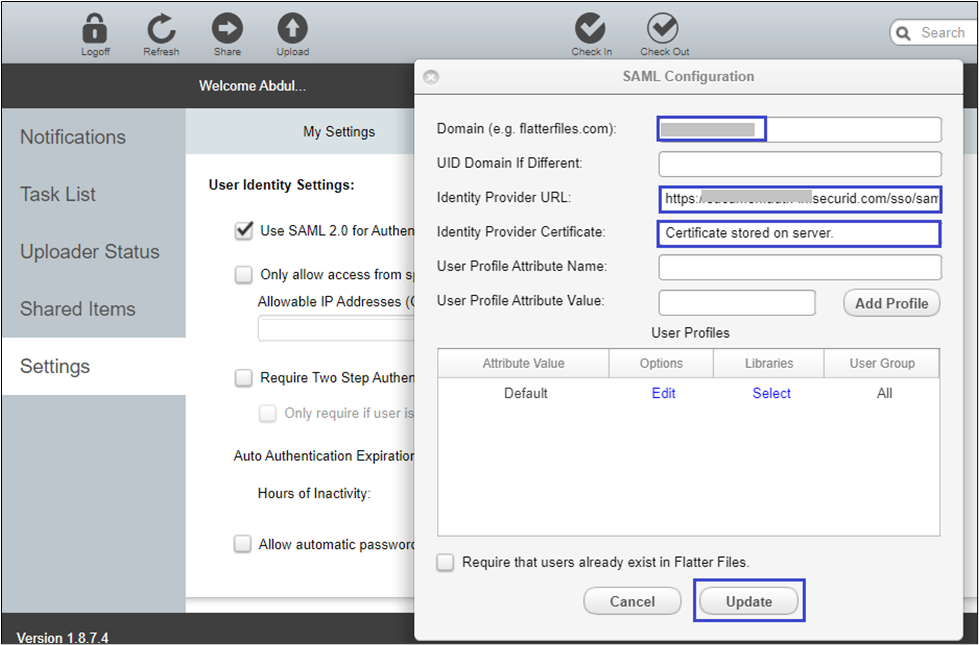

  3. Provide the following details and click Update:
    1. Domain: Enter your domain (eg., example.com). Users from this domain will be authenticated via the RSA platform.
    2. Identity Provider URL: The value of SingleSignOnService, obtainable from the metadata file downloaded from the RSA platform.
    3. Identity Provider Certificate: Copy and paste the certificate downloaded from the RSA platform.

The configuration is complete.
