FortiManager 7.2.1 - SAML IDR SSO Configuration RSA Ready Implementation Guide
Originally Published: 2023-03-24
Last Modified: 2023-11-17
This section describes how to integrate FortiManager with RSA Cloud Authentication Service using IDR SSO.
Procedure
- Sign into the RSA Cloud Console, and go to Applications > Application Catalog > Create From Template > SAML Direct.

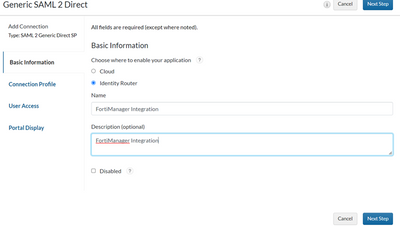

- Select Identity Router in the Choose where to enable your application section and select Next Step.

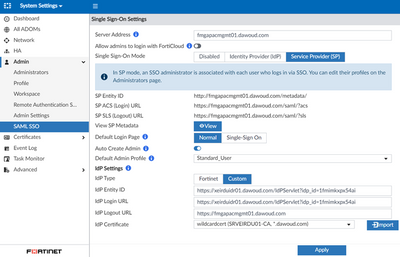

- Go to FortiManager System settings > Admin > SAML SSO and select Service Provider (SP) tab as Sinlge Sign-On Mode.
- Under IdP Settings section, select Custom tab, then fill in the IdP Entity ID and IdP Login URL from the Identity Provider URL found from the Application > Connection Profile that was done in the previous step.

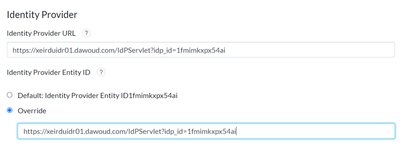

Note: You must Override the Identity Provider URL from RSA Cloud to be the full URL instead of the Identity String for it to work - You can choose to automatically create a new user after successful authentication or not from the Auto Create Admin option on the FortiManager SAML SSO page.

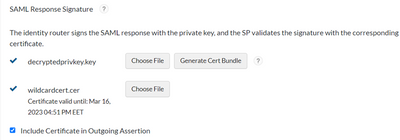

- For the IdP Certificate, choose the certificate file from the RSA Cloud Console, whether you have chosen the default certificate or uploaded a new one, it is to be uploaded here to validate the SAML responses sent from RSA.

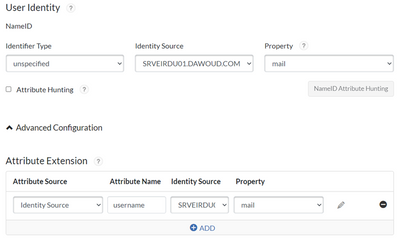

- In the User Identity section, use NameID as unspecified and property as mail. You must send attribute statement for the FortiManager, it should be username and map it to mail.
- Do one of the following:

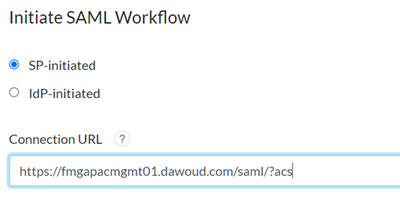

- If you have chosen SP-Initiated flow, ensure at the top of the page that the Connection URL is added as the SP ACS (Login) URL.

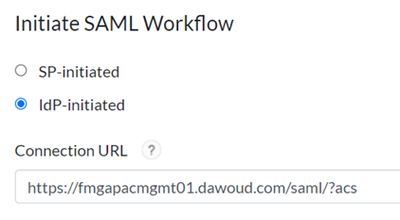

- If you have chosen it to be IdP-Initiated flow, ensure to add this input in the Connection URL parameter at the top of the page.
- If you have chosen SP-Initiated flow, ensure at the top of the page that the Connection URL is added as the SP ACS (Login) URL.
- Select the Show Advance Configuration dropdown and under the User Access page, select your desired policy to be applied.
- Select Next Step > Save and Finish > Publish Changes.

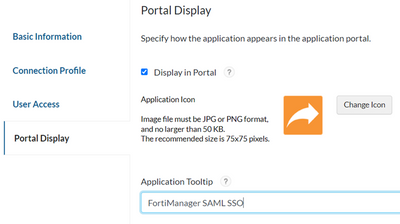

- In the Portal Display page, if needed, select Display in Portal as FortiManager supports IdP initiated SAML SSO.
Configuration is complete.
