This section describes how to integrate Global Protect VPN with RSA Authentication Manager using LDAP + RSA Passcode.

Procedure

To configure authentication profile for Authentication Manager go to this Section, to configure RADIUS for Authentication Manager.

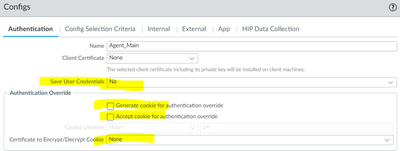

1. Configure the Portal to be LDAP Authentication by going to Network > Global Protect > Portals > Authentication, then choose your LDAP Authentication profile, if you want to always prompt for LDAP + Passcode, then you must not configure any authentication override or save password nor cookies (You can save username). To verify this, go to Global Protect Portal > Agent > Choose the configured Agent.


   Sample LDAP Authentication Profile: (Go to Device > Authentication Profile)

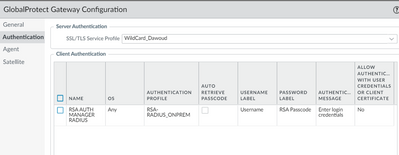

2. Go to Global Protect Gateway > Authentication and Choose the RADIUS profile for the RSA Authentication Manager to prompt for RSA Passcode.


   Sample RSA Authentication Manager RADIUS Profile: (Go to Device > Authentication Profile)


Configuration is complete.

Return to the main page.
