Configure RSA Cloud Authentication Service

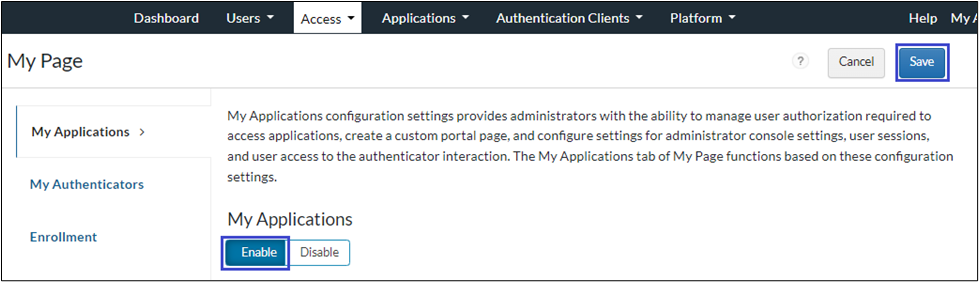

1. Enable My Page SSO by accessing the RSA Cloud Administration Console > Access > My Page > Single Sign-On (SSO). Ensure it is enabled and protected using two-factor authentication - Password and Access Policy.

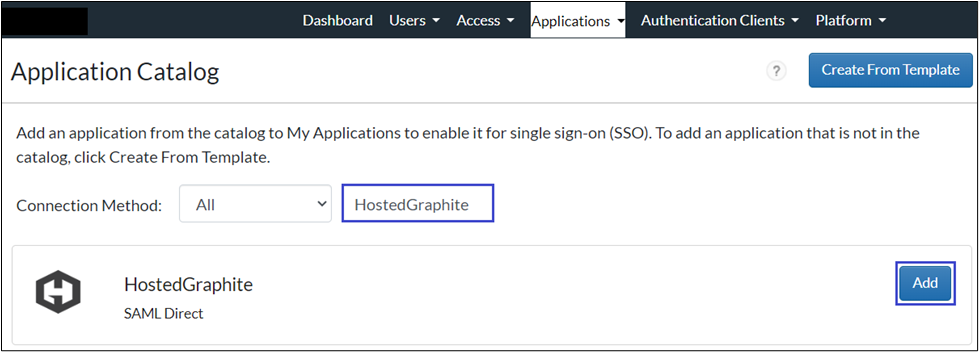

2. On the Applications > Application Catalog page, search for HostedGraphite and click Add to add the connection.

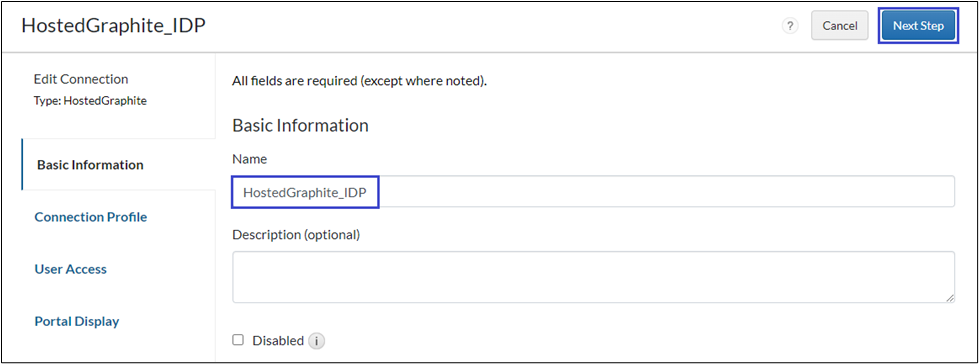

3. On the Basic Information page, enter a name for the configuration in the Name field and click Next Step.
4. On the Connection Profile page, click the IdP-initiated option.

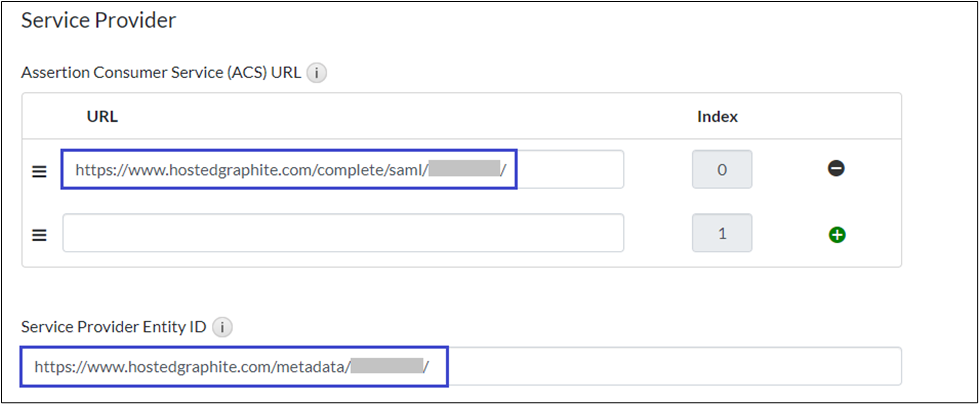

5. Provide the Service Provider details in the following format:
   1. ACS URL: https:  https://www.hostedgraphite.com/complete/saml/<UserID>/
   2. Service Provider Entity ID: https://www.hostedgraphite.com/metadata/<UserID>/
      Refer to the Configure Hosted Graphite section to obtain the UserID.

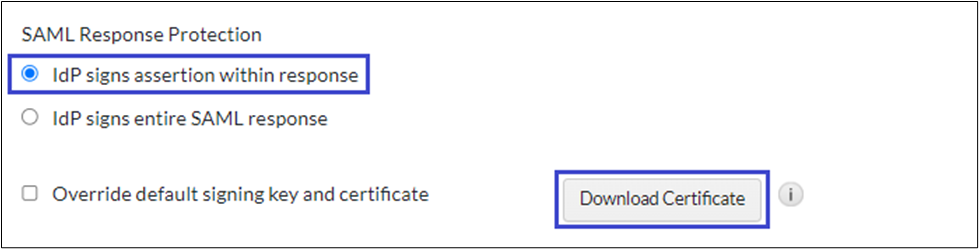

6. In the SAML Response Protection section, choose IdP signs assertion within response.
7. Download the certificate by clicking Download Certificate.
8. Click Show Advanced Configuration.

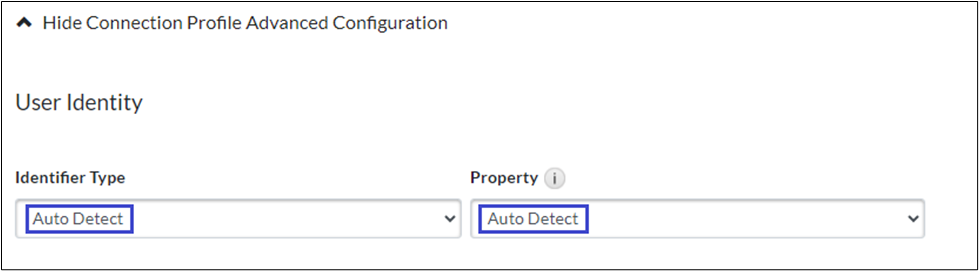

9. Under the User Identity section, configure Identifier Type and Property. For example, Identifier Type: Auto Detect and Property: Auto Detect.

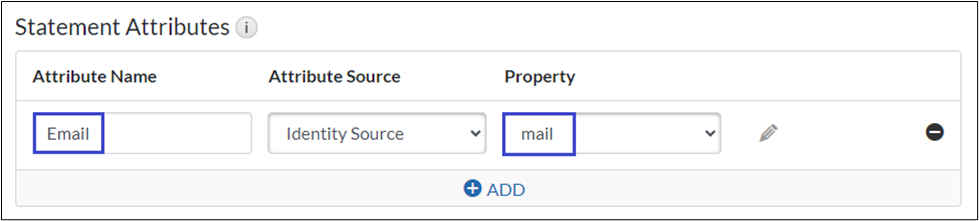

10. Add the Statement Attributes as shown in the following figure.
11. Click Next Step.
12. Choose your desired Access Policy for this application and click Next Step > Save and Finish.

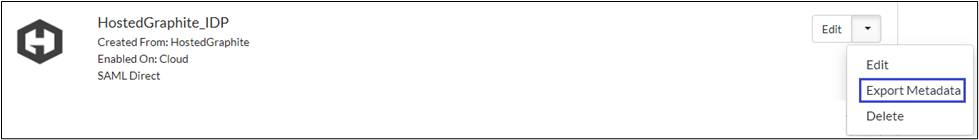

13. On the My Applications page, click the Edit drop-down icon and select Export Metadata to download the metadata.
14. Click Publish Changes. Your application is now enabled for SSO.

Configure Hosted Graphite

1. Log on to Hosted Graphite.

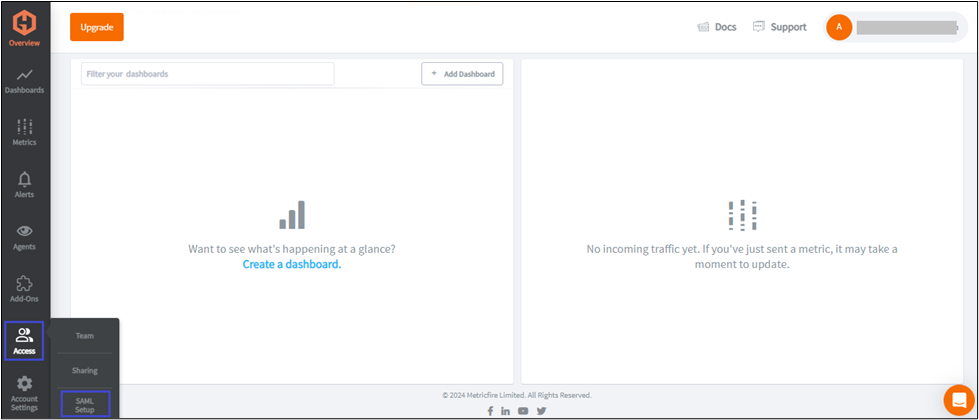

2. Navigate to Access and select SAML Setup.

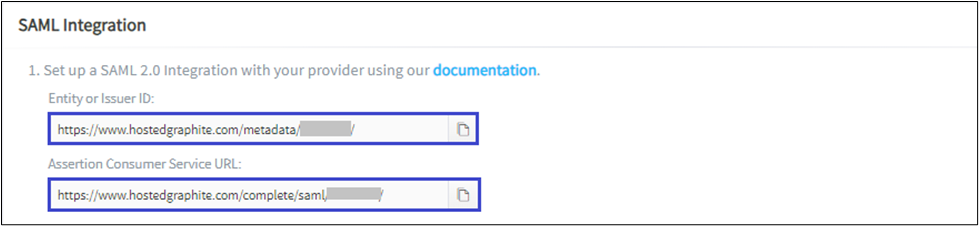

3. Copy the Entity ID and Assertion Consumer Service URL, from which UserID is obtained for Identity Provider configuration.

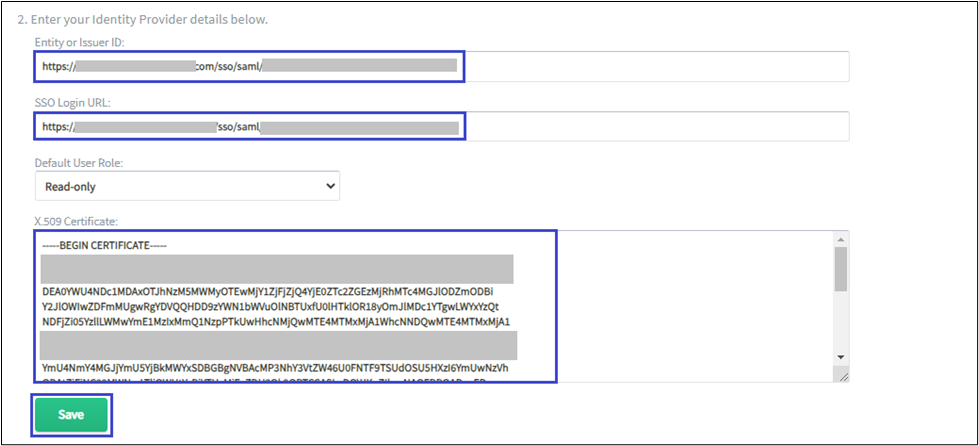

4. Enter Identity Provider details.
   1. Entity or Issuer ID: The Entity ID value that can be obtained from the metadata file downloaded from RSA.
   2. SSO Login URL: The SingleSignOnService value that can be obtained from the metadata file downloaded from RSA.
   3. X509 Certificate: Copy and paste the certificate downloaded from RSA.
   4. Click Save. The following message appears.
