File Downloads

1. Download the hotfix files from RSA Link.  See 000033845 - How to download patch files for RSA Identity Governance and Lifecycle from RSA Link for more information.
2. Download the following files:
   • Aveksa_<VersionNumber>_P<PatchNumber>_HF<>HotfixNumber.tar.gz (e. g., Aveksa_7.0.1_P02_HF02.tar.gz)
   • JDK update for security updates (optional).

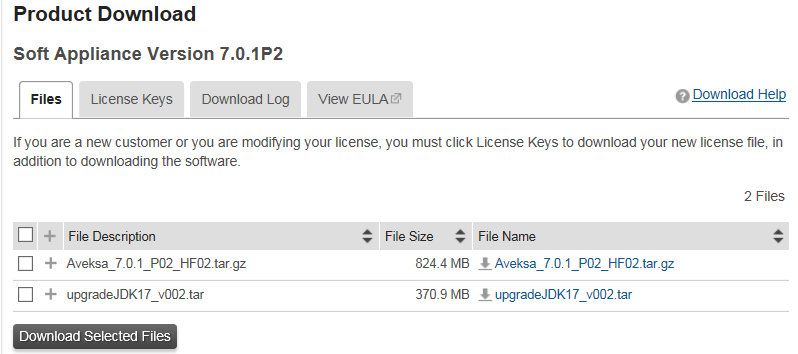

3. For a software appliance (IMG Software Bundle), the 7.0.1 P02_HF02 files are shown below:

Upgrading the JDK (optional)

1. Change to the Oracle directory:

cd /home/oracle

2. Uncompress and untar the file:

tar vxf upgradeJDK.tar

3. Log in as root and run the following commands:

cd /home/oracle/upgradeJDK
chmod 777 *
cd deploy/
chmod 777 *
cd ..
sh upgradeJDK.sh

Shutdown all AFX instances

1. If you have AFX installed, login  with the AFX user account.
2. Shut down all of the AFX instances before installing the patch upgrade:

cd <path-to-AFX_installation-directory>/AFX/
afx stop

3. Check the afx status and make sure all three processes are stopped.

oracle@acm-701:~/AFX> afx status
AFX Server Status: Setting MULE_HOME to /home/oracle/AFX/esb...
INFO: Using default configuration
(you can configure options in one of these file: /etc/default/activemq /home/oracle/.activemqrc)

INFO: Invoke the following command to create a configuration file
/home/oracle/AFX/activemq/bin/activemq setup [ /etc/default/activemq | /home/oracle/.activemqrc ]
INFO: Using java '/etc/alternatives/java_sdk_1.7.0/bin/java'
AcvtiveMQ not running.
----
MULE_HOME is set to /home/oracle/AFX/esb
Mule Enterprise Edition is not running.
----
MMC Console is not running.
done
oracle@acm-701:~/AFX>

Uncompress and untar the hotfix

1. Create a directory named /tmp/aveksa/packages/7.0.1-P02-HF02.
2. Using a secure copy client, copy the hotfix file (i. e., Aveksa_7.0.1_P02_HF02.tar.gz) to /tmp/aveksa/packages/7.0.1-P02-HF02.
3. Login as the oracle user.
4. Navigate to /home/oracle.
5. Extract the contents of the hotfix file.  This will also create a directory named /home/oracle/Aveksa_7.0.1_P02_HF02.
6. Exit the shell.

mkdir /tmp/aveksa/packages/7.0.1-P02-HF02
cd /home/oracle
tar -zxvf /tmp/aveksa/packages/7.0.1-P02-HF02/Aveksa_7.0.1_P02_HF02.tar.gz
exit

Install the hotfix

1. Login as the root user.
2. Navigate to /home/oracle/Aveksa_7.0.1_P02_HF02.
3. Running Il or ls -l will show the files in the directory, as listed below:

​​acm-701:/home/oracle # whoami
root
​​acm-701:/home/oracle # cd Aveksa_7.0.1_P02_HF02
​​acm-701:/home/oracle # ll
total 48
-rw-r--r-- 1 oracle oinstall 12323 Mar  2 05:17 PatchInfo.txt
drwxr-xr-x 5 oracle oinstall  4096 Mar 10 09:08 aveksa.ear
drwxr-xr-x 2 oracle oinstall  4096 Mar 10 09:08 aveksaWFArchitect.ear
drwxrwxrwx 2 oracle oinstall  4096 Mar 10 09:08 deploy
-rw-r--r-- 1 oracle oinstall  4096 Mar  2  05:17 patch.sh
​​acm-701:/home/oracle/Aveksa_7.0.1_P02_HF02 #

4. Run the following command:

​​acm-701:/home/oracle/Aveksa_7.0.1_P02_HF02 # ​sh ./patch.sh
===========================================================================
Begin ACM patch 7.0.1 P02_HF_2 on acm-701
at Fri Mar 10 09:11:59 EST 2017
===========================================================================
Detailed output from this installation can be found in:
/home/oracle/Aveksa_7.0.1_P02_HF02/logs/7.0.1_P02_HF-2_2017-03-10-0911.log

You can view the detailed installation log information while the install
is running by entering the following command in another console:
tail -f /home/oracle/Aveksa_7.0.1_P02_HF02/logs/7.0.1_P02_HF-2_2017-03-10-0911.log

Patch will be overlaid on an archived ear that has/had been deployed already.
The archived ears are in the /home/oracle archive directory
------------------------------------------------
Checking environment. . .
-- Verifying existence of /home/oracle/Aveksa_system.cfg

-- Checking for need to update groovy files from deployment fixes
--- No updates needed for file CustomizeACM.groovy

Preparing to the ear file for deployment at Fri Mar 10 09:11:59 EST 2017
-- Expanding the CURRENTLY deployed ear to filesystem for further checks to apply patch.
Deploying aveksaWFArchitect.ear
-----------------------------------------------------

-----------------------------------------------------
Restarting Application server with newly loaded ear...
Stopping RSA Identity Governance and Lifecycle:
The server has shut down.

Updating System Values...
Verifying database Timezone value ...
Detected change in database Timezone.  Restarting Oracle instance ...
Starting RSA Identity Governance and Lifecycle:
Verifying Oracle and System time match ...
Database : 03-10-2017 09:25:57 -0500 ~ Web : 03-10-2017 09:25:54 -0500
Waiting for RSA Identity Governance and Lifecycle to start.......
RSA Identity Governance and Lifecycle is running

Starting ACM Watchdog: done

-----------------------------------------------------
AFX service found, starting AFX service...
Successful connection detected to RSA Identity Governance and Lifecycle
Starting AFX Server:  Setting MULE_HOME to /home/oracle/AFX/esb...

Checking Aveksa OEM ESB License for AFX...
INFO: Using default configuration

INFO: Using default configuration (you can configure options in one of these file: /etc/default/activemq /home/oracle/.activemqrc)

INFO: Invoke the following command to create a configuration file
/home/oracle/AFX/activemq/bin/activemq setup [ /etc/default/activemq | /home/oracle/.activemqrc ]

INFO: Using java '/etc/alternatives/java_sdk_1.7.0/bin/java'
INFO: Starting - inspect logfiles specified in logging.properties for log4j.properties to get details
INFO: pidfile created : 'home/oracle/AFX/activemq/data/activemq.pid' (pid '17688')
---
MULE_HOME is set to /home/oracle/AFX/esb
Starting Mule Enterprise Edition...
Waiting for AFX application to start...
AFX applications started.
done

===========================================================================
End ACM patch 7.0.1 P02_HF02 on acm-701
at Fri Mar 10 09:28:40 EST 2017
===========================================================================

Confirm the hotfix install

1. Login to the RSA Identity Governance and Lifecycle Admin Console as the AveksaAdmin user.

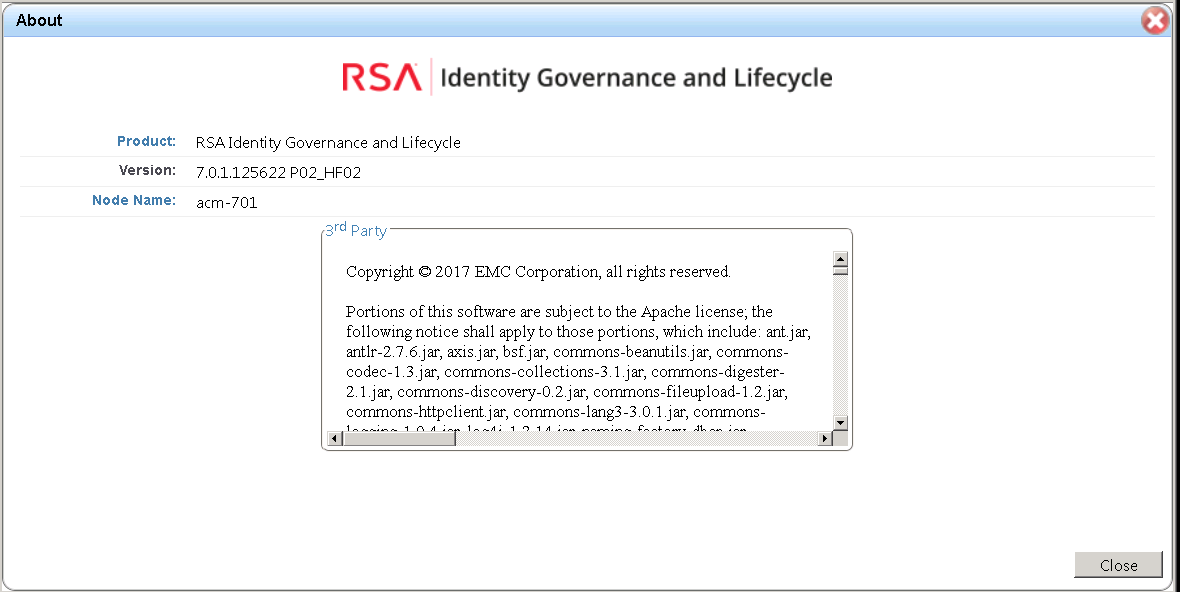

2. Checking Product Information shows the hotfix has just been installed.

• For an appliance with a local, RSA-supplied database, the patch script will stop and start the local database to insure that this requirement is met.
• In a Clustered Environment: If you are running in a clustered environment, only one node must be used during the patch update process. Stop all other nodes in the cluster to avoid multiple nodes attempting a database migration. Validate the patch has been applied and the one node is working as expected before patching other nodes in the cluster or enabling farming to push ear changes to other nodes.
• WebLogic: The patch requires RSA Identity Governance and Lifecycle to be re-deployed. See the RSA Identity Governance and Lifecycle V7.0.1 Installation Guide for instructions.
• WebSphere: The patch requires RSA Identity Governance and Lifecycle to be redeployed. See the Installation Guide for instructions.
• WildFly: The patch contains a deployment script, patch.sh, to install the patch.
• AFX Connectors: If you are running AFX, this patch release includes updated connector packages. You must download and import the packages.
