Hub Planner - SAML SSO Agent Configuration - RSA Ready SecurID Access Implementation Guide

This section describes how to integrate RSA SecurID Access with Hub Planner using a SAML SSO Agent.

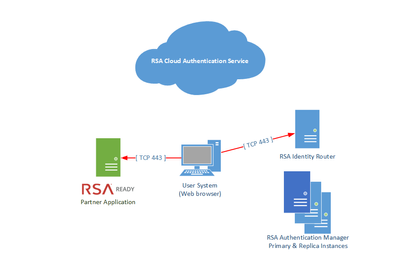

Architecture Diagram

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service as an SSO Agent SAML IdP to Hub Planner.

Procedure

1. Sign into the RSA Cloud Administration Console and browse to Applications > Application Catalog

2. Click on Create From Template found in he upper right of the page then select SAML Direct

3. On Basic Information page enter a Name for the application, ie. Hub Planner Then click on Next Step.

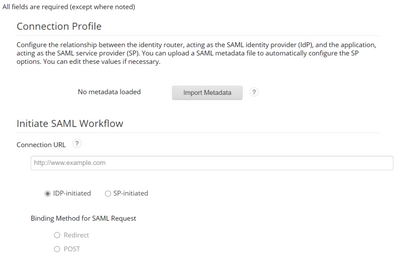

4. On Connection Profile page

   1. In Connection URL field, verify the default setting

   2. Choose IDP-Initiated or SP-Initiated

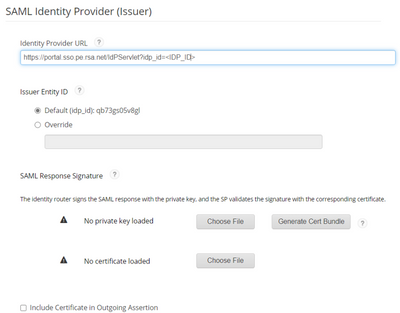

   1. Scroll down to SAML Identity Provider (Issuer) section.

   2. Note the Identity Provider URL and Issuer Entity ID. These values are automatically generated. They may be needed later for the configuration of Hub Planner

   3. Click on Generate Cert Bundle, set a a common name for your company certificate. Then click Generate and Download

   4. Select Choose File and upload the private key from the generated certificate bundle

   5. Select Choose File and upload the cert from the generated certificate bundle

   6. Select Include Certificate on Outgoing Assertion

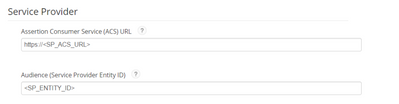

   1. Scroll down to Service Provider section

   2. Enter the Assertion Consumer Service (ACS) this is the URL for your instance of Hub Planner For example https://rsa44.hubplanner.com/resource/group/605063f36b50cb0b63ddaff4

   3. Enter the Audience (Service Provider Issuer ID) this is the domain for for your instance of Hub Planner. For example https://rsa44.hubplanner.com/

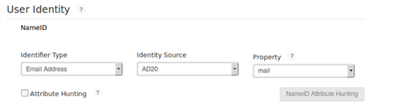

   1. Scroll down to User Identity section

   2. Ensure Identifier Type = Email Address, set your Identity Source and Property = mail




   1. Click Next Step

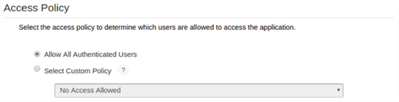

5. On User Access page select the Access Policy you require. Allow All Authenticated Users is the least restrictive. Click Next Step


1. On Portal Display Page

   1. Select Display in Portal

   2. Upload an Application Icon if you wish

   3. Set an Application Tooltip if you wish.

   4. Click on Save and Finish

2. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.


1. Browse to Application > My Applications

2. Locate newly create application for Hub Planner

3. Click on Down Arrow next to Edit button

4. Select Export Metadata. This will be used below for Hub Planner configuration

Configure Hub Planner

Perform these steps to integrate Hub Planner with RSA SecurID Access as a SAML SSO Agent.

Procedure

1. Sign into Hub Planner and browse to Settings > Authentication

2. From SSO Authentication Method select SSO (Single Sign-on)

3. Use the Identity Provider URL obtained from configuration above for the SAML 2.0 Endpoint URL (HTTP). For example, https://portal.sso.pe.rsa.net/IdPServlet?idp_id=18vYYpevospr2

4. use the Identity Provider URL obtained from configuration above for the Identity Provider Issuer.

5. Using the contents of the metadata XML file downloaded above and copy the X.509 certification information between the tags <ds:X509Certificate></ds:X509Certificate> and paste it in the X.509 certificate field.

6. Click on Save



Configuration is complete.

See main page for more certification information.
