Configure RSA Cloud Authentication Service

1. Sign in to the RSA Cloud Administration Console with administrator credentials.

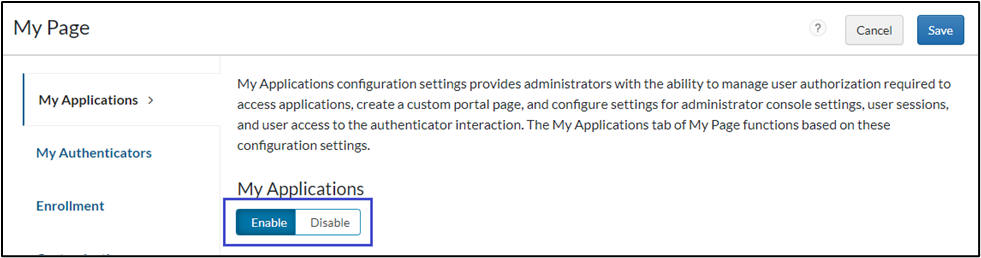

2. Enable SSO on the My Page portal by accessing the RSA Cloud Administration Console > Access > My Page > Single Sign-On (SSO). Ensure it is enabled and protected by two-factor authentication using a Password and Access Policy.

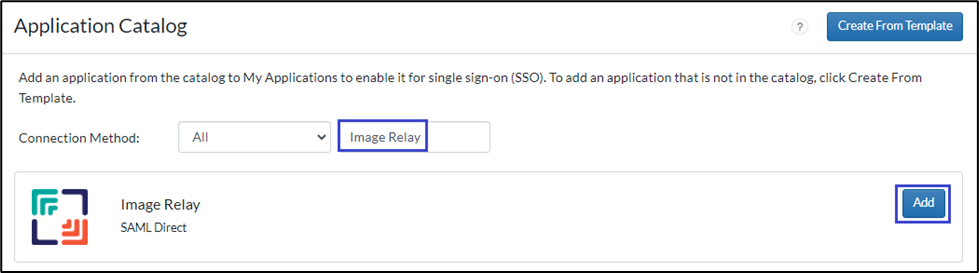

3. On the Applications > Application Catalog page, search for Image Relay and click Add to add connection.

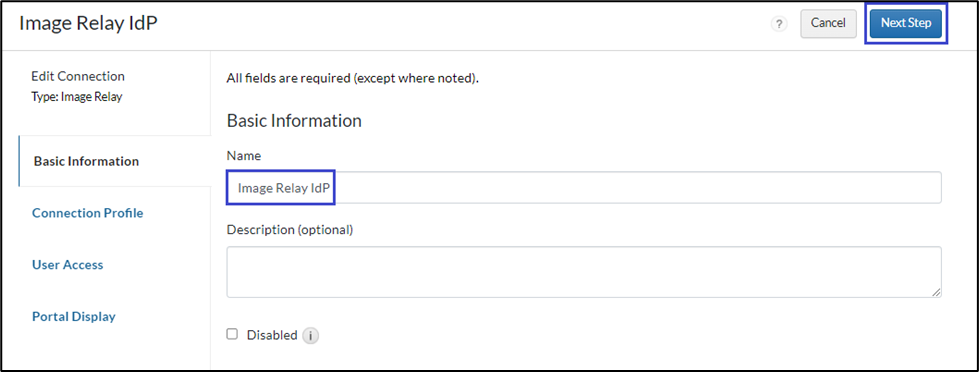

4. On the Basic Information page, enter a name for the configuration in the Name field and click Next Step.

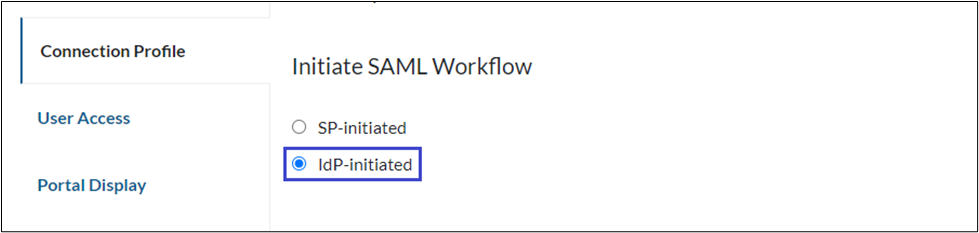

5. In the Connection Profile section, select IdP-initiated option.

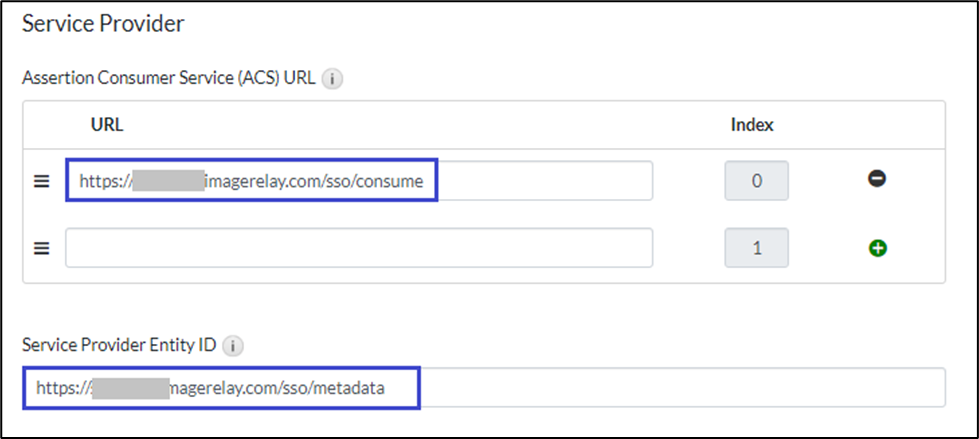

6. Provide the Service Provider details in the following format:
   1. Assertion Consumer Service (ACS) URL: https://<domain>.imagerelay.com/sso/consume
   2. Service Provider Entity ID: https://<domain>.imagerelay.com/sso/metadata

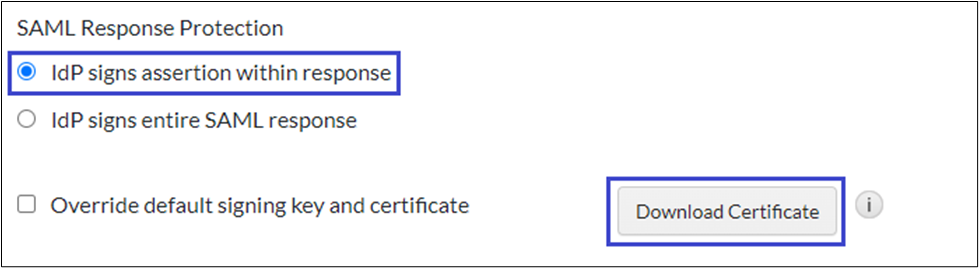

7. In the SAML Response Protection section, select IdP signs assertion within response, and download the certificate by clicking Download Certificate.

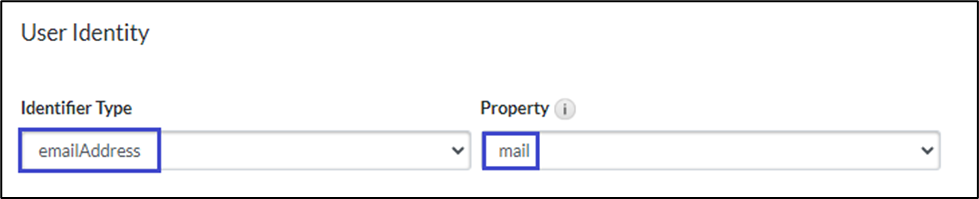

8. Under the User Identity section, select Show Advanced Configuration, then configure Identifier Type and Property as follows:
   1. Identifier Type: emailAddress
   2. Property: mail

9. Click Next Step.

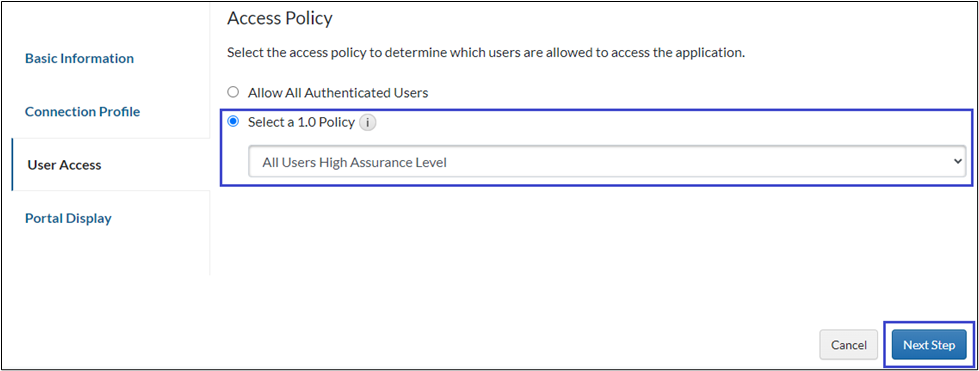

10. Choose your desired Access Policy for this application and click Next Step > Save and Finish.

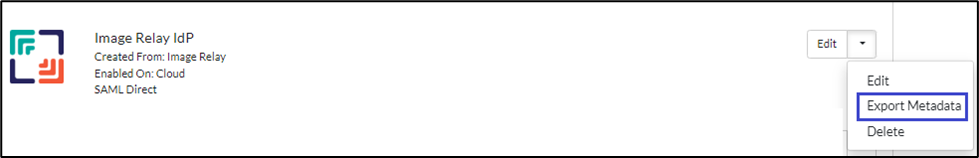

11. On the My Applications page, click the Edit dropdown and select Export Metadata to download the metadata.
12. Click Publish Changes to save your settings. After publishing, your application will be enabled for SSO.

Configure Image Relay

1. Log in to Image Relay using admin credentials.

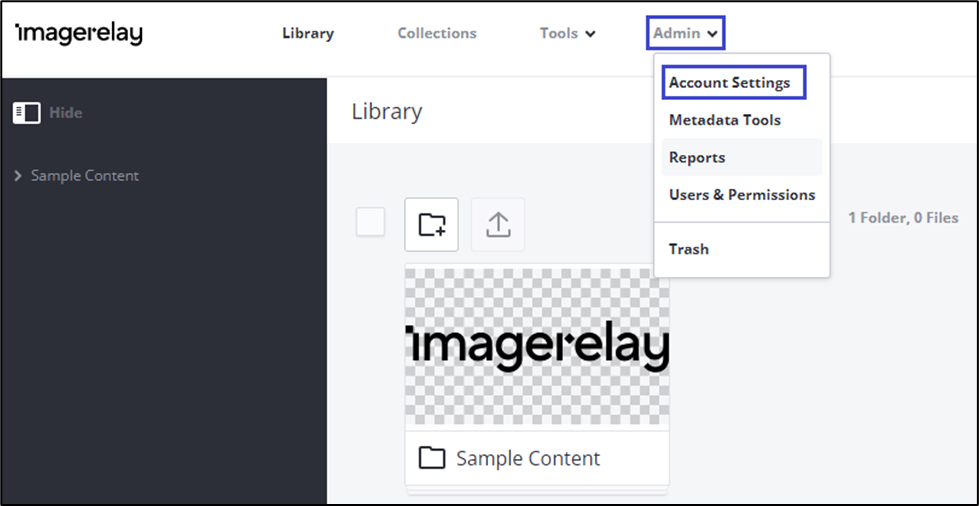

2. Select Account Settings from the Admin dropdown menu.

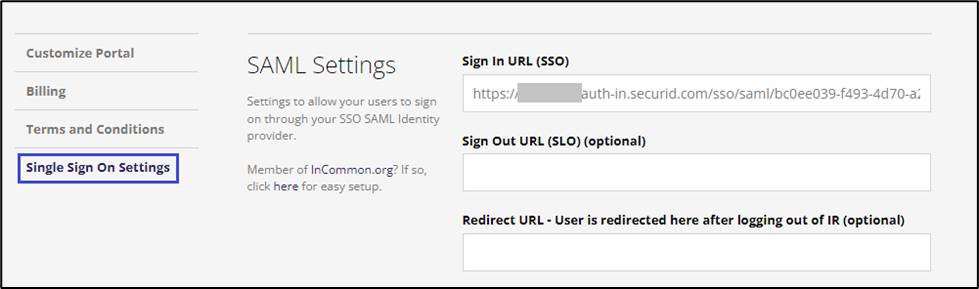

3. Click Single Sign On Settings.

4. Provide the following details:

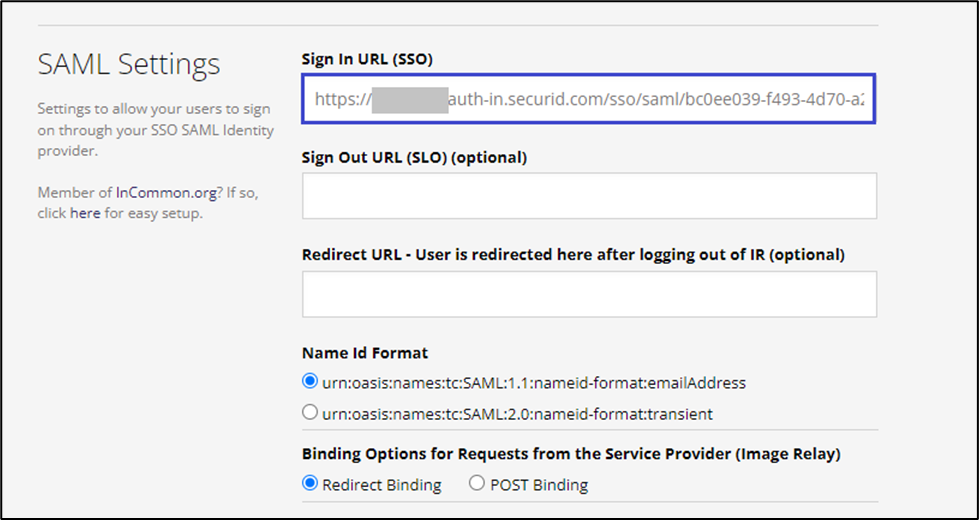

   1. Sign In URL (SSO): Enter the value of SingleSignOnService, which can be obtained from the metadata file downloaded from the RSA platform.

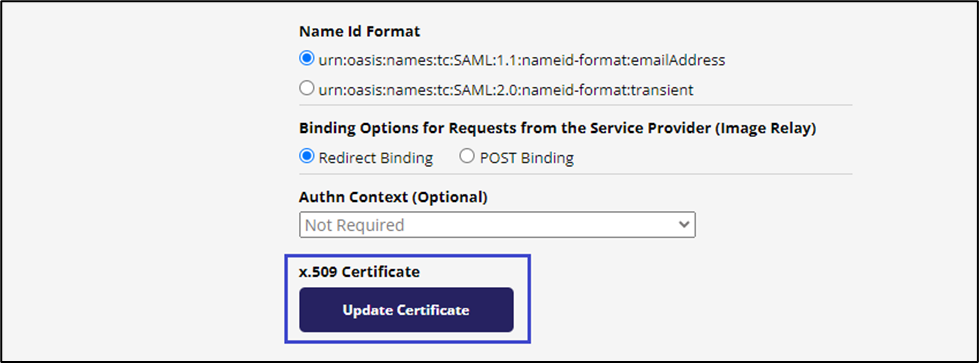

5. Click Update Certificate and upload the certificate downloaded from RSA platform.

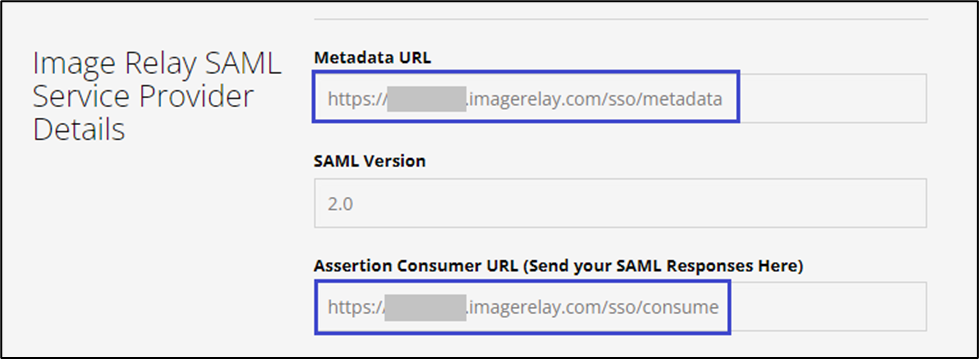

6. Scroll down and copy the Metadata URL and Assertion Consumer URL (Send your SAML Response Here). These URLs will be used to configure the RSA platform as the Service Provider Entity ID and ACS URL.

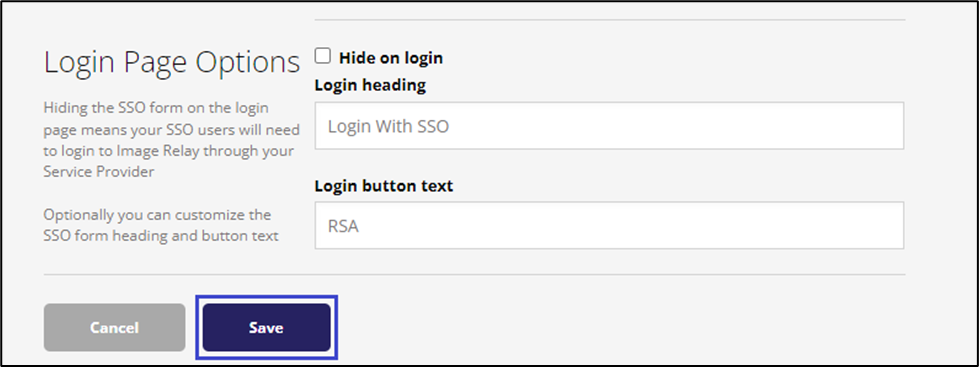

7. Click Save.
