This section describes how to integrate Juniper JunOS vSRX with SecurID Authentication Manager using RADIUS.

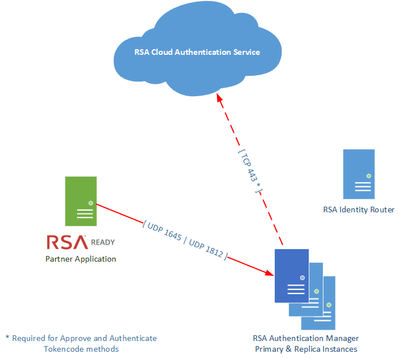

Architecture Diagram

Configure SecurID Authentication Manager

To configure your SecurID Authentication Manager for use with a RADIUS Agent, you must configure a RADIUS client and a corresponding agent host record in the Authentication Manager Security Console.

The relationship of agent host record to RADIUS client in the Authentication Manager can 1 to 1, 1 to many or 1 to all (global).

SecurID Authentication Manager listens on ports UDP 1645 and UDP 1812.

Configure Juniper JunOS vSRX

Perform these steps to configure Juniper JunOS vSRX as a RADIUS client to SecurID Authentication Manager.

Procedure

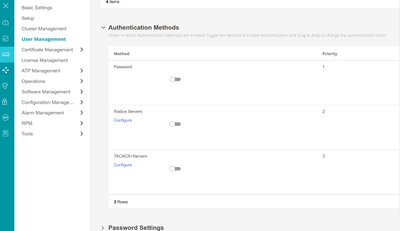

1. Login to J Web console of JunOS vSRX and browse to User Management > Authentication Methods > Radius Servers and click Configure. Once the pop-up window opens click +.

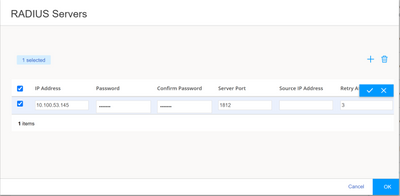

   1. Name –Not Required

   2. RADIUS Server – Enter the IP of SecurID Authentication Manager. In this case it is 10.100.53.145.

   3. Password – Use the shared password as entered in Configure SecurID Authentication Manager.

   4. Confirm Password – Use the shared password as entered in Configure SecurID Authentication Manager.

   5. Server Port – 1812

   6. Authentication Mechanism – Not Required

   7. Retry Attempts – 3



2. Click Ok.

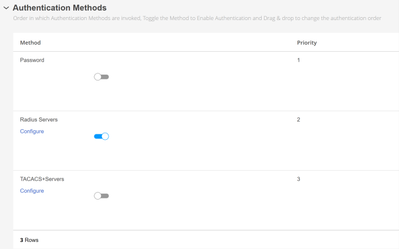

3. Enable Radius Servers.



4. Click Save -> Commit.
