Configure RSA Cloud Authentication Service

1. Sign in to RSA Cloud Administration Console.

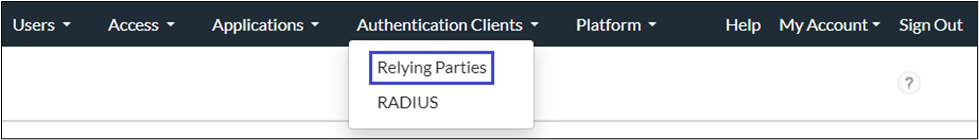

2. Click Authentication Clients > Relying Parties.

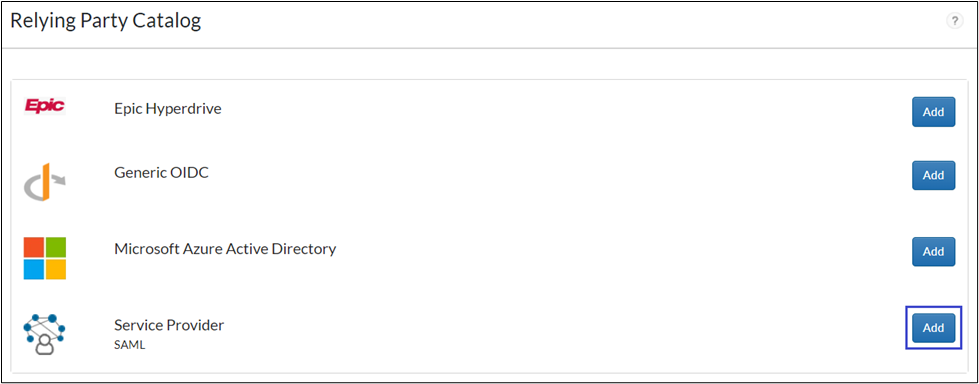

3. On the Relying Party Catalog page, click Add a Relying Party and click Add for Service Provider SAML.

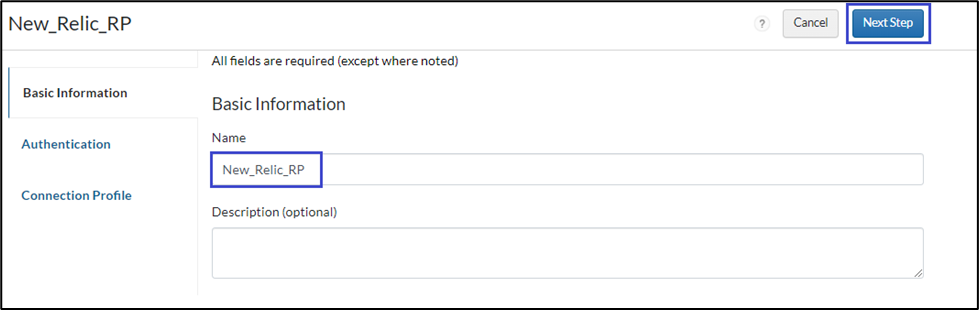

4. On the Basic Information page, enter the name for the application in the Name field and click Next Step.

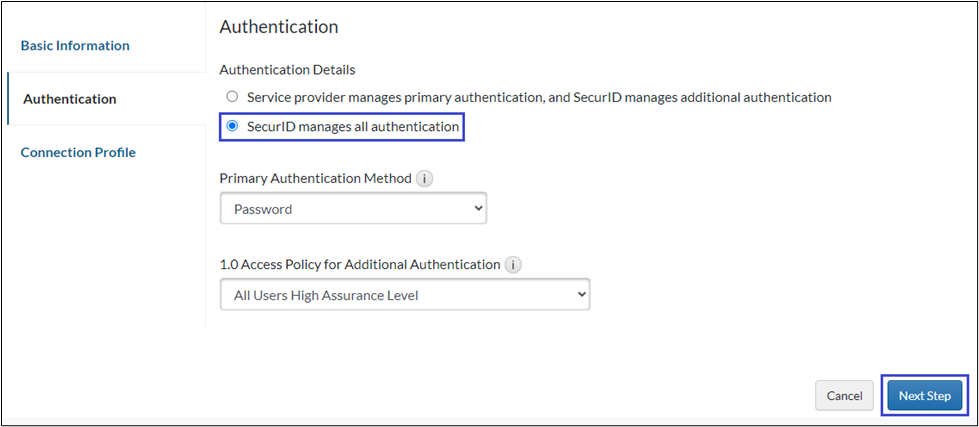

5. On the Authentication page, choose SecurID manages all authentication.
6. Select a Primary Authentication Method and Access Policy as required and click Next Step.
7. Provide the Service Provider details in the following format:
   1. ACS URL: https://login.newrelic.com/authentication_domains/<tenant ID>/saml/consume.
   2. Service Provider Entity ID: https://login.newrelic.com/authentication_domains/<tenant ID/saml/metadata.
      Refer to the Configure New Relic section to obtain ACS URL and Entity ID.

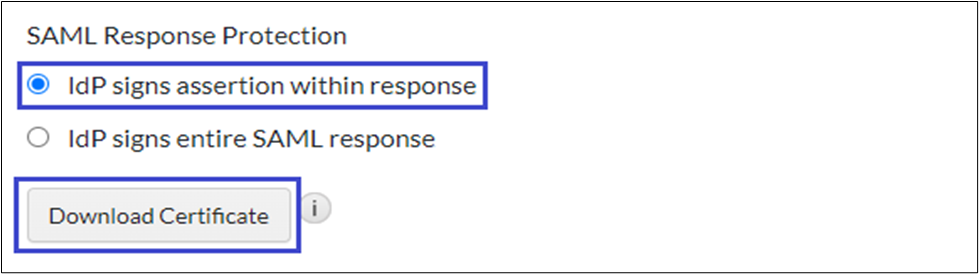

8. In the SAML Response Protection section, choose IdP signs assertion within response.
9. Download the certificate by clicking Download Certificate.
10. Click Show Advanced Configuration.
11. Under the User Identity section, configure Identifier Type and Property. For example, Identifier Type: Auto Detect and Property: Auto Detect.
12. Click Save and Finish.

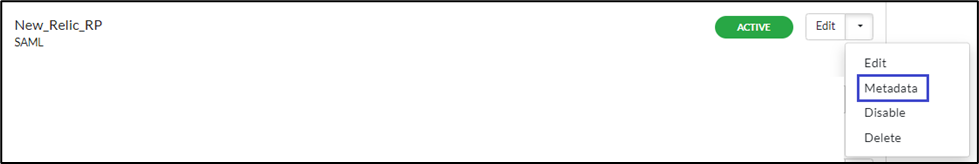

13. On the My Relying Parties page, click the Edit drop-down icon and select the Metadata option to download the metadata.
14. Click Publish Changes. Your application is now enabled for SSO.

Configure New Relic

1. Log on to New Relic with administrator credentials.

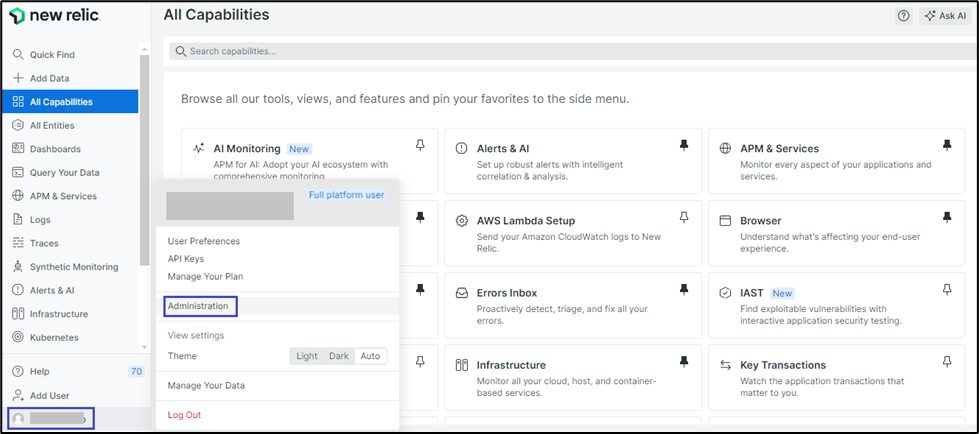

2. Click on your Profile and select Administration.
3. Under the Administration section, click Authentication Domains.

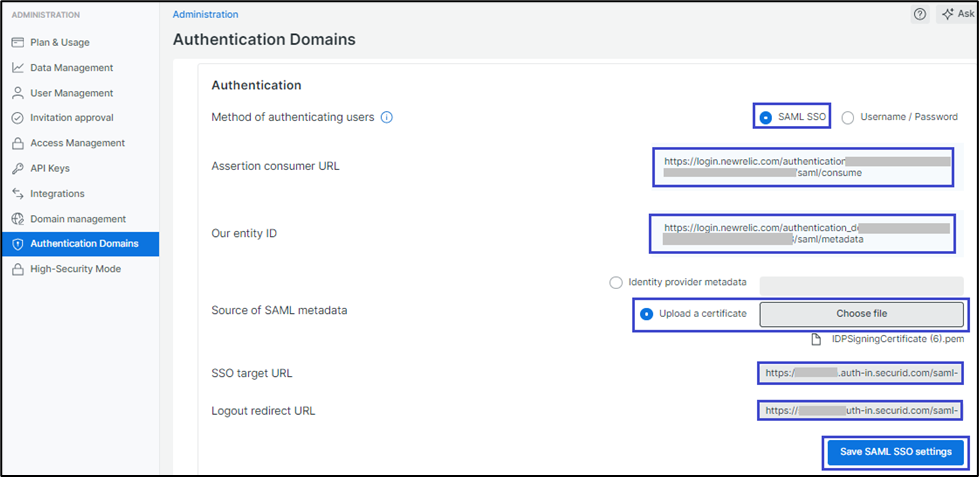

4. Click the SAML SSO option and do the following:
   1. Copy the ACS URL and Entity ID, from which tenant ID can be obtained.
   2. Click the Upload a certificate option and upload the certificate downloaded from RSA.
   3. SSO target URL – The SingleSignOnService value that can be obtained from the metadata file downloaded from RSA.
   4. Logout redirect URL – The SingleLogoutService value that can be obtained from the metadata file downloaded from RSA.
5. Click Save SAML SSO settings.
