OnceHub - SAML Relying Party Configuration - RSA Ready SecurID Access Implementation Guide

This section describes how to integrate RSA SecurID Access with OnceHub using Relying Party. Relying party uses SAML 2.0 to integrate RSA SecurID Access as a SAML Identity Provider (IdP) to OnceHub SAML Service Provider (SP).

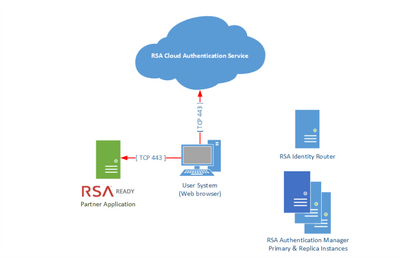

Architecture Diagram

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service as a relying party SAML IdP to OnceHub .

Procedure

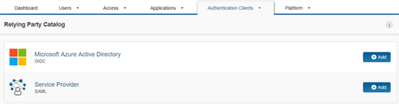

1. Sign into the RSA Cloud Administration Console and browse to Authentication Clients > Relying Parties and click Add a Relying Party.









2. On Basic Information page enter a Name for the application, ie. OnceHub Then click on Next Step.

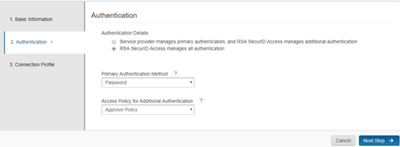

3. On Authentication page

   1. select the RSA SecurID Access manages all authentication

   2. Select the desired Primary Authentication Method from the dropdown list.

   3. Select the desired policy from the Access Policy for Additional Authentication.

   4. Click Next Step

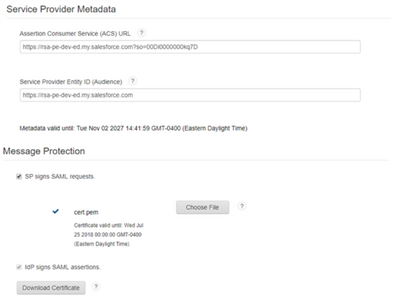

4. On Connection Profile page

   1. Enter the Assertion Consumer Service (ACS) for your instance of OnceHub This is the ACS URL. For example https://account.oncehub.com/samlp/callback/SAML-ZXG7R03BHR

   2. Enter the Service Provider Entity ID) for your instance of OnceHub.This is the Identifier URL For example https://account.oncehub.com/SAML-ZXG7R03B

   3. Click on Download Certificate

   4. Click on Choose File and upload the certificate just downloaded.  This same certificate will be used in the OnceHub configuration below.

   5. Open Advanced Configuration section and note the Identity Provider Entity ID field . For Example :https://rsa-blr-pe.auth-demo.securid.com/saml-fe/sso

   6. Click on Save and Finish



5. Browse to Authentication Clients > Relying Parties

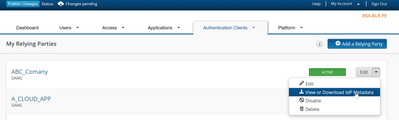

6. Scroll down to the your newly created Relying party and click down error next to Edit and choose View or Download IdP MetatData


1. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.




Configure OnceHub

Perform these steps to integrate OnceHub with RSA SecurID Access as a Relying Party SAML SP.

Procedure

1. Sign into OnceHub and browse to Security > SSO

2. Note the Identifier URL field. This value is used above in the RSA Cloud Service configuration above for Audience field

3. Note the ACS URL field. This value is used above in the RSA Cloud Service configuration above for the ACS field

4. Click Continue

5. Using the Identity Provider Entity ID from configuration above, copy URL into Entity ID and IDP single sign-on URL fields .

6. Open the certificate, from the certificate bundle created above, in notepad and copy the values including the BEGIN/END CERTIFICATE comments and paste into the Public x509 Certificate field.

7. Click on Save & Continue.

Configuration is complete.
