Planview Leankit - SAML Relying Party Configuration - SecurID Access Implementation Guide

This section describes how to integrate SecurID Access with Planview Leankit using Relying Party. Relying party uses SAML 2.0 to integrate SecurID Access as a SAML Identity Provider (IdP) to Leankit SAML Service Provider (SP).

Architecture Diagram

Configure SecurID Access Cloud Authentication Service

Perform these steps to configure SecurID Access Cloud Authentication Service(CAS) as a relying party SAML IdP to Leankit .

Procedure

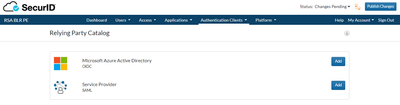

1. Sign into the Cloud Administration Console and browse to Authentication Clients > Relying Parties and click Add a Relying Party. Then select Add for a SAML service provider.









2. On Basic Information page enter a Name for the application, ie. Leankit Then click on Next Step.

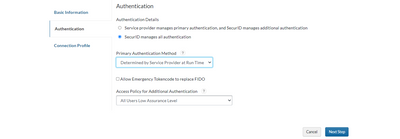

3. On Authentication page.

   1. select the RSA SecurID Access manages all authentication.

   2. Select the desired Primary Authentication Method from the dropdown list.

   3. Select the desired policy from the Access Policy for Additional Authentication.

   4. Click Next Step.

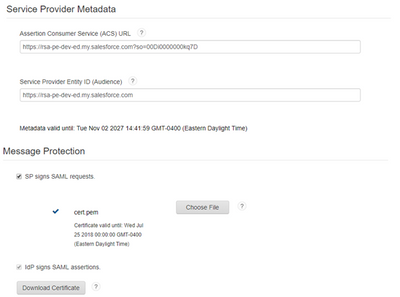

4. On Connection Profile page.

   1. Under the Service Provider Metadata section.





   2. Enter the Assertion Consumer Service (ACS) . Determine the value for the ACS found in the Planview configuration. Download the SP metatdata file from planview. See documenation at Leankit Documentation. This is in the form, https://<OrgHostName>.leankit.com/Account/Membership/ExternalLogin. For example, https://myrsademo.leankit.com/Account/Membership/ExternalLogin.

   3. Enter the Service Provider Entity ID. Determine the value for the ACS found in the Planview configuration. Download the SP metatdata file from planview. See documenation at Leankit Documentation. This is in the form, https://<OrgHostName>.leankit.com. For example, https://myrsademo.leankit.com.

   4. Uncheck SP signs SAML Requests.

   5. Click on Download Certificate. This will be used below in the Planview configuration.

   6. Click on Choose File and upload the certificate just downloaded.  This same certificate may be used in the Leankit configuration below.

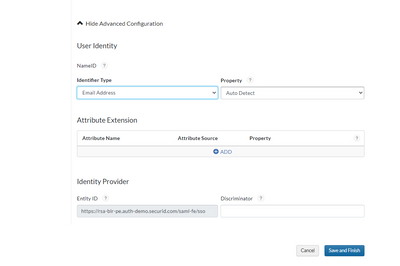

   7. Open Advanced Configuration section





   8. For Identifier Type Email Address choose mail for the Property.

   9. Note the Identity Provider Entity ID field . For Example :https://rsa-test-pe.auth-demo.securid.com/saml-fe/sso.

5. Click on Save and Finish.

6. Browse to Authentication Clients > Relying Parties

7. Scroll down to the your newly created Relying party and click down arrow to Edit and choose View or Download IdP MetatData and save off the metadata information if desired.





8. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.





Configure Leankit

Perform these steps to integrate Leankit with SecurID Access as a Relying Party SAML SP.

Procedure

1. Contact support@leankit.com. They will need to enable Relying Party/SSO with the information you will need to provide Identity Provider specific inormation including the leankit domain you are using.

2. For Identity Provider Login URL provide the Entity ID from the above in the SecurID CAS configuration. For example, https://rsa-blr-pe.auth-demo.securid.com/saml-fe/sso.

3. For IDP Public Certificate provide the certificate saved above in the SecurID CAS configuration.

4. Leankit will respond back with an External Login URL you will need to complete your SecurID configuration. This will be in the URL format, https://<OrgHostName>.leankit.com/Account/Membership/ExternalLogin.

5. Be sure to note your OrgHostName for your instance of Leankit.

Configuration is complete.

Next Step: See main page for more certification information.
