Version: V 7.2.x

Modules: Governance

Product Area: Tabular Reports  (Applied to Active Directory Summary Dashboard)

Associated Dashboard & Chart:

• RSA IGL Recipes : Dashboard - Active Directory (AD) Summary
• RSA IGL Recipes: Chart - AD Admin Groups

Time to apply: ~20 minutes

Summary

This report provides information about all the members of AD groups, which have been set with a "Classification" of "Admin" (See the chart: RSA IGL Recipes: Chart - AD Admin Groups  for more info on setting this up)

The goal of this report is to understand the accounts which are members of these admin groups.

The report can be used by Admin/AD Teams to be understand the risk of membership to the groups.

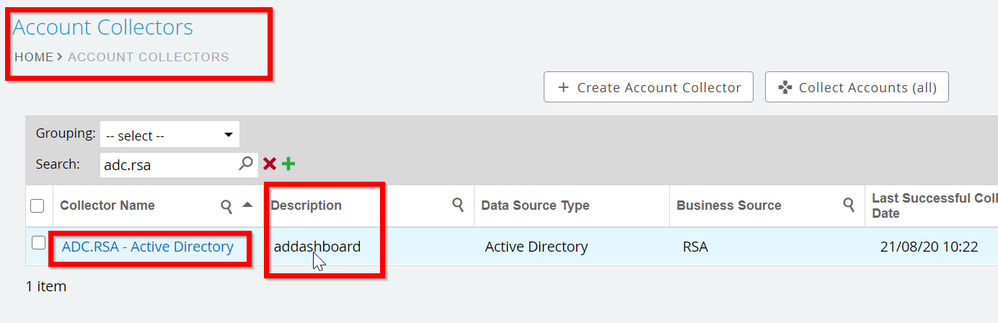

This report requires the key word: "addashboard" to be added within the description of the AD Account Collector.
This key word can be added to more than one Account Collector if required.

Example Image (Click to enlarge)

Key Notes

• This chart/report/dashboard is supplied "as is" - any modification of this item is done at your own risk.
• If you have issues applying this chart/report/dashboard, please comment below for help, DO NOT contact the RSA Support team.
• If you would like more assistance with this chart/report/dashboard or for help in creating other chart/report/dashboards, then RSA Professional Services (RSA PS) is available to help.
  • Please contact your RSA Account Manager or local RSA Sales Rep or reply below for further assistance.

Details

This report includes information about all the accounts and so other key data points, such as if the account is disabled or orphan.

Report SQL

First test this in your query tool (SQLDeveloper, Toad etc..)

(select
	vACM.group_name as "Group Name",
	vACM.name as "Account Name",
	lower(vACM.EATTR_Account_CAS4) as "Account Status",
	CASE
        WHEN pACC.IS_DISABLED = '0' THEN 'False'
        ELSE 'True'
        END AS "Is Disabled?",
	case when vACM.ORPHANED_DATE is not null then 'True' else 'False' end as "Orphaned?"
from V_ACCOUNT_GROUPMEMBERSHIP vACM
left join avuser.V_DATA_COLLECTORS vDC
	on vDC.id = vACM.ADC_ID
left join avuser.PV_ACCOUNT pACC
    on vACM.ID = pACC.ID
where vACM.DELETION_DATE is null
	and lower(vDC.DESCRIPTION) like '%addashboard%'
	and vACM.EATTR_GROUPS_CAS4 = 'Admin'
ORDER BY vACM.group_name ASC)

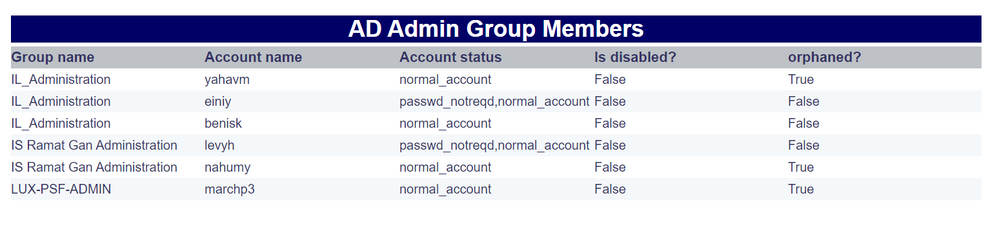

Example of the results:

Report Implementation

1. Log into RSA IGL as a user who can create reports. In my example, im using AveksaAdmin

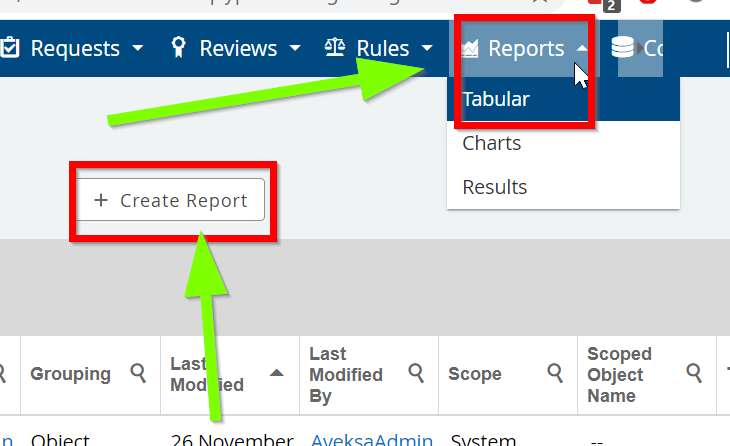

2. Go to "Reports" / "Tabular"
3. Select "+ Create Report" button

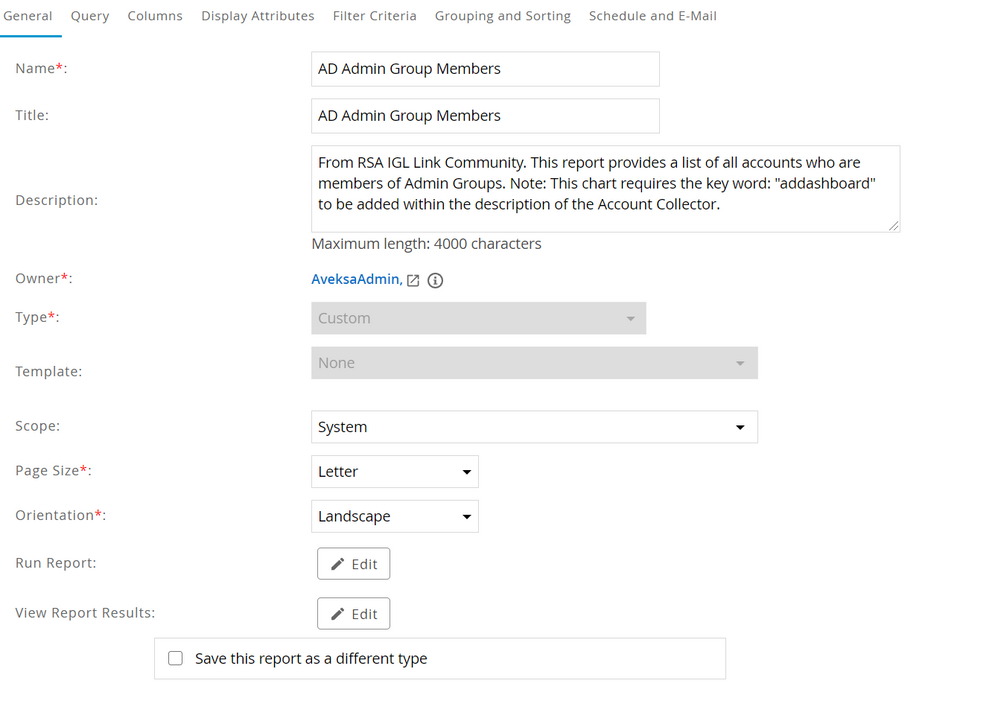

4. Under the "General Tab" add the following details:
   • Name: AD Admin Group Members
   • Title: AD Admin Group Members
   • Description: From RSA IGL Link Community. This report provides a list of all accounts who are members of Admin Groups. Note: This chart requires the key word: "addashboard" to be added within the description of the Account Collector.
   • Scope: System
   • Page Size: Letter
   • Orientation: Landscape

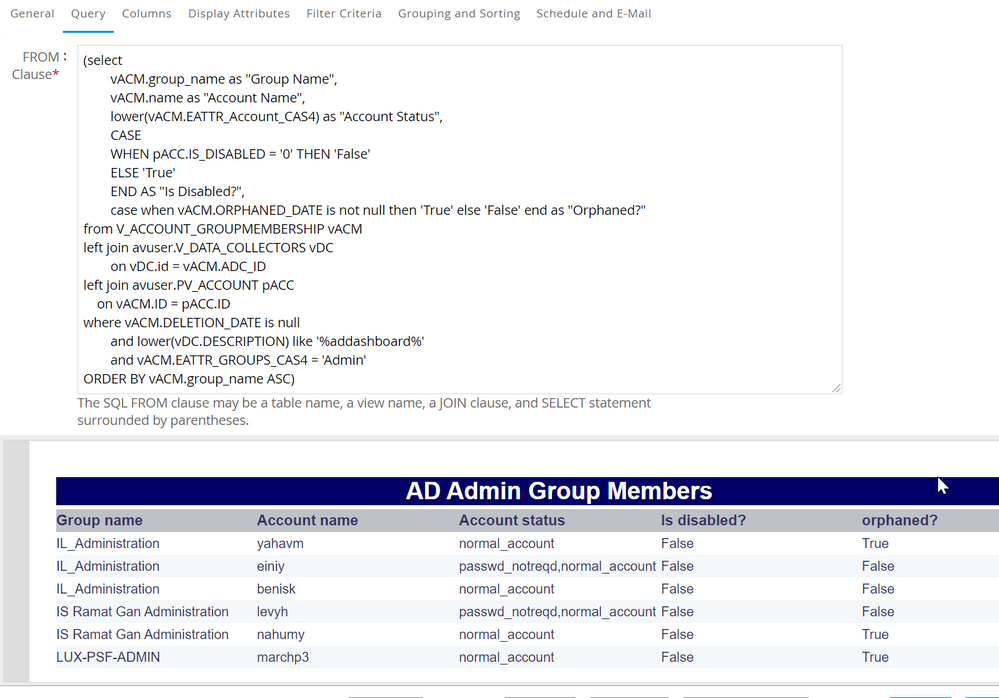

5. Under the "Query" Tab, copy the SQL from above

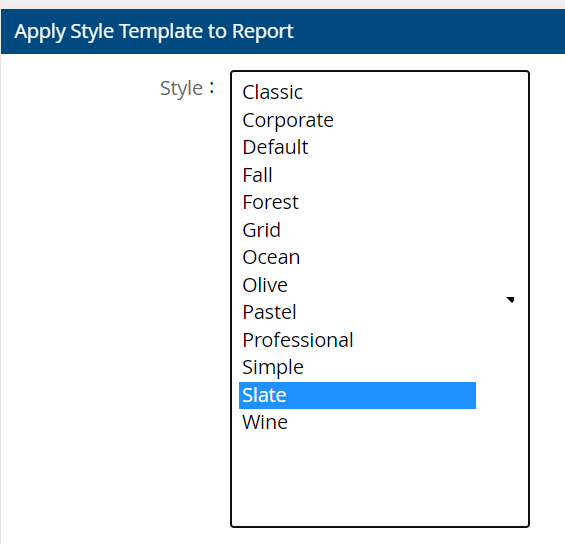

6. In the bottom bar, press the "Style" button. "Slate" is a good recommendation for reports

7. Press the "Preview" button, you should see some results, as per the example image below.

   If you get an error at this stage, please test your SQL in a Query tool, like "SQL Developer" or "SQL Squirrel" to ensure it works first.
   If it still doesn't work, please share your SQL and a screen shot of the issue below. DO NOT contact RSA Support

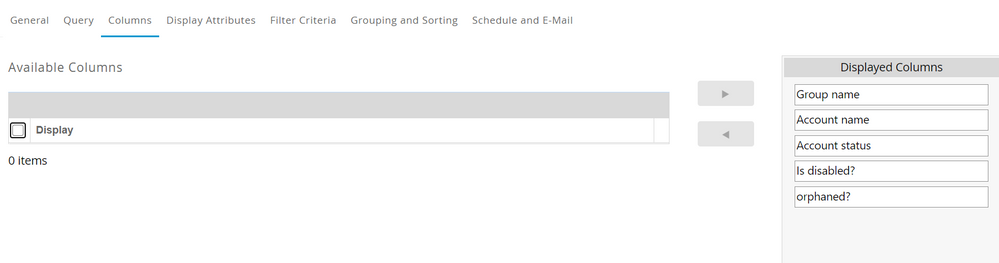

8. Under the "Columns" Tab, please use the configuration shown in the image below

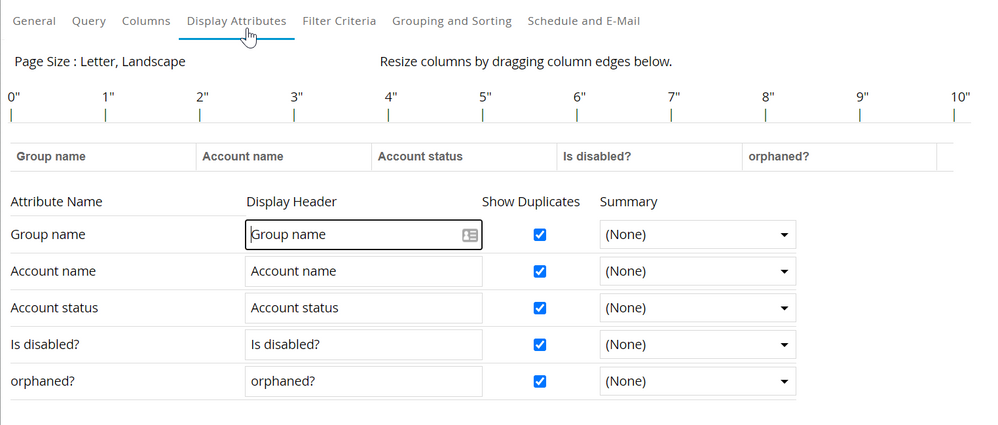

9. Under the "Display Attributes" tab, please use the configuration shown in the image below

10. Nothing has been set on the "Filter", "Grouping & Sorting" or "Schedule and Email" tabs
