Test connector settings of an Active Directory LDAP AFX Connector configured to use SSL over port 636 fails with 'Failed connector settings test, Request timed out' in RSA Identity Governance & Lifecycle
4 years ago
Originally Published: 2016-12-16
Article Number
000043032
Applies To
RSA Product Set: Identity Governance & Lifecycle
RSA Version/Condition: 7.0.1

Issue

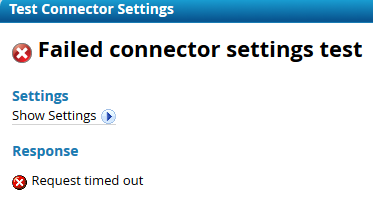

When testing the connector settings of an Active Directory LDAP AFX Connector that is configured to use SSL over port 636 (AFX > Connectors > {connector-name} > Test Connector Settings), the test fails with the following message:

Failed connector settings test. Request timed out.

User-added image

The Active Directory LDAP AFX connector log, $AFX_HOME/esb/logs/esb.AFX-CONN-{connector-name}.log, shows the following error.
2016-12-12 11:19:52.205 [ERROR] org.mule.module.launcher.application.DefaultMuleApplication:361
- null java.lang.ClassNotFoundException: com.aveksa.common.tls.SSLContextFactory

The AFX mule log file, $AFX_HOME/esb/logs/mule_ee.log, has a corresponding error:
ERROR 2016-12-12 11:19:52,478 [Mule.app.deployer.monitor.1.thread.1]
org.mule.module.launcher.DefaultArchiveDeployer:
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
+ Failed to deploy artifact 'AFX-CONN-AD-AFX-Connector',   +
+ see below                                                +
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
org.mule.module.launcher.DeploymentStartException: ClassNotFoundException:
com.aveksa.common.tls.SSLContextFactory

The same connector configured to connect over port 389 (non-SSL connection) is able to connect.


Cause
This is a known issue in RSA Identity Governance & Lifecycle 7.0.1 GA (release) version.

The key errors are the java.lang.ClassNotFoundException: and ClassNotFoundException: errors in the AFX log files. This error occurs due to a missing class file in the mmc-console class path.


Resolution
This issue is resolved in RSA Identity Governance and Lifecycle 7.0.1 P01.
