ThirdLight - SAML Relying Party Configuration - SecurID Access Implementation Guide

This section describes how to integrate SecurID Access with ThirdLight using Relying Party. Relying party uses SAML 2.0 to integrate SecurID Access as a SAML Identity Provider (IdP) to ThirdLight SAML Service Provider (SP).

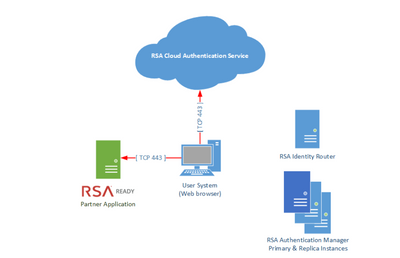

Architecture Diagram

Configure SecurID Access Cloud Authentication Service

Perform these steps to configure Cloud Authentication Service as a relying party SAML IdP to ThirdLight .

Procedure

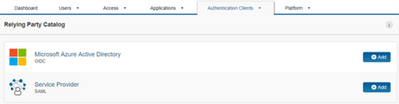

1. Sign into the Cloud Administration Console and browse to Authentication Clients > Relying Parties and click Add a Relying Party.









2. On Basic Information page enter a Name for the application, ie. ThirdLight Then click on Next Step.

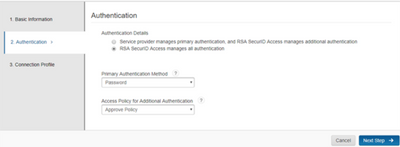

3. On Authentication page.

   1. select the RSA SecurID Access manages all authentication.

   2. Select the desired Primary Authentication Method from the dropdown list.

   3. Select the desired policy from the Access Policy for Additional Authentication.

   4. Click Next Step.

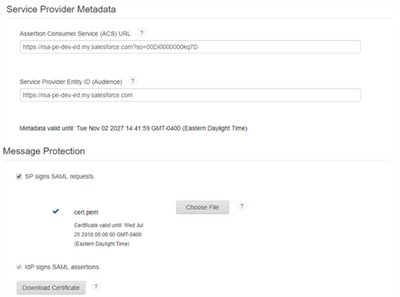

4. On Connection Profile page.

   1. Enter the Assertion Consumer Service (ACS) . This is the SP Metadata URL of your instance of ThirdLight. The SP Metadata URL is shown in the ThirdLight configuration below. For example https://myThirdight.chorus.thirdlight.com/samlconsume.tlx/1620191282/module.php/saml/sp/saml2-acs.php/samlauth.

   2. Enter the Service Provider Entity ID. This is the SP Entity ID b of your instance of ThirdLight. The SP Metadata URL is shown in the ThirdLight configuration below. For example https://myThirdLight>.chorus.thirdlight.com/saml/sp.

   3. Click on Download Certificate. This will be used below in the ThirdLight configuration.

   4. Open Advanced Configuration section.

   5. For Identifier Type Email Address choose mail for the Property.

   6. Note the Identity Provider Entity ID field . For Example :https://rsa-blr-per.auth-demo.securid.com/saml-fe/sso.

   7. Click on Save and Finish.





5. Browse to Authentication Clients > Relying Parties

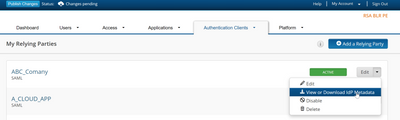

6. Scroll down to the your newly created Relying party and click down arrow to Edit and choose View or Download IdP MetatData and save off the metadata information.





7. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.





Configure ThirdLight

Perform these steps to integrate ThirdLight with SecurID Access as a Relying Party SAML SP.

Procedure

1. Sign into ThirdLight under Admin and go to Setting > Site.

2. Go to SAML2 and select Enable SAML2.

3. In the SP Details section, Note the SP Entity ID and SP Metadata URL values to be used in the SecurID Access Cloud Authentication Service (CAS) configuration above.

4. Select Load IdP Metadata from XML.

5. For IdP Metadata copy the entire contents of the Metadata file download above in the CAS configuration.

6. Click Save.

Configuration is complete.

Next Step: See main page for more certification information.
