Visual Paradigm Online - SAML Relying Party Configuration - SecurID Access Implementation Guide

This section describes how to integrate SecurID Access with Visual Paradigm Online using Relying Party. Relying party uses SAML 2.0 to integrate SecurID Access as a SAML Identity Provider (IdP) to Visual Paradigm Online SAML Service Provider (SP).

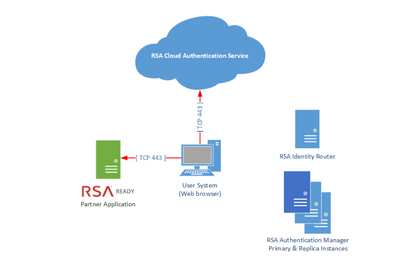

Architecture Diagram

Configure SecurID Access Cloud Authentication Service

Perform these steps to configure Cloud Authentication Service(CAS) as a relying party SAML IdP to Visual Paradigm Online .

Procedure

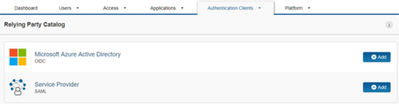

1. Sign into the Cloud Administration Console and browse to Authentication Clients > Relying Parties and click Add a Relying Party.









2. On Basic Information page enter a Name for the application, ie. Visual Paradigm Online Then click on Next Step.

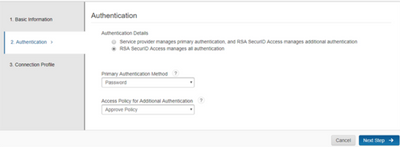

3. On Authentication page

   1. select the RSA SecurID Access manages all authentication

   2. Select the desired Primary Authentication Method from the dropdown list. i.e Password

   3. Select the desired policy from the Access Policy for Additional Authentication.

   4. Click Next Step





4. On Connection Profile page

   1. Enter the Assertion Consumer Service (ACS) fthis is the Single Sign-On (ACS) URL obtained from theVisual Paradigm Online. configuration below. For example, https://online.visual-paradigm.com/w/srusgovp/saml2/service/.

   2. Enter the Service Provider Entity ID this is the Audience URI (SP Entity ID) obtained from the Visual Paradigm Online. configuration below. For example, https://online.visual-paradigm.com/w/srusgovp/saml2.

   3. Open Advanced Configuration section and note the Identity Provider Entity ID field . For Example :https://rsa-blr-pe.auth-demo.securid.com/saml-fe/sso

   4. Click on Save and Finish





5. Browse to Authentication Clients > Relying Parties

6. Scroll down to the your newly created Relying party and click down error next to Edit and choose View or Download IdP MetatData This data is used below for Visual Paradigm Online configuration.





7. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.





Configure Visual Paradigm Online

Perform these steps to integrate Visual Paradigm Online with SecurID Access as a SAML SSO Agent.

Procedure

1. Sign into Visual Paradigm Online administration console.

2. Browse Configuration > System Tools.

3. Select Single Sign-On.

4. Enter in a Identity Provider (IDP) Name For example, RSA_SSO.

5. Note the Single Sign-On (ACS) URL , this will be used above for SecurID Access Cloud Authentication Service configuration above.

6. Note the Audience URI (SP Entity ID) , this will be used above for SecurID Access Cloud Authentication Service configuration above.

7. For the IDP metadata click on Choose File and use the file Metadata XML file downloaded above.

8. Click Apply.
