eLeaP - SAML SSO Agent Configuration - SecurID Access Implementation Guide

This section describes how to integrate SecurID Access with eLeaP using a SAML SSO Agent.

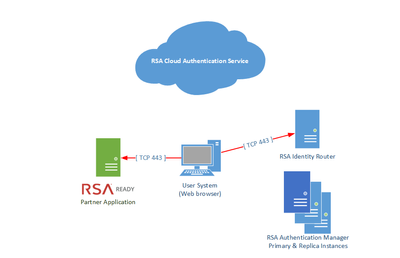

Architecture Diagram

Configure SecurID Access Cloud Authentication Service

Perform these steps to configure SecurID Access Cloud Authentication Service(CAS) as an SSO Agent SAML IdP to eLeaP.

Procedure

1. Sign into the SecurID Access Cloud Administration Console and browse to Applications > Application Catalog.

2. Search on eLeaP then click Add.

3. On Basic Information page enter a Name for the application, ie. eLeaP Then click on Next Step.

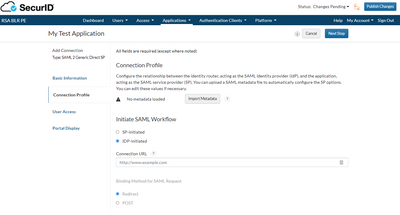

4. On Connection Profile page.

   1. Choose IDP-Initiated.







   1. In Connection URL update the URL based on <yourdomain> for eLeaP. For example, https://2leap.com/sso/index.php?saml_sso=<yourdomain>.

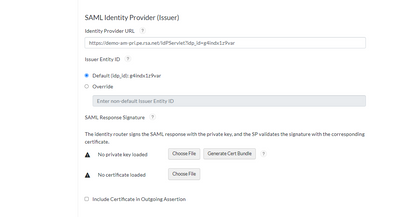

   2. Note the Identity Provider URL. This value is automatically generated. It may be needed later for the configuration of eLeaP. For example, https://portal.sso.pe.rsa.net/IdPServlet?idp_id=helloxi3mjsf.

   3. Note the Issuer Entity ID. For example, helloxi3mjsf.





   4. Click on Generate Cert Bundle, set a a common name for your company certificate. Then click Generate and Download .

   5. Select Choose File and upload the private key from the generated certificate bundle.

   6. Select Choose File and upload the cert from the generated certificate bundle.

   7. Select Include Certificate on Outgoing Assertion.

   8. Scroll down to Service Provider section.

   9. For the Assertion Consumer Service (ACS) Enter the value based on your domain of your eLeaP instance. The URL is in the form of https://2leap.com/sso/simplesamlphp/www/module.php/saml/sp/saml2-acs.php/<yourdomain>. For example, https://2leap.com/sso/simplesamlphp/www/module.php/saml/sp/saml2-acs.php/helloworld.

   10. For the Audience (Service Provider Issuer ID) . Enter the value based on your domain of your eLeaP instance. The URL is in the form of https://2leap.com/sso/simplesamlphp/www/module.php/saml/sp/saml2-acs.php/<yourdomain>. For example, https://2leap.com/sso/simplesamlphp/www/module.php/saml/sp/saml2-acs.php/helloworld.

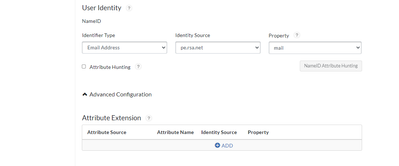

   11. Scroll down to User Identity section.

   12. Ensure Identifier Type = Email Address, set your Identity Source and Property = mail.





   13. Expand Advanced Configuration

   14. For Attribute Name as email select the Property mail.

   15. For Attribute Name as subdomain change Attribute Source to Constant. Click on the pencil icon to edit. Set the Attribute Value to that of your domain for eLeaP. For example, helloworld.

   16. Note Property values may vary based on your specific configuration.

   17. Click Next Step.

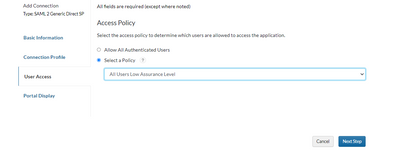

5. On User Access page select the Access Policy you require. Allow All Authenticated Users is the least restrictive. Click Next Step.





6. On Portal Display Page.

   1. Select Display in Portal.

   2. Upload an Application Icon if you wish.

   3. Set an Application Tooltip if you wish.

   4. Click on Save and Finish.

7. For this new Connector, click on the down arrow next to the Edit button and Export Metadata to save off the IDP metadata information for configuration of eLeaP.

8. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.





Configure eLeaP

Perform these steps to integrate eLeaP as an SSO Agent SAML SP to SecurID Access Cloud Authentication Service.

Procedure

1. Contact eLeaP support requesting that single sign-on be enabled. Email address: support@eLeaPsoftware.com.
2. Supply eLeaP support with the IdP MetaData XML file.

Configuration is complete.

Next Step: Head back to the main page.
