This article describes how to integrate RSA with Automox using SAML Relying Party.

Configure RSA Cloud Authentication Service

1. Sign in to the RSA Cloud Administration Console.

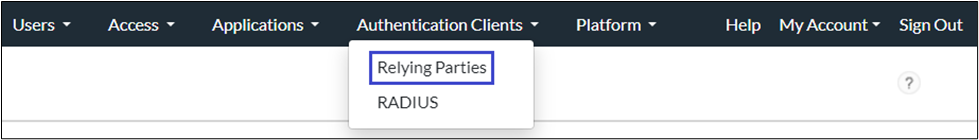

2. Navigate to the Authentication Clients menu, and from the dropdown, select Relying Parties.

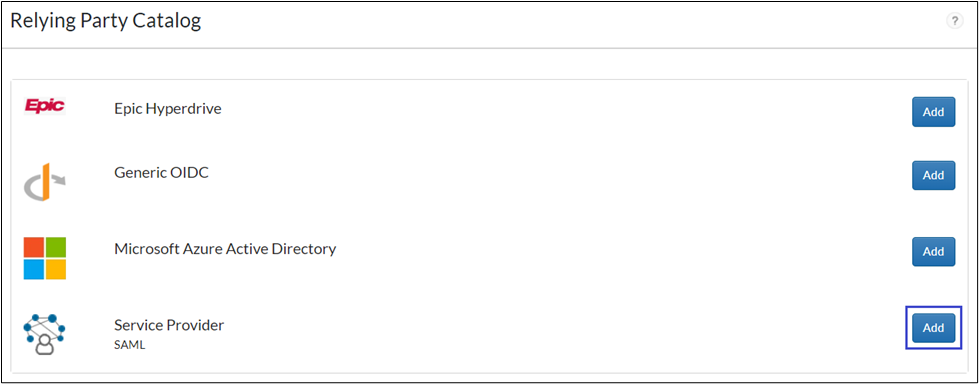

3. In the Relying Party Catalog, select Add a Relying Party and click Add for Service Provider SAML.

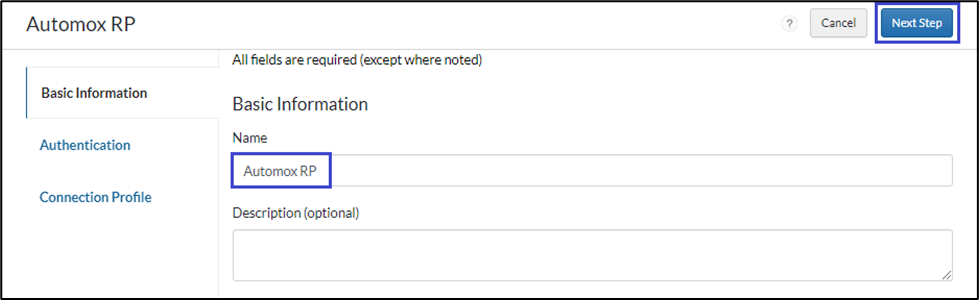

4. On the Basic Information page, enter a name for the application in the Name field and click Next Step.

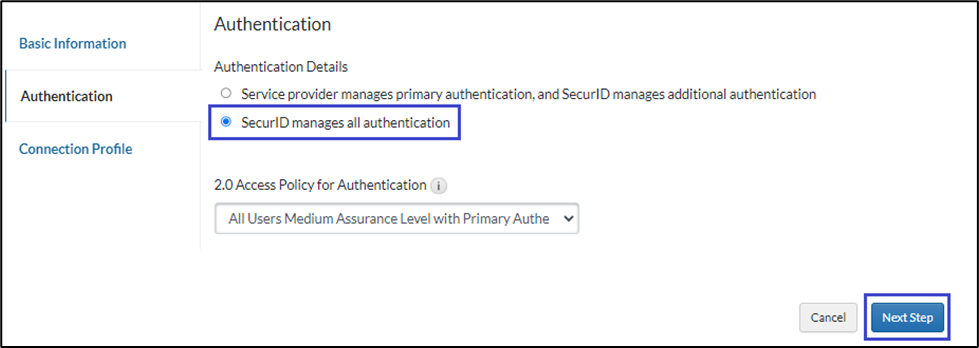

5. In the Authentication tab, select SecurID manages all authentication.
6. Select Access Policy as required and click Next Step.

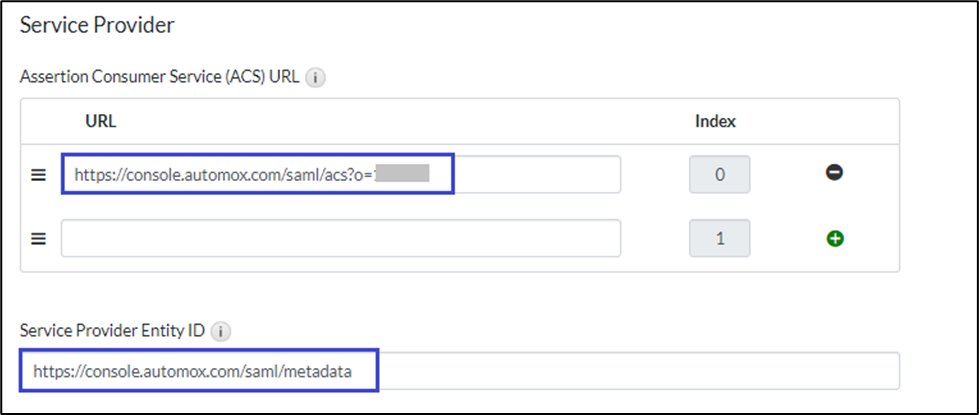

7. Provide the Service Provider details in the following format:
   1. Assertion Consumer Service (ACS) URL: https://console.automox.com/saml/acs?o=<Legacy ID>
   2. Service Provider Entity ID: https://console.automox.com/saml/metadata

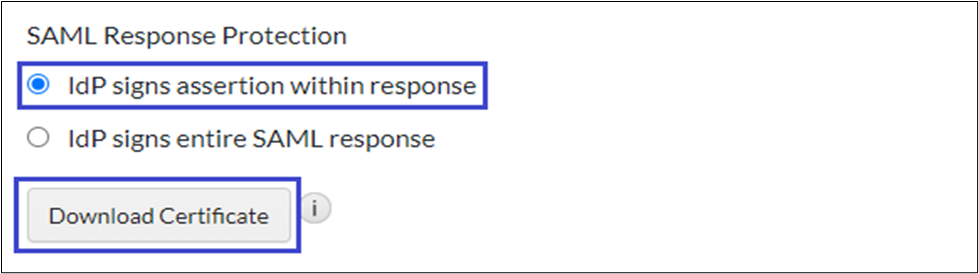

8. In the SAML Response Protection section, select IdP signs assertion within response, and download the certificate by clicking Download Certificate.
9. Under the User Identity section, select Show Advanced Configuration, then configure Identifier Type and Property as follows:
   1. Identifier Type: Auto Detect
   2. Property: Auto Detect

10. Click Save and Finish.

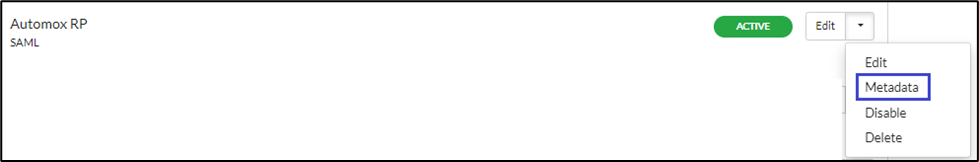

11. On the My Relying Parties page, click Edit dropdown and select Metadata option to download the metadata.
12. Click Publish Changes to save your settings. After publishing, your application will be enabled for SSO.

Configure Automox

1. Log in to Automox using admin credentials: https://console.automox.com/login

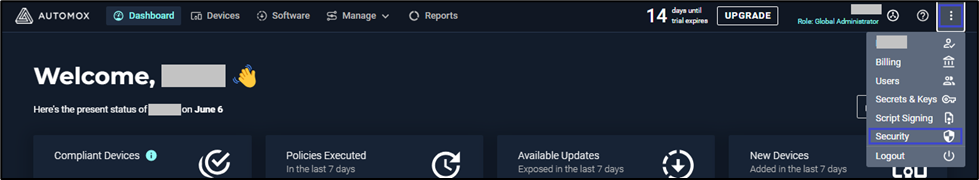

2. Click the vertical dots in the top right corner and select Security.

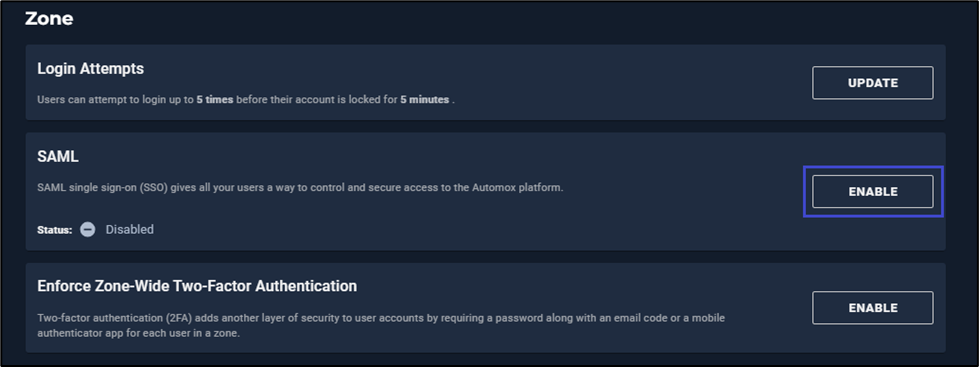

3. Click Enable in SAML section.

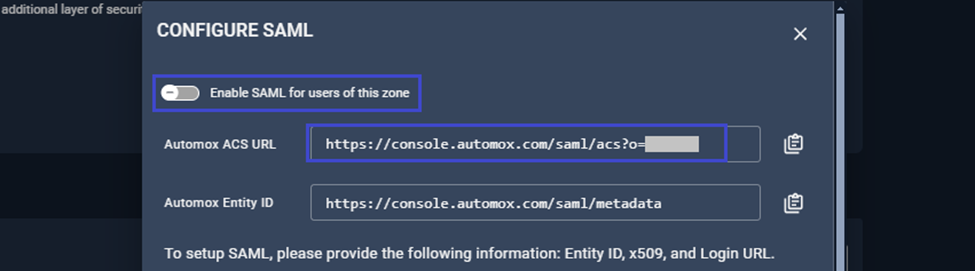

4. Under the CONFIGURE SAML section, toggle the switch for Enable SAML for users of this zone.
5. Copy the Automox ACS URL for configuring the RSA platform.

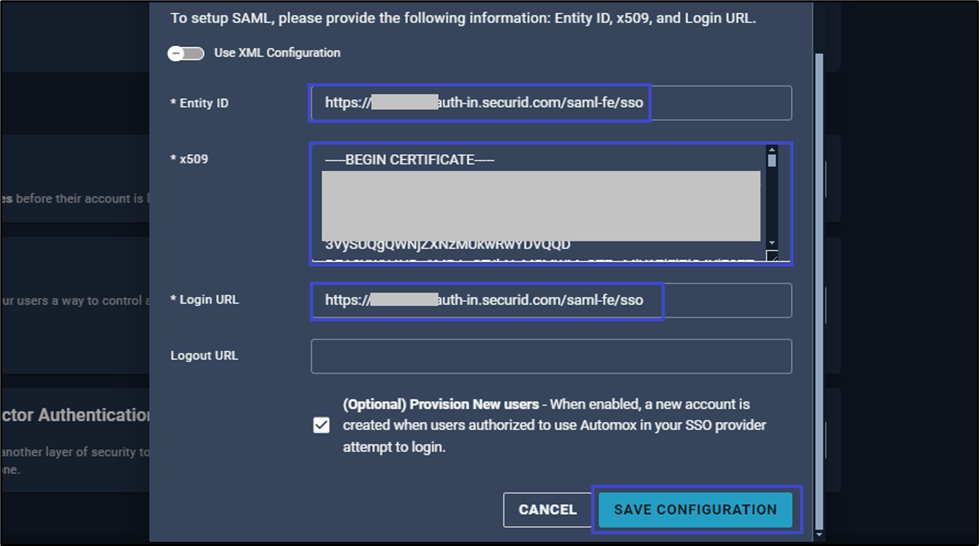

6. Provide the following details and click SAVE CONFIGURATION.
   1. Entity ID: Enter the value of the entityID, obtainable from the metadata file downloaded from the RSA platform.
   2. X509: Copy and paste the certificate downloaded from the RSA platform.
   3. Login URL: Enter the value of SingleSignOnService, obtainable from the metadata file downloaded from the RSA platform.
