This article describes how to integrate RSA with Clever using SAML Relying Party.

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service as Relying Party to Clever.
Procedure
  1. Sign in to the RSA Cloud Administration Console.

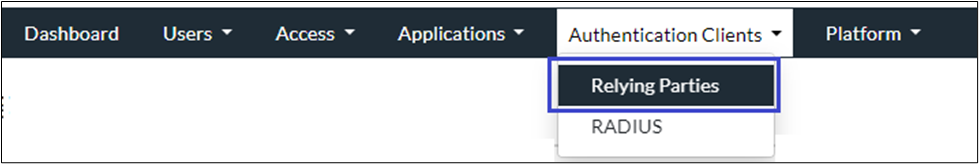

  2. Navigate to the Authentication Clients menu, and from the dropdown, select Relying Parties.image.png

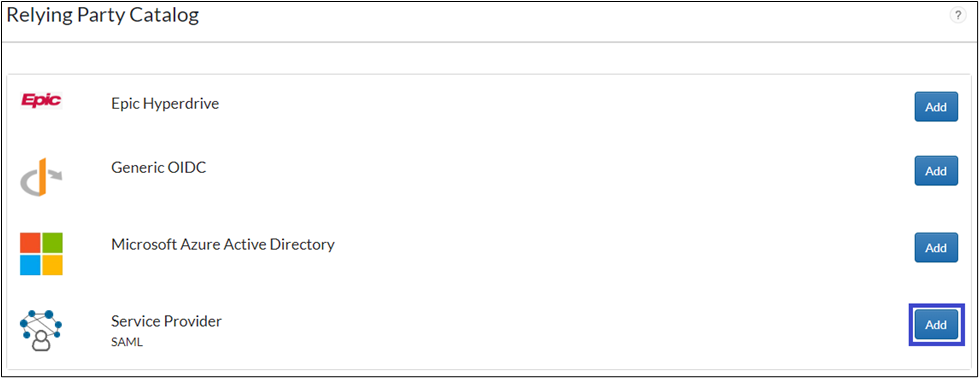

  3. In the Relying Party Catalog, select Add a Relying Party and click Add for Service Provider SAML.image.png

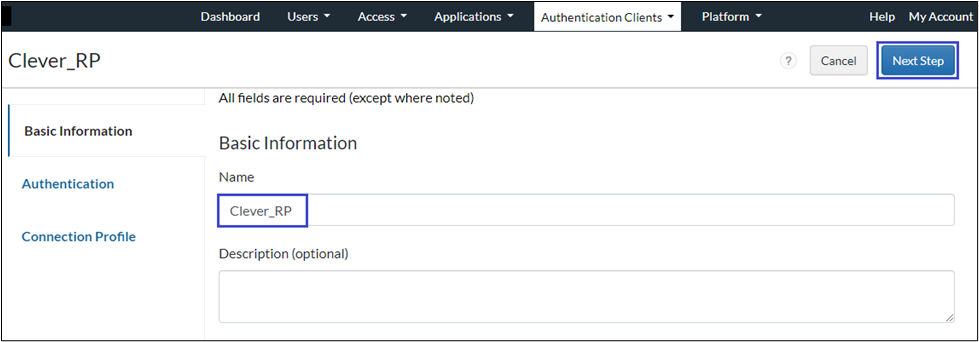

  4. On the Basic Information page, enter a name for the application in the Name field and click Next Step.image.png

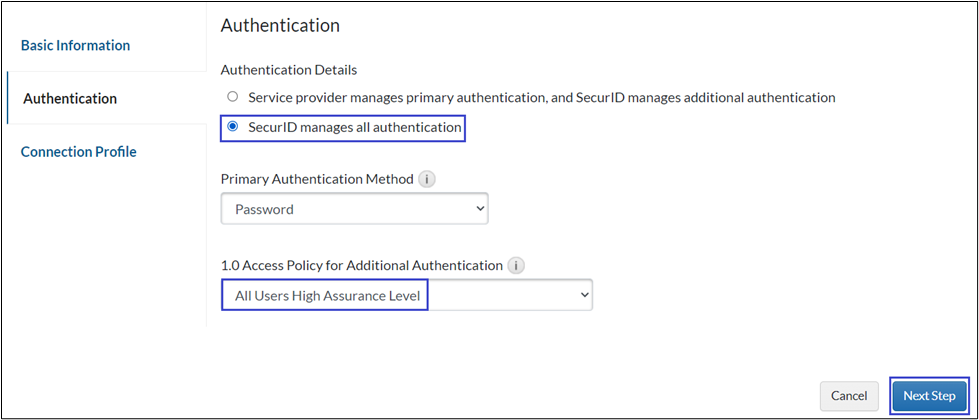

  5. In the Authentication tab, select SecurID manages all authentication.
  6. Select the Primary Authentication Method and Access Policy as required and click Next Step.image.png

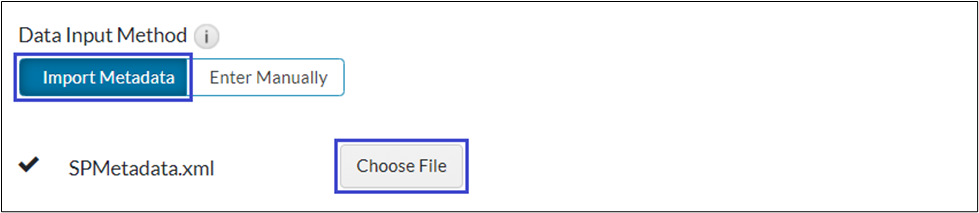

  7. To provide Service Provider details, select Import Metadata, click the Choose File button, and select the file downloaded from the Service Provider.image.png
To obtain Clever metadata, refer to the following URL: https://clever.com/oauth/saml/metadata.xml.

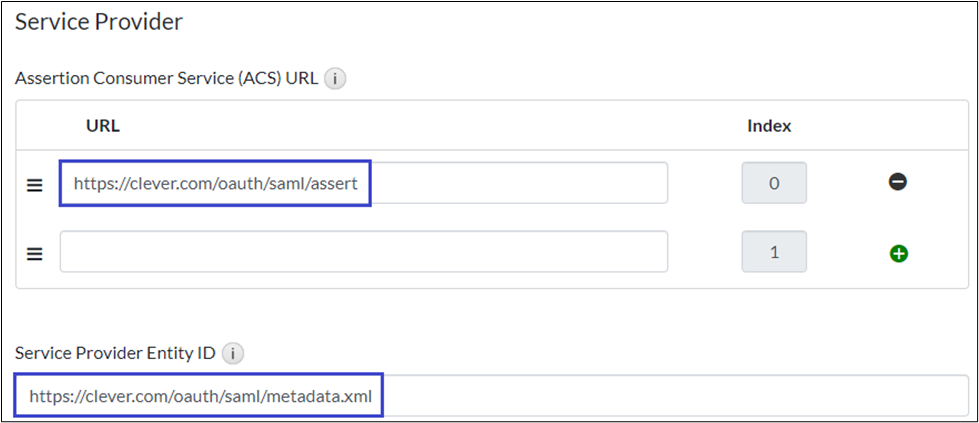

  1. Assertion Consumer Service (ACS) URL and Service Provider Entity ID values will be auto filled.image.png

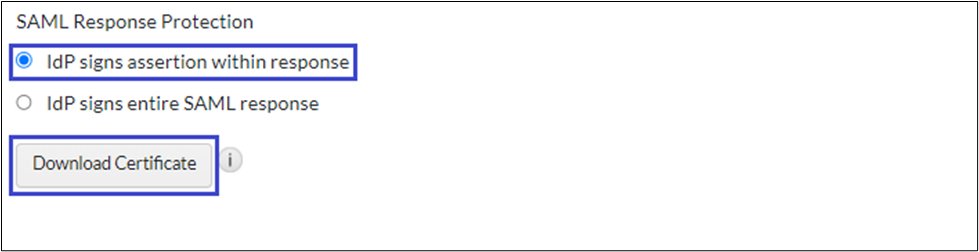

  2. In the SAML Response Protection section, select IdP signs assertion within response, and download the certificate by clicking Download Certificate.image.png

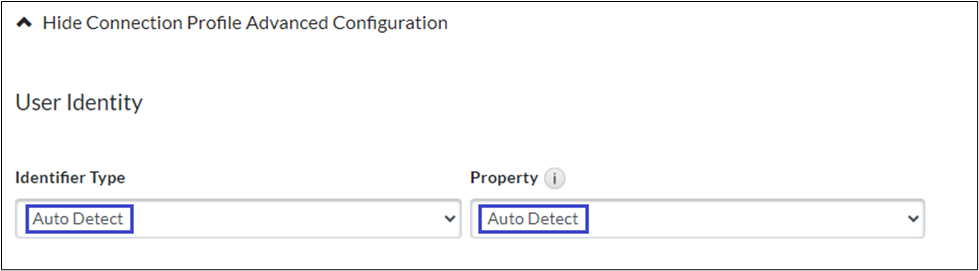

  3. Under the User Identity section, select Show Advanced Configuration, then configure Identifier Type and Property as follows:
    1. Identifier Type: Auto Detect
    2. Property: Auto Detect

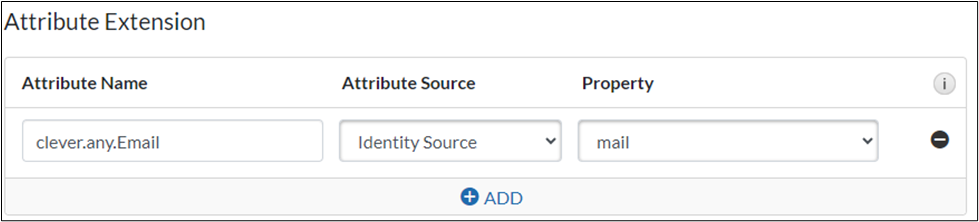

  1. Under the Statement Attribute section, add the following attributes:
    1. Attribute Name: clever.any.Email
    2. Attribute Source: Identity Source
    3. Property: mail
  1. Click Save and Finish.

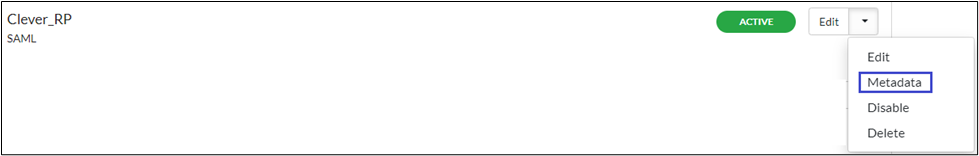

  2. On the My Relying Parties page, click Edit dropdown and select Metadata option to download the metadata.image.png

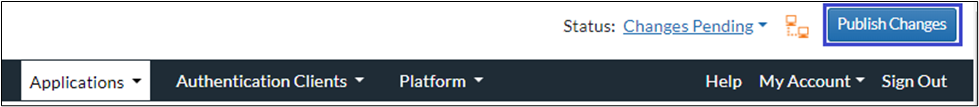

  3. Click Publish Changes to save your settings. After publishing, your application will be enabled for SSO.image.pngimage.png


Configure Clever

Perform these steps to configure Clever.
Procedure
  1. Log in to Clever as an administrator.

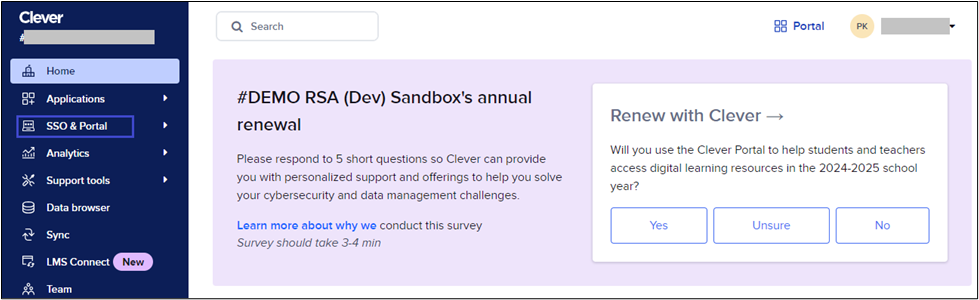

  2. Click SSO & Portal.

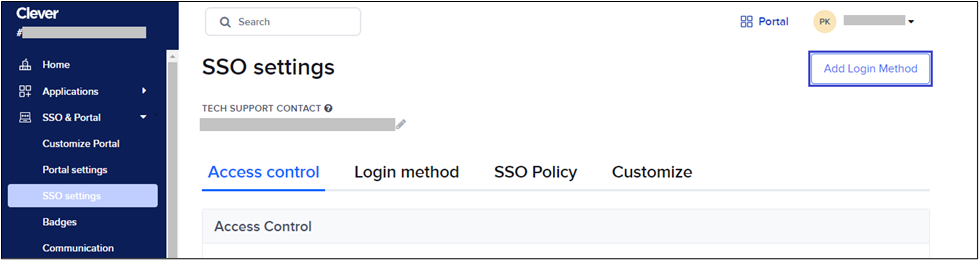

  1. Click Add Login Method.

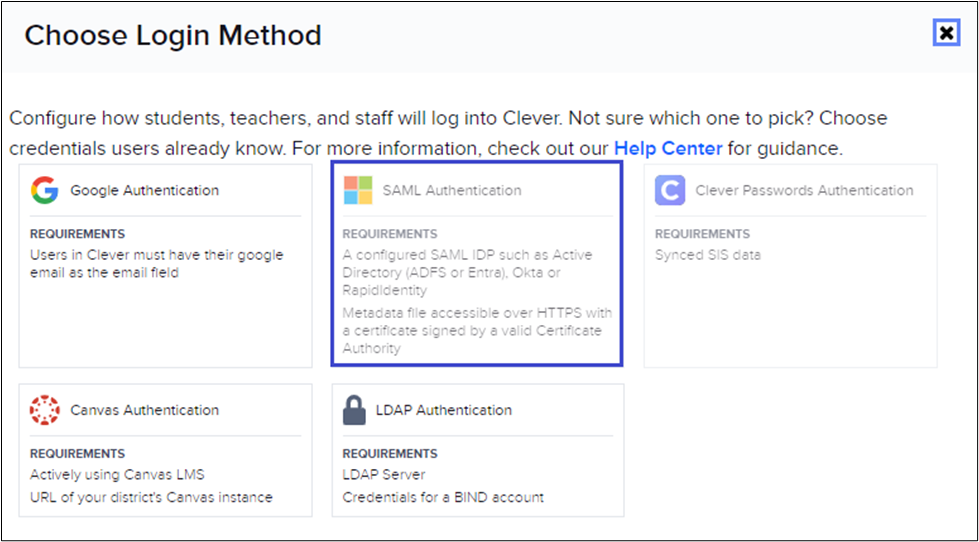

  1. Select SAML Authentication.

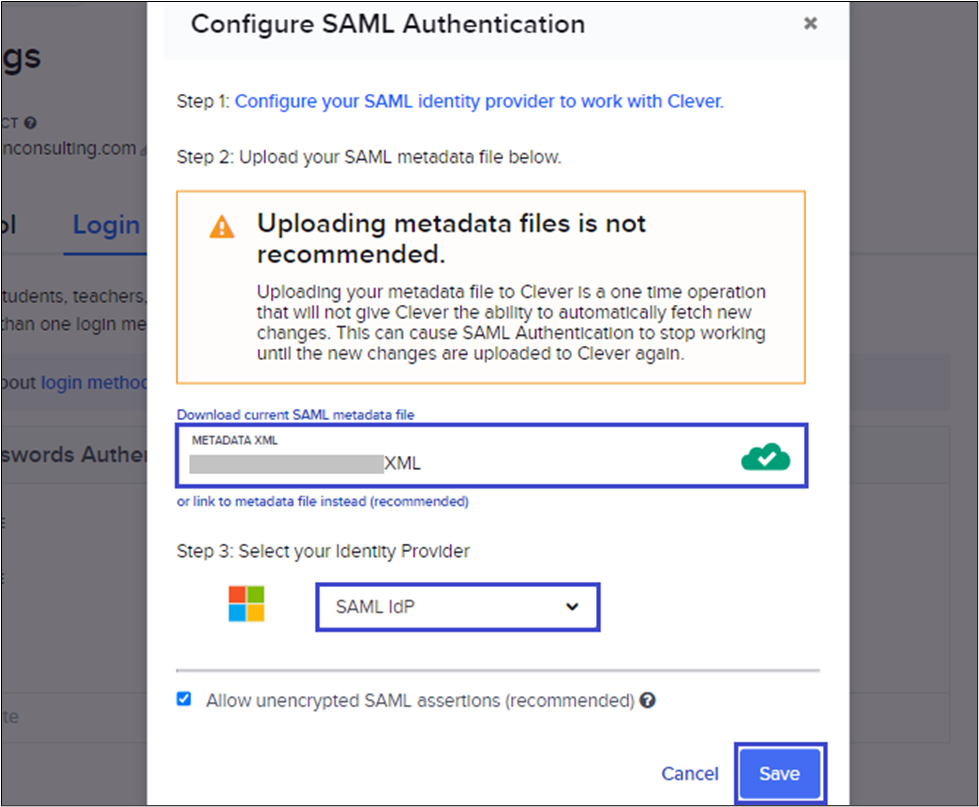

  1. Fill in the following details and click Save
    1. Upload the metadata downloaded from the RSA platform.
    2. Select SAML IdP as your identity provider from the dropdown menu.

The configuration is complete.
