Configure RSA Cloud Authentication Service

1. Sign in to RSA Cloud Administration Console.

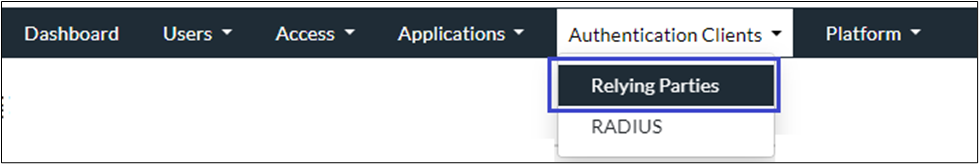

2. Click Authentication Clients > Relying Parties.

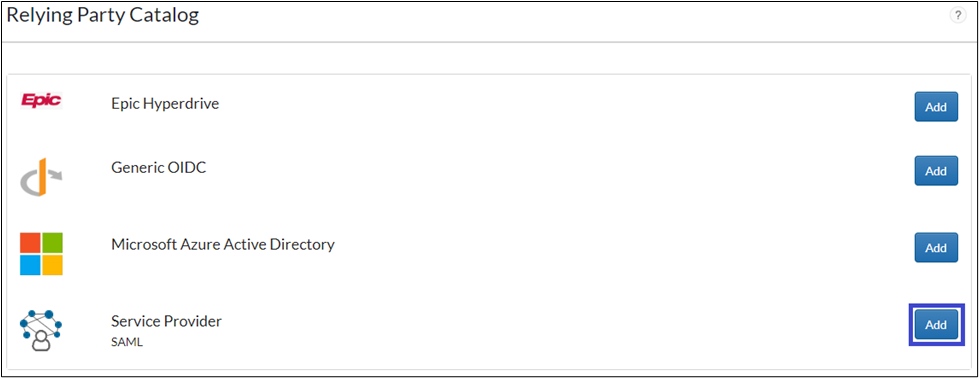

3. On the Relying Party Catalog page, click Add a Relying Party and click Add for Service Provider SAML.

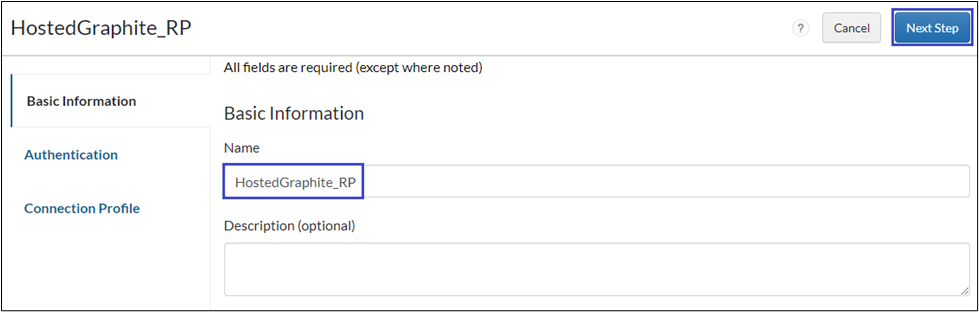

4. On the Basic Information page, enter the name for the application in the Name field and click Next Step.

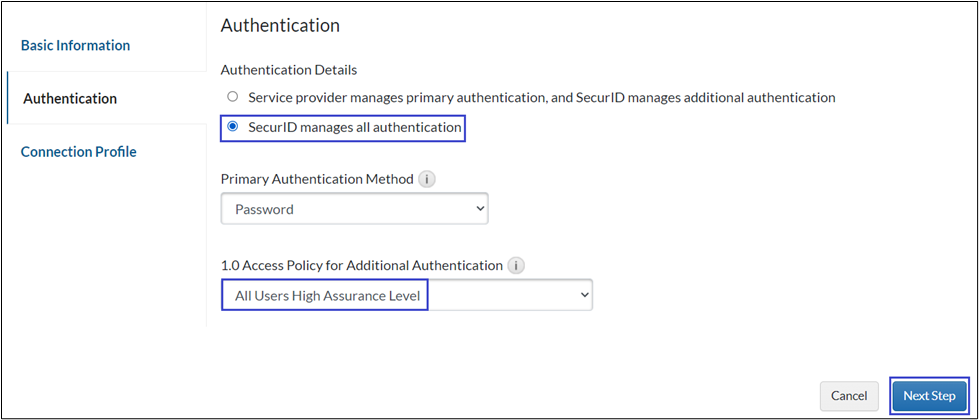

5. On the Authentication page, choose SecurID manages all authentication.
6. Select a Primary Authentication Method and Access Policy as required and click Next Step.

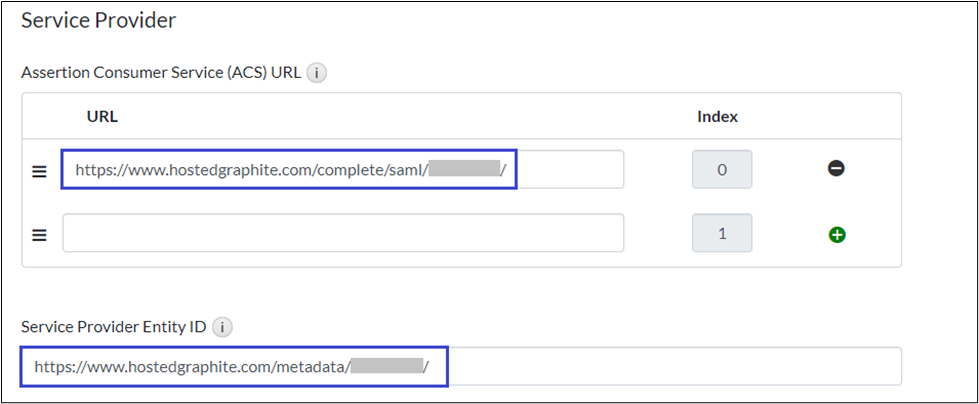

7. Provide the Service Provider details in the following format:
   1. ACS URL: https:  https://www.hostedgraphite.com/complete/saml/<UserID>/
   2. Service Provider Entity ID: https://www.hostedgraphite.com/metadata/<UserID>/
      Refer to the Configure Hosted Graphite section to obtain the UserID.

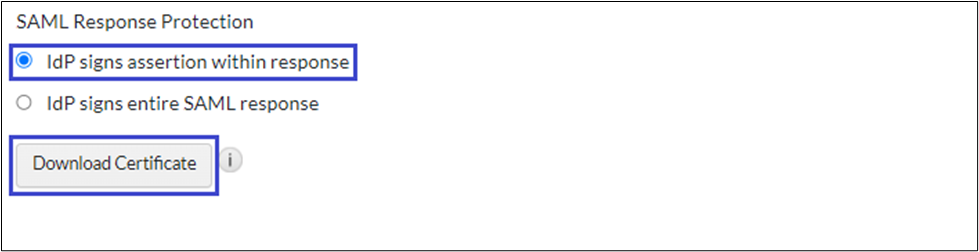

8. In the SAML Response Protection section, choose IdP signs assertion within response.
9. Download the certificate by clicking Download Certificate.
10. Click Show Advanced Configuration.

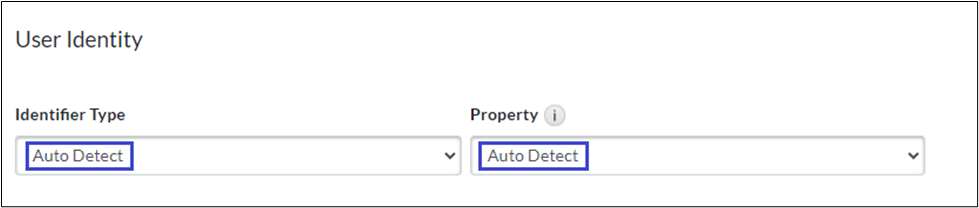

11. Under the User Identity section, configure Identifier Type and Property. For example, Identifier Type: Auto Detect and Property: Auto Detect.

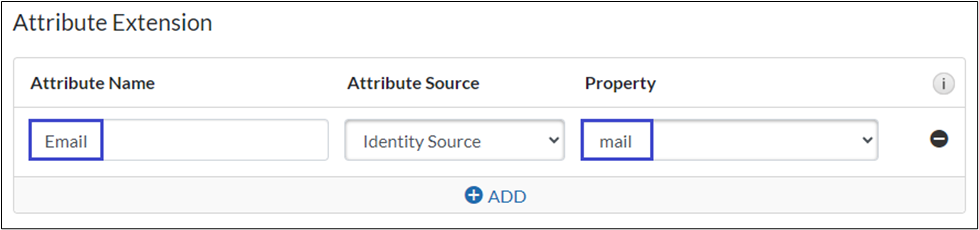

12. Add the Attribute Extension as shown in the following figure.
13. Click Save and Finish.

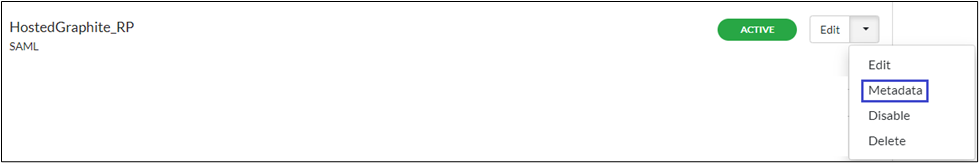

14. On the My Relying Parties page, click the Edit drop-down icon and select the Metadata option to download the metadata.

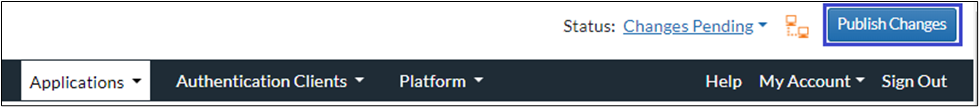

15. Click Publish Changes. Your application is now enabled for SSO.

Configure Hosted Graphite

1. Log on to Hosted Graphite.

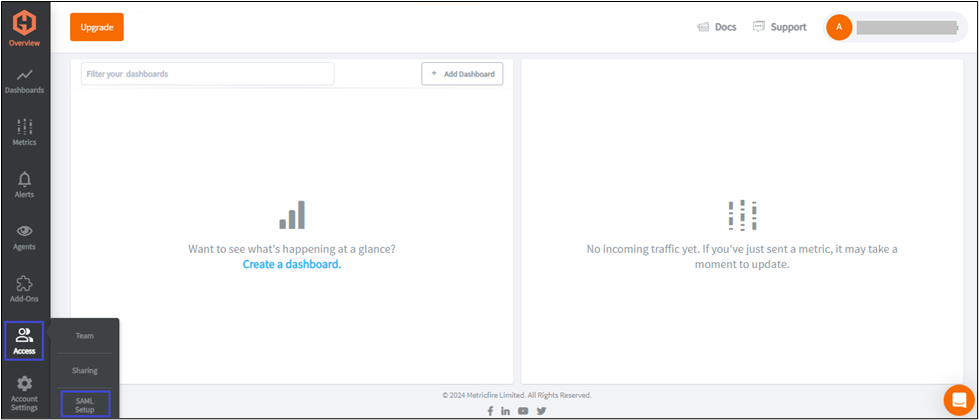

2. Navigate to Access and select SAML Setup.

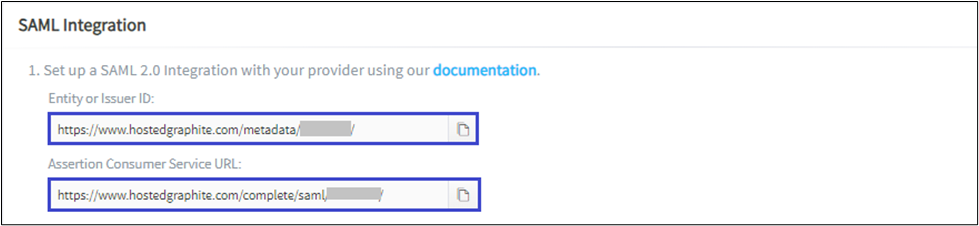

3. Copy the Entity ID and Assertion Consumer Service URL from which UserID is obtained for Identity Provider configuration.

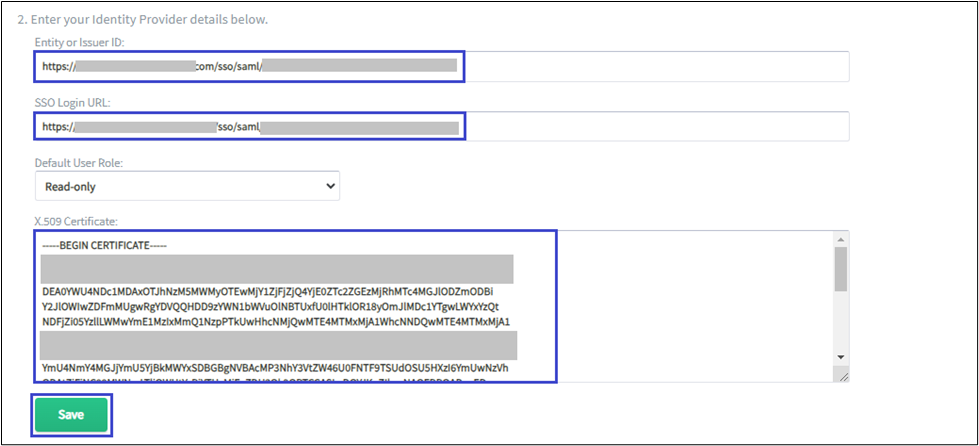

4. Enter Identity Provider details:
   1. Entity or Issuer ID: The Entity ID value that can be obtained from the metadata file downloaded from RSA.
   2. SSO Login URL: The SingleSignOnService value that can be obtained from the metadata file downloaded from RSA.
   3. X509 Certificate: Copy and paste the certificate downloaded from RSA.
   4. Click Save. The following message appears.
