IBM QRadar - SAML My Page SSO Configuration - RSA Ready Implementation Guide
2 years ago
This article describes how to integrate IBM QRadar with RSA Cloud Authentication Service using My Page SSO.

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service using My Page SSO.
Procedure
  1. Sign in to the RSA Cloud Administration Console with administrator credentials.
  2. Enable SSO on the My Page portal by accessing the RSA Cloud Administration Console > Access > My Page > Single Sign-On (SSO). Ensure it is enabled and protected by two-factor authentication using a Password and Access Policy.image.png

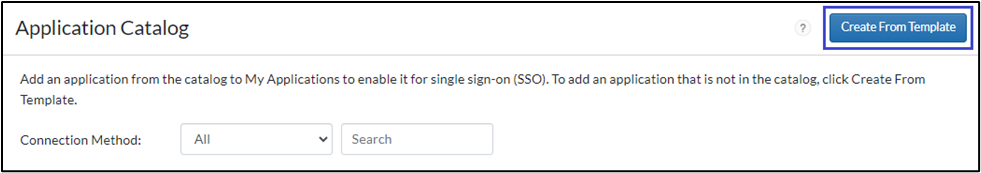

  3. On the Applications > Application Catalog page, click on Create From Template.image.png

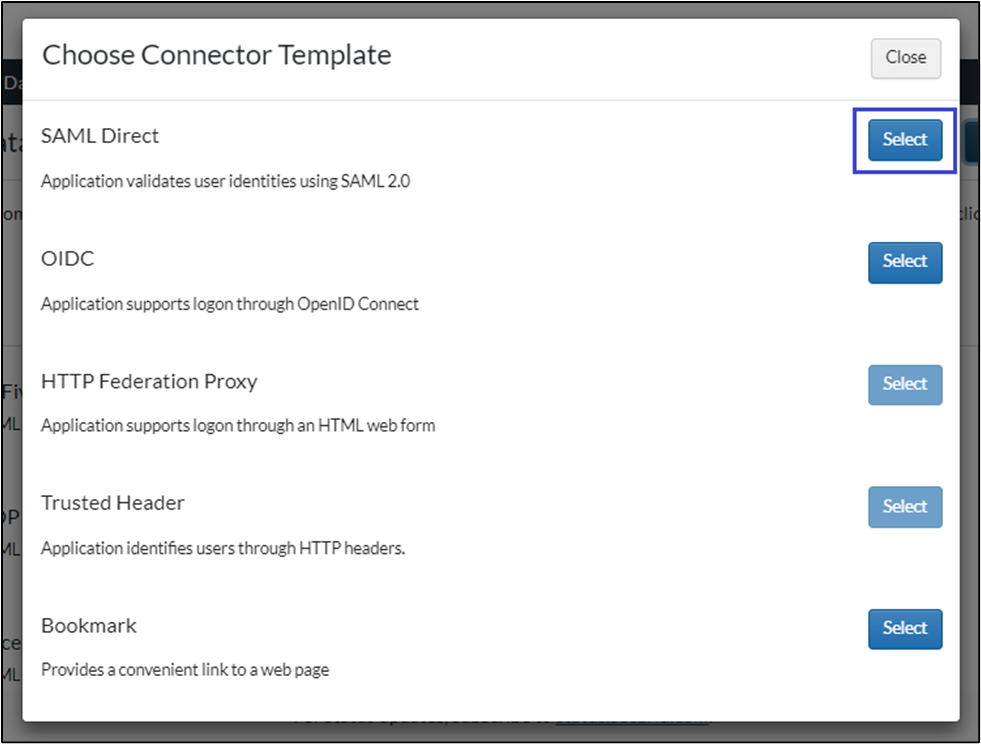

  4. On the Choose Connector Template page, click Select for SAML Direct.image.png

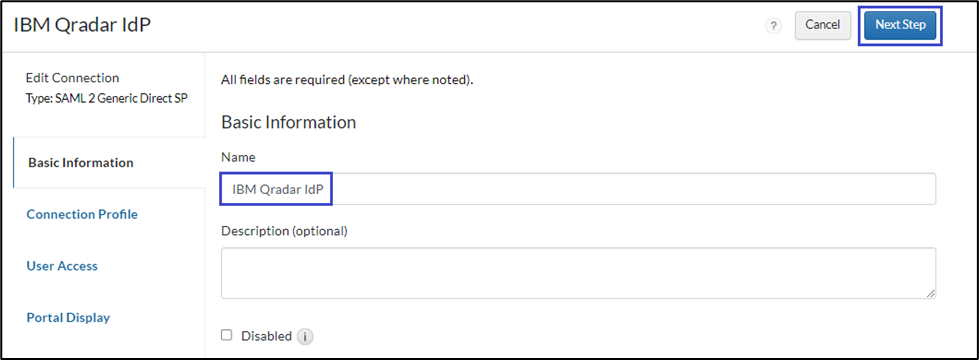

  5. On the Basic Information page, enter a name for the configuration in the Name field and click Next Step.image.png

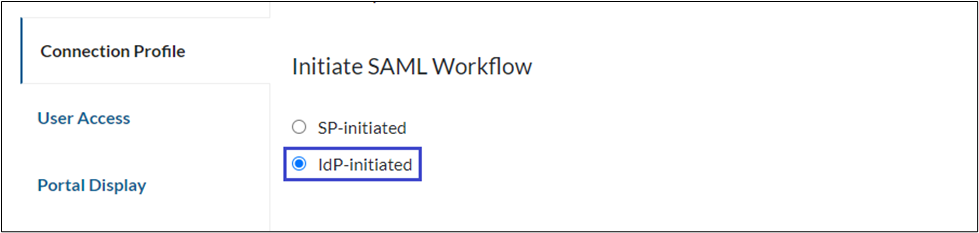

  6. In the Connection Profile section, select IdP-initiated option.image.png

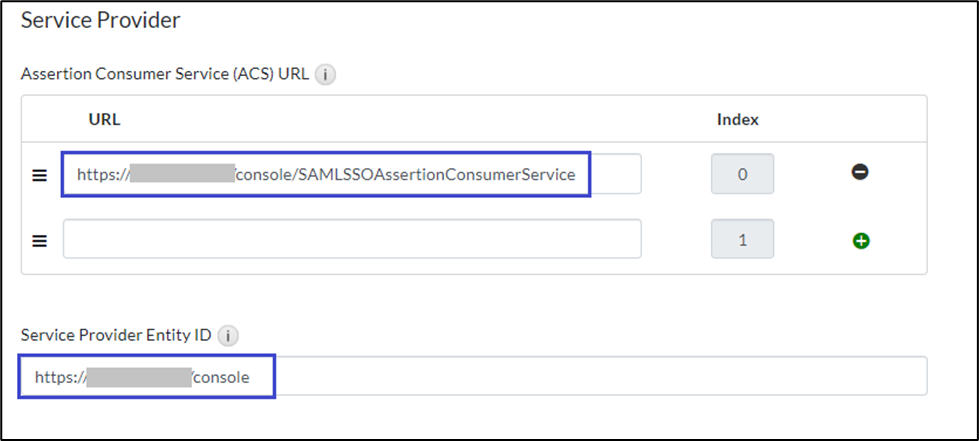

  7. Provide the Service Provider details in the following format:
    1. Assertion Consumer Service (ACS) URL: https://<IP address or FQDN>/console/SAMLSSOAssertionConsumerService.
    2. Service Provider Entity ID: https:// <IP address or FQDN>/console.

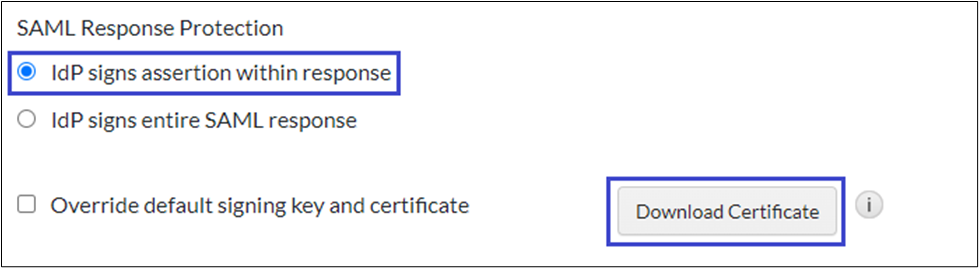

  1. In the SAML Response Protection section, select IdP signs assertion within response, and download the certificate by clicking Download Certificate.image.png
  2. Under the User Identity section, select Show Advanced Configuration, then configure Identifier Type and Property as follows:
    1. Identifier Type: Auto Detect
    2. Property: Auto Detect
  1. Click Next Step.

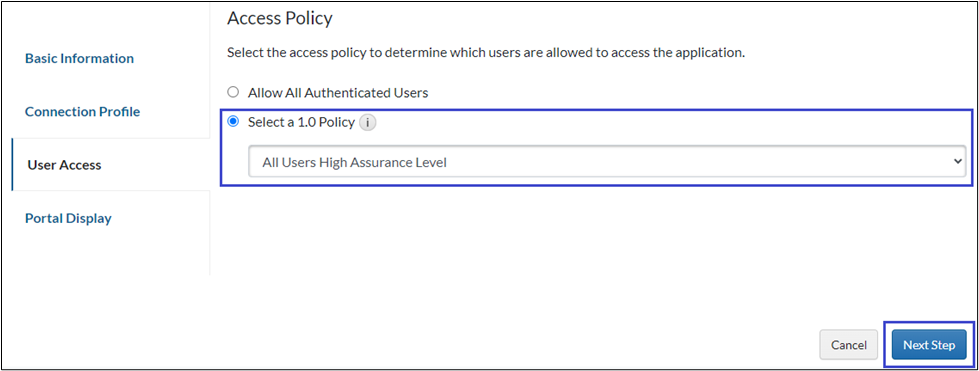

  2. Choose your desired Access Policy for this application and click Next Step > Save and Finish.image.png

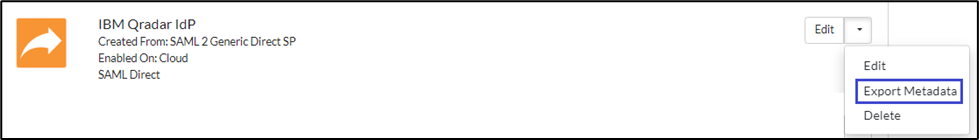

  3. On the My Applications page, click the Edit dropdown and select Export Metadata to download the metadata.image.png
  4. Click Publish Changes to save your settings. After publishing, your application will be enabled for SSO.image.pngimage.png


Configure IBM QRadar

Perform these steps to configure IBM QRadar.
Procedure
  1. Log in to IBM QRadar using admin credentials.

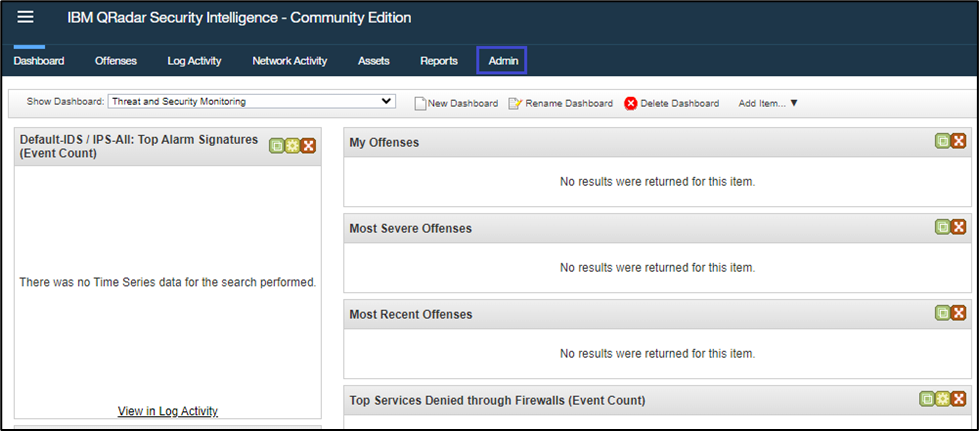

  2. Click the Admin tab.

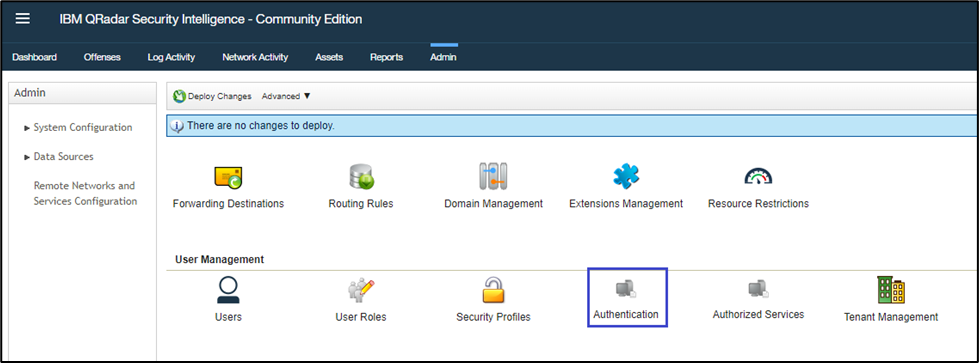

  1. In the User Management section, select Authentication.

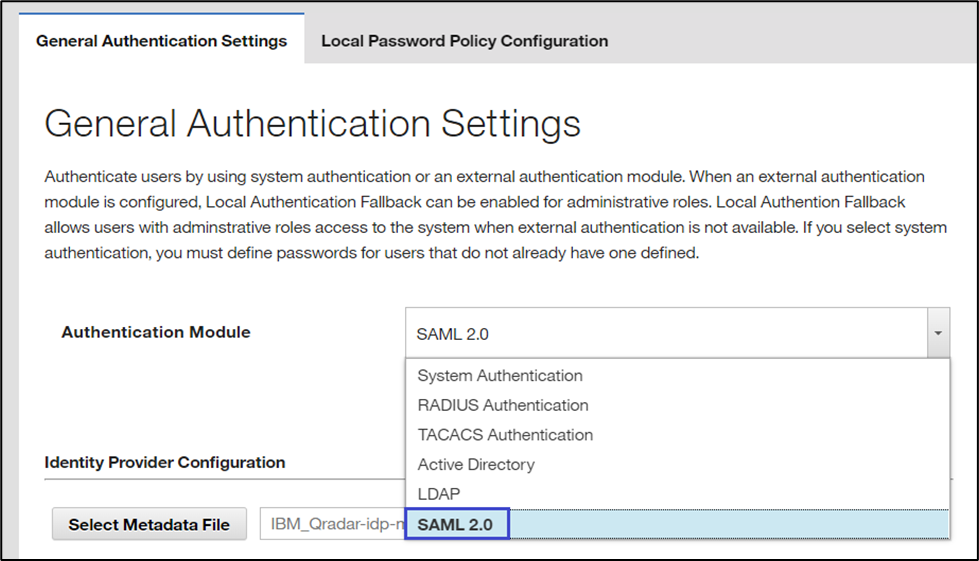

  1. In the General Authentication Settings tab, choose SAML 2.0 from the Authentication Module dropdown menu.image.png

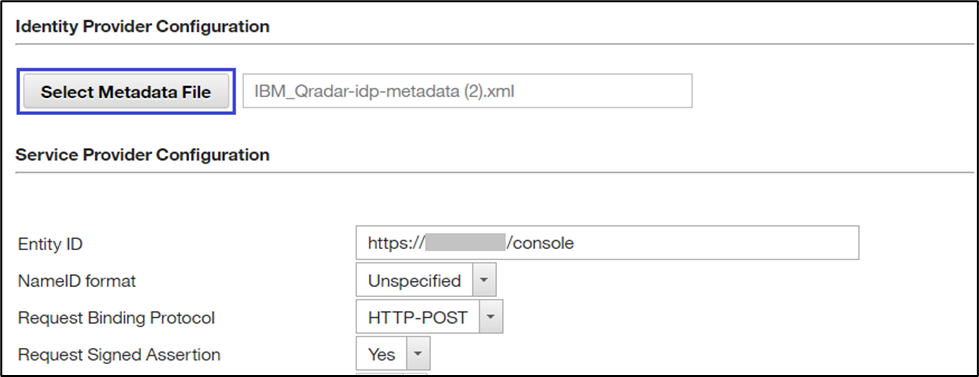

  2. Click Select Metadata File and upload the metadata file downloaded from the RSA platform.image.png

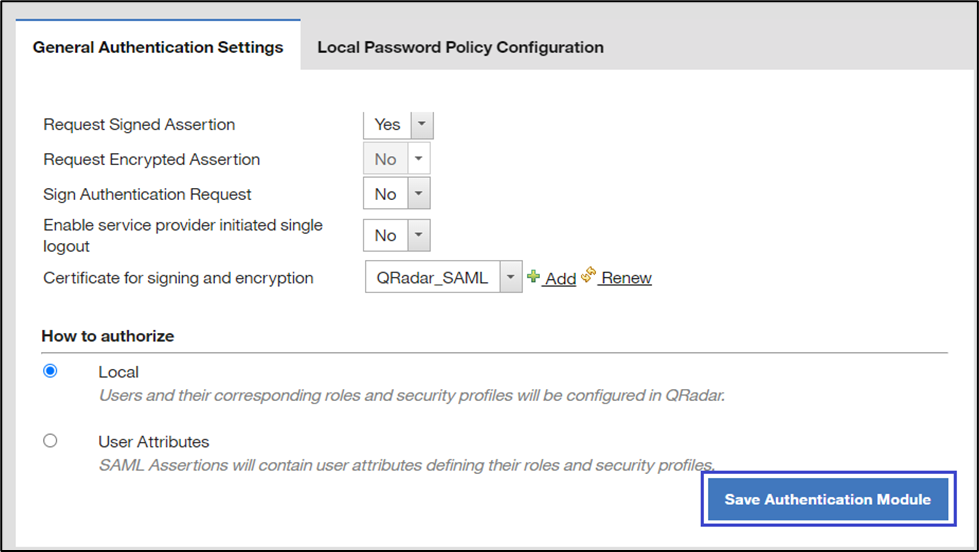

  3. Leave the remaining configuration at their default values. Scroll to the bottom and click Save Authentication Module.image.png

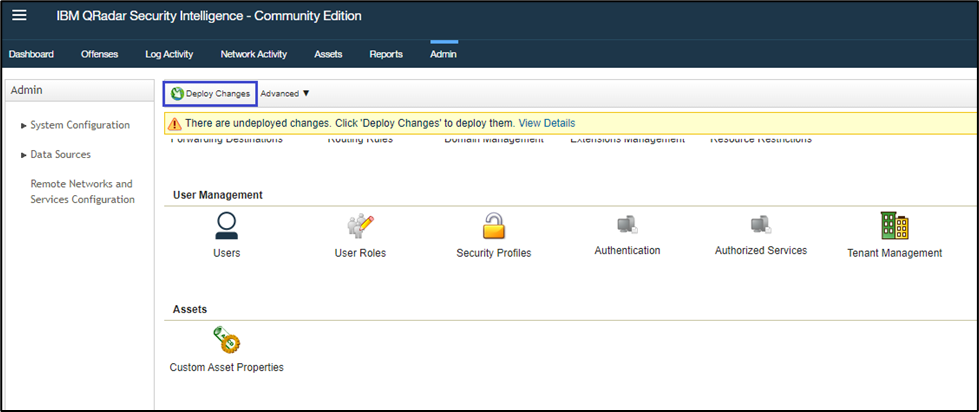

  4. Click Deploy Changes.

The configuration is complete.
