Configure RSA Cloud Authentication Service

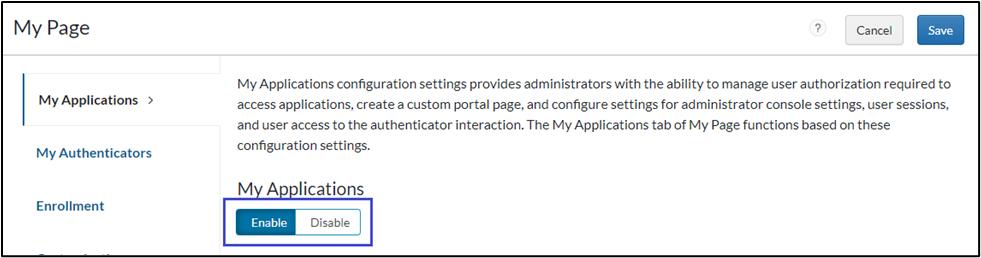

1. Enable My Page SSO by accessing the RSA Cloud Administration Console > Access > My Page > Single Sign-On (SSO). Ensure it is enabled and protected using two-factor authentication - Password and Access Policy.

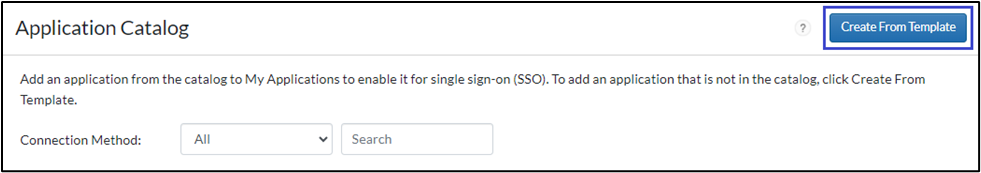

2. On the Applications > Application Catalog page, click Create From Template.

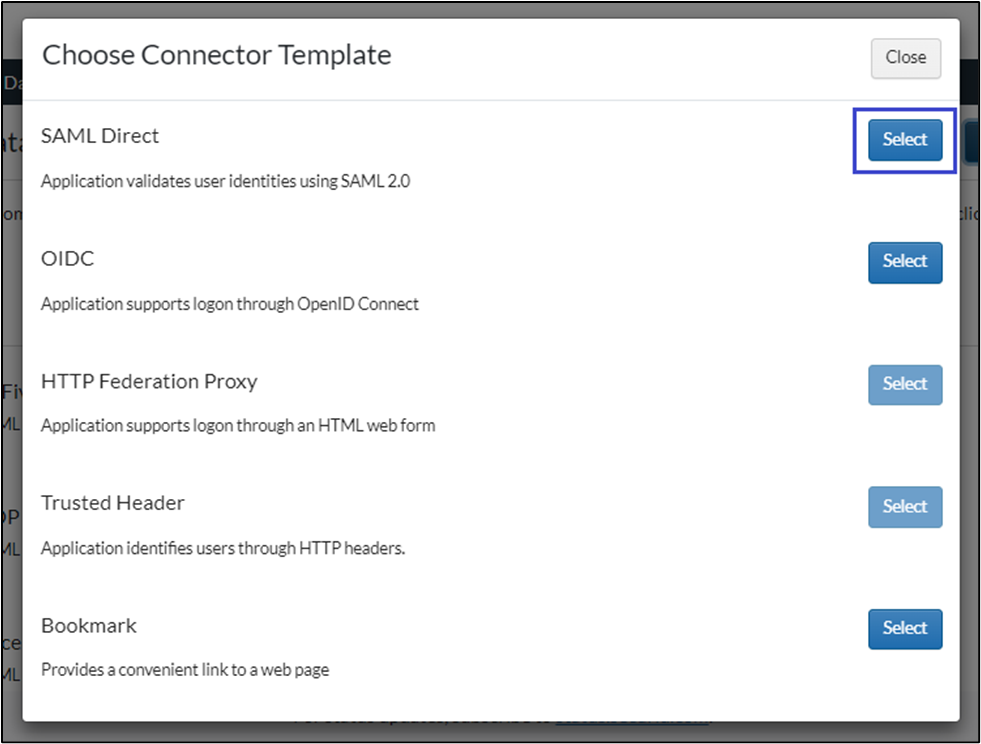

3. Click Select for SAML Direct.

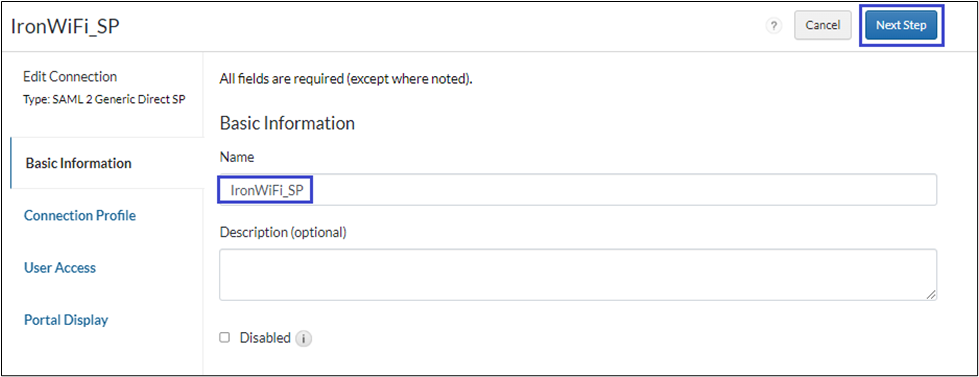

4. On the Basic Information page, enter a name for the configuration in the Name field and click Next Step.
5. On the Connection Profile page:

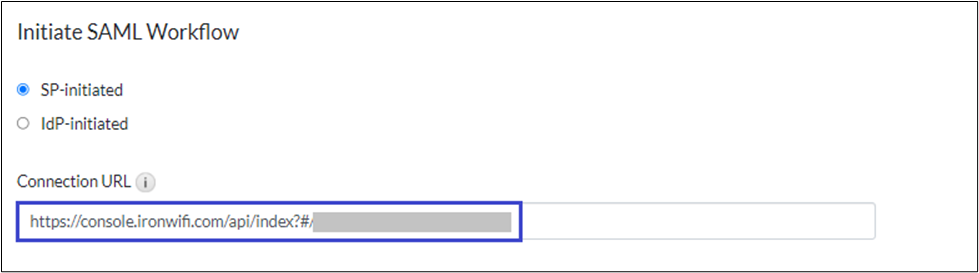

   1. Click the SP-initiated option.
   2. In the Connection URL field, provide the landing URL - https://console.ironwifi.com/api/index?#/dashboard.

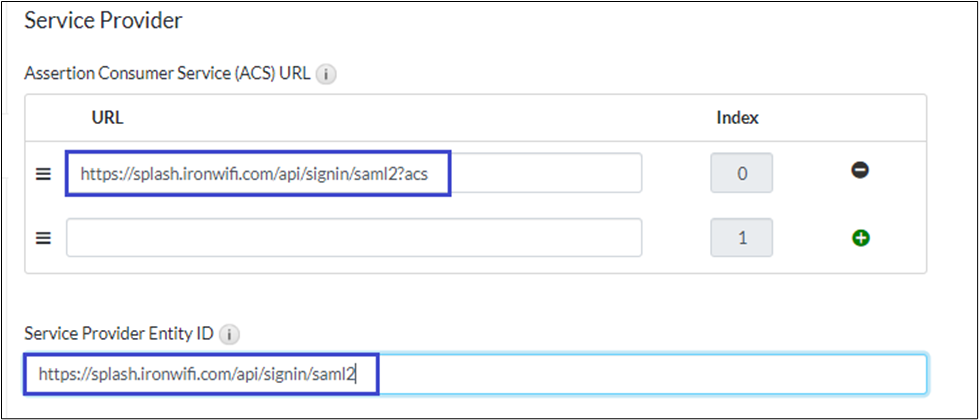

6. Provide the Service Provider details in the following format:
   1. ACS URL: https://splash://ironwifi/api/signin/saml2?acs
   2. Service Provider Entity ID: https://splash://ironwifi/api/signin/saml2
      Refer to the Configure IronWiFi section to obtain the ACS URL and Entity ID.

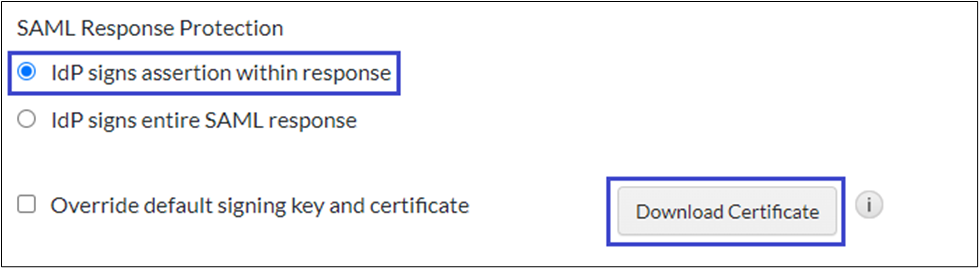

7. In the SAML Response Protection section, choose IdP signs assertion within response.
8. Download the certificate by clicking Download Certificate.
9. Click Show Advanced Configuration.

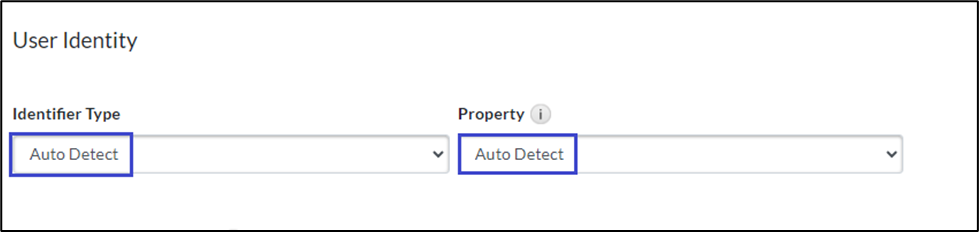

10. Under the User Identity section, configure Identifier Type and Property. For example, Identifier Type: Auto Detect and Property: Auto Detect.

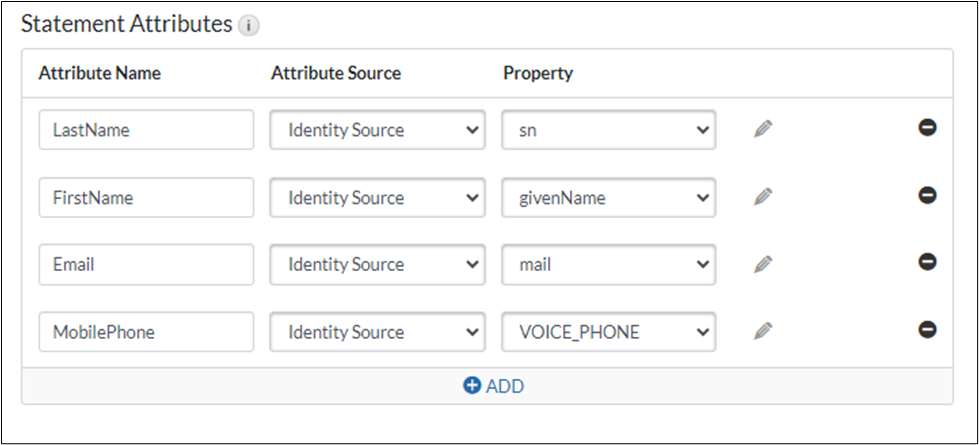

11. Under the Statement Attributes section, add the following attributes.
    1. Attribute Name: LastName,  Attribute Source: Identity Source, Property: sn
    2. Attribute Name: FirstName,  Attribute Source: Identity Source, Property: givenName
    3. Attribute Name: Email,  Attribute Source: Identity Source, Property: mail
    4. Attribute Name: MobilePhone,  Attribute Source: Identity Source, Property: VOICE_PHONE
12. Click Next Step.

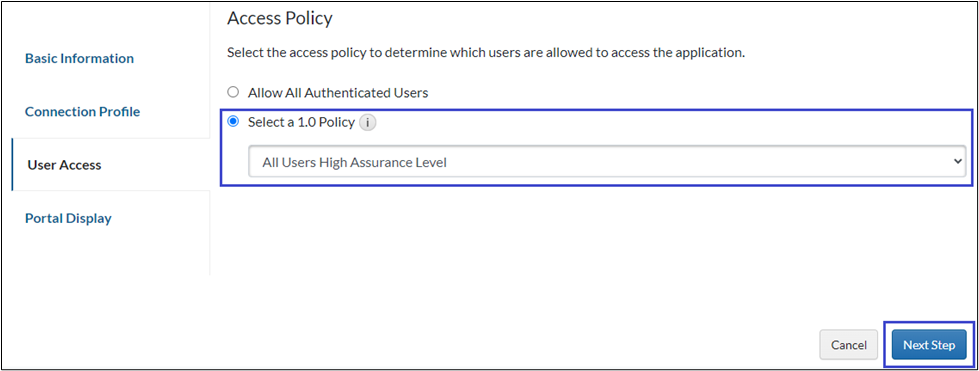

13. Choose your desired Access Policy for this application and click Next Step > Save and Finish.

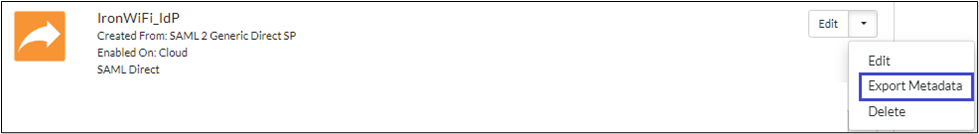

14. On the My Applications page, click the Edit drop-down icon and select Export Metadata to download the metadata.
15. Click Publish Changes. Your application is now enabled for SSO.

Configure IronWiFi

1. Log on to IronWiFi account with administrator credentials.

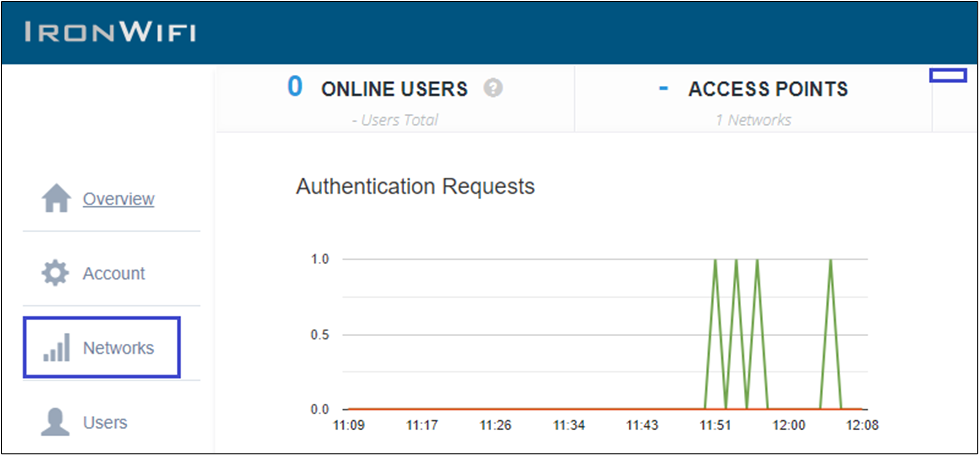

2. In the left pane, click Networks.

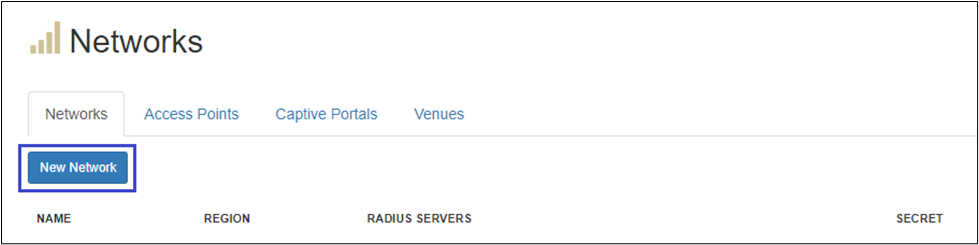

3. In the Networks section, click New Network.

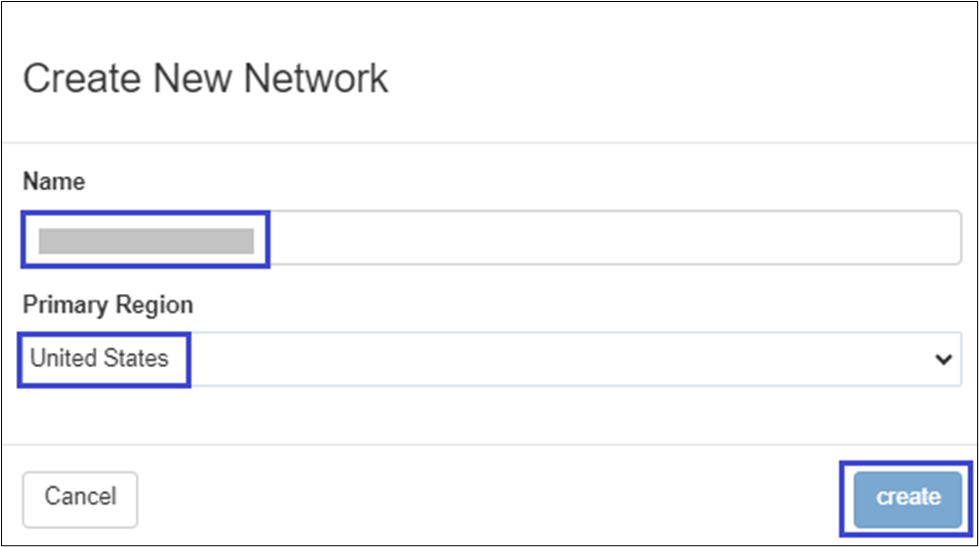

4. In the Create New Network section, provide the following details and click create.
   1. Name: Provide a unique name for your network.
   2. Primary Region: Select the region based on your requirements.

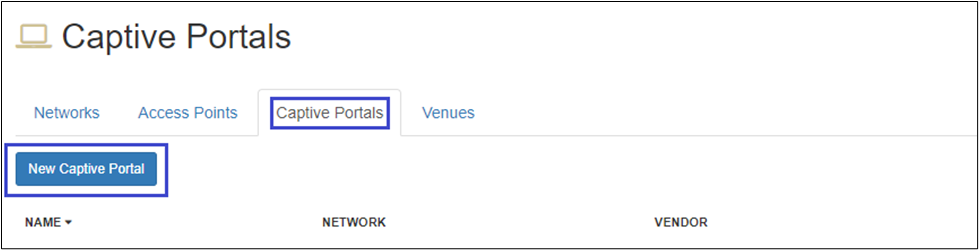

5. Navigate to the Captive Portals section and click New Captive Portal.

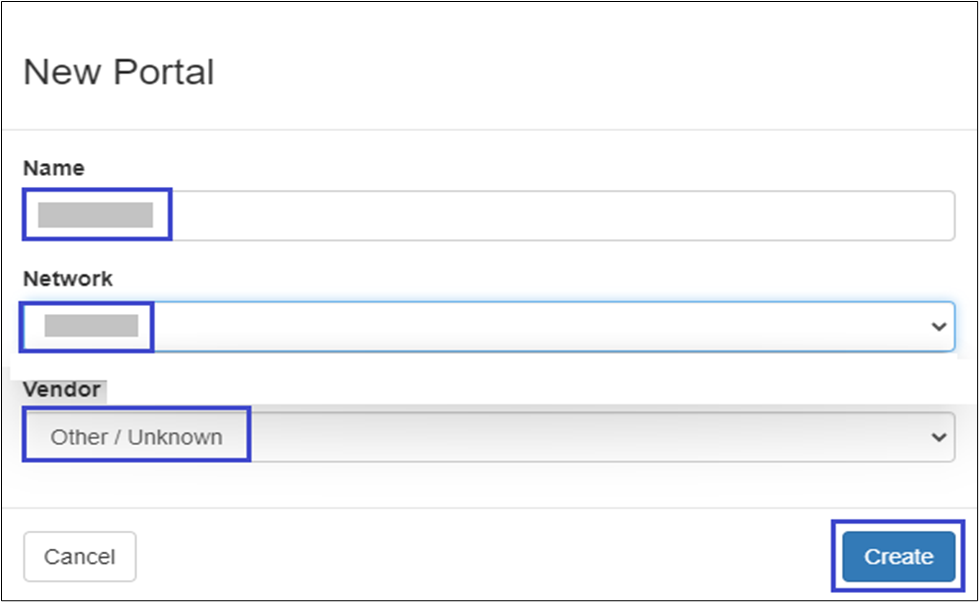

6. In the New Portal section, provide the following details and click Create.
   1. Name: Provide a unique name for your Name Portal.
   2. Network: Select the network that you created.
   3. Vendor: Select the vendor based on your requirements.

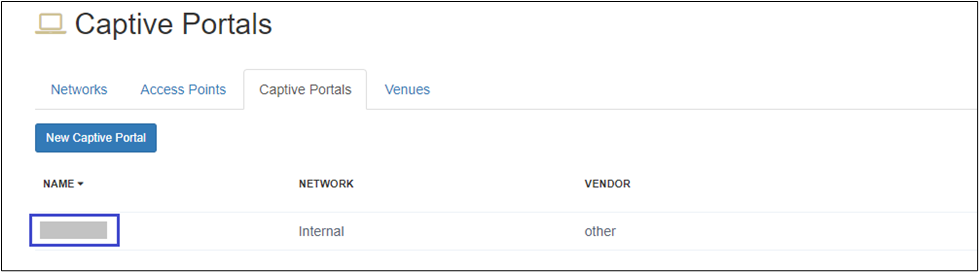

7. Under Captive Portal, click the portal that you have created.

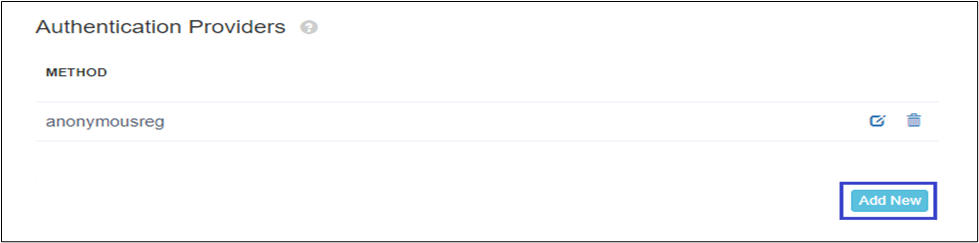

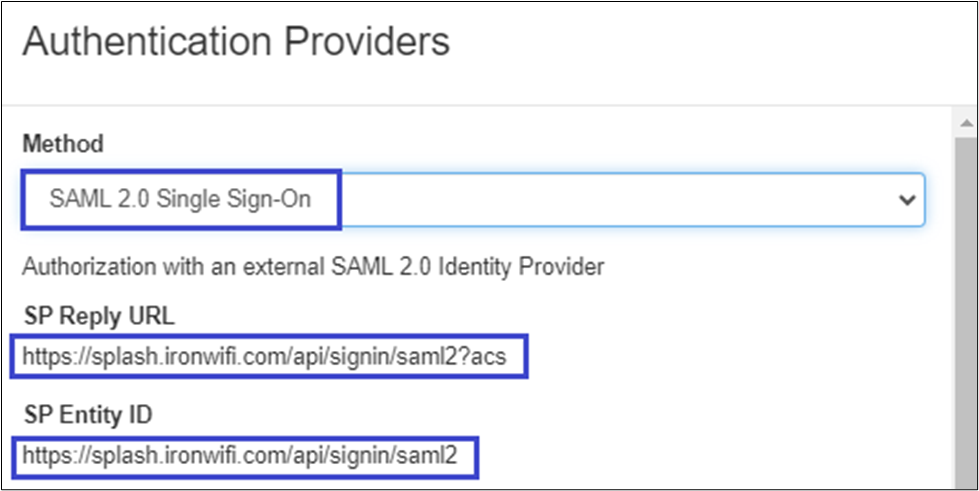

8. Navigate to the Authentication Providers and click Add New.
9. Provide the following details:
   1. Method: Select SAML 2.0 Single Sign-On.
   2. SP Reply URL: Copy the SP Reply URL and use it as the ACS URL in RSA.
   3. SP Entity ID: Copy the SP Entity ID and use it as Entity ID in RSA.

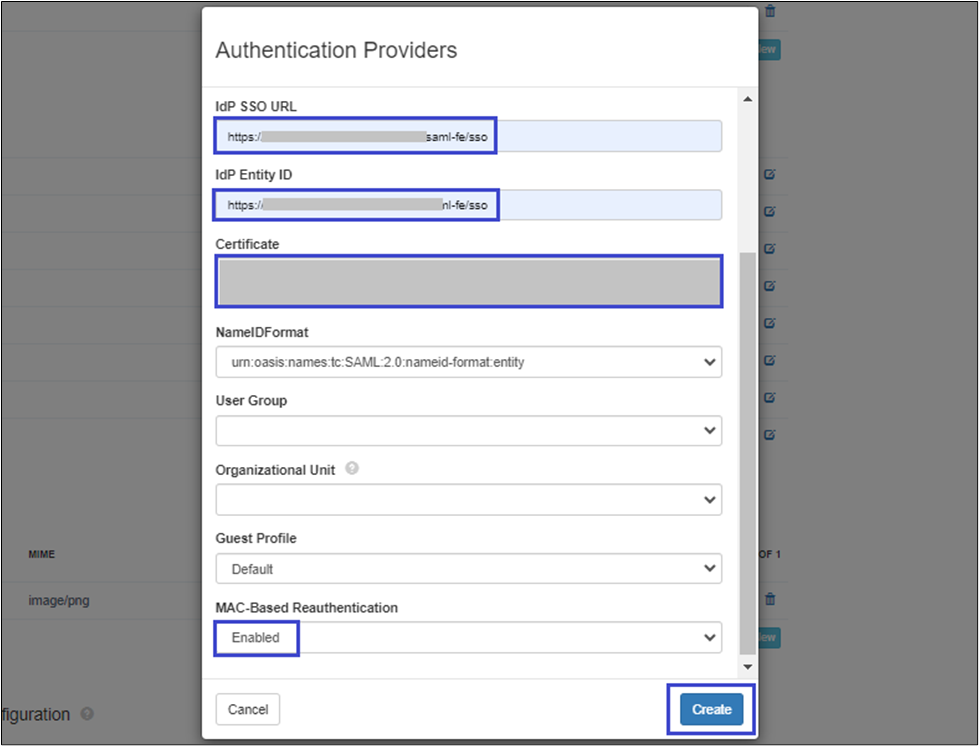

10. Provide the following details and click create.
    1. IdP SSO URL: The SingleSignOnService value that can be obtained from the metadata file downloaded from RSA.
    2. IdP Entity ID: The entityID value that can be obtained from the metadata file downloaded from RSA.
    3. Certificate: Copy and paste the certificate downloaded from RSA.
    4. MAC-Based Reauthentication: Select Enabled.

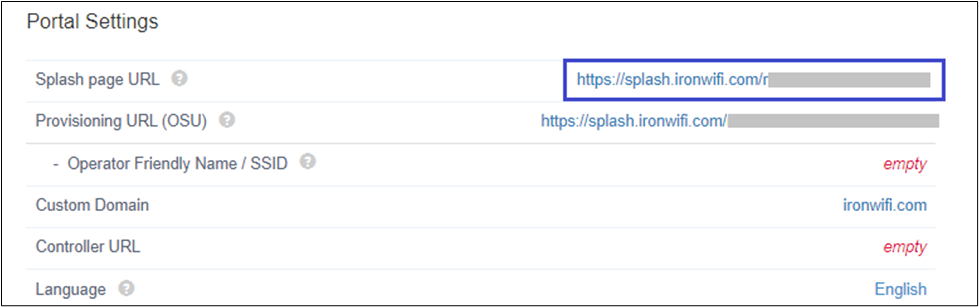

11. Use the Splash page URL as the designated Login URL.
