This section describes how to integrate SecurID Access with Microsoft Outlook Web Access using a HFED.

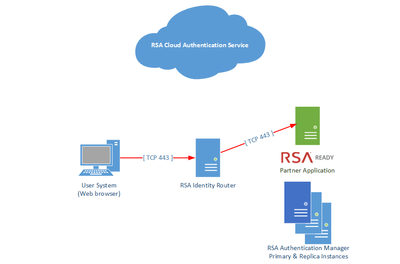

Architecture Diagram

Configure SecurID Access Cloud Authentication Service

Perform these steps to configure SecurID Access Cloud Authentication Service(CAS) with Microsoft Outlook Web Access as a HFED.

Before you begin

• Acquire an RSA SecurID Access super administrator account and an OWA end user account.

• Configure DNS canonical names (CNAMES) or aliases for the protected hostnames to the identity router. For example, exchange2013-exchange-pe-lab-net.sso3.pe-lab.com is a CNAME to exchange2013.exchange-pe-lab.net

Note:  You can use a wildcard CNAME to add an HFED application-protected hostname without creating individual DNS entry. For example, *.sso3.pe-lab.com s a CNAME to portal.sso3.pe-lab.com.

• Ask your Microsoft Exchange administrator to verify that your Microsoft Exchange server version is 2013 and that it’s running on Window 2008 R2 or later.

• Verify that OWA has been configured to use an SSL certificate that was generated from a trusted Certificate Authority (CA). Self-signed certificates are not supported.

Note:  The integration only supports SSL certificates that have been issued by a trusted CA. If your Microsoft Exchange 2013 server has been configured to use a self- signed SSL certificate for OWA client communication, your Microsoft Exchange administrator will need to replace the certificate. Consult Microsoft Exchange 2013 online documentation more information about configuring SSL for OWA and using a local Microsoft certificate authority, or a third party or commercial certificate authority to generate an SSL certificate: https://technet.microsoft.com/en-us/library/bb124558(v=exchg.150).aspx

• If your Microsoft Exchange 2013 server uses a local Microsoft CA, or an uncommon third- party or commercial CA for certificate signing, you must upload the CA’s root certificate to the IDR. For instructions and a list of CAs the IDR trusts out-of-the-box, see the RSA SecurID Access help documentation.

• Microsoft Exchange connections must use the TLS protocol (RSA highly recommends TLS 1.2) and at least one cipher that is supported by the IDR. Ask your Microsoft Exchange administrator to confirm that your Exchange server meets these requirements. For the current list of supported connection ciphers, see the RSA SecurID Access help documentation. Information about viewing, updating and prioritizing cryptographic protocols and cipher suites for Microsoft Exchange 2013 can be found on Microsoft TechNet . https://technet.microsoft.com.

• Confirm that you can log into your OWA end user account and access you folders, send/receive emails, view your calendar, etc.

Procedure

1. Sign into the SecurID Access Cloud Administration Console and browse to Applications > Application Catalog, search for Microsoft Outlook Web Access (OWA) 2013 and click +Add to add the connector.

2. Enter a name for the application in the Name field on the Basic Information page and click the Next Step button.

3.When the Branded Settings page is displayed, the Logon Form URL field will contain a URL with two placeholders variables as illustrated below.

Modify the URL value as follows:

1. Replace the <OWA.HOST.SERVER> placeholder with your Microsoft Exchange Server’s fully qualified hostname.

2. Replace the [:<PORT>] placeholder with the OWA listening port (preceded by a colon). If OWA is listening on port 443, simply remove [:<PORT>] from the URL. In this example, OWA is listening on 443, so the updated logon form URL would be

   https://exchange2013.exchange-pe-lab.net/owa/auth/logon.aspx

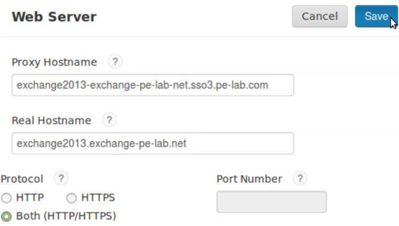

4. Scroll to the Web Servers table and click the pencil icon on the right hand side of the first row.

5. Enter the fully-qualified hostname of your proxy web server in the Proxy Hostname field. Do not include the internet protocol. Use a valid alias from the DNS database that points to the identity router hostname. For example: exchange2013-exchange-pe-lab-net.sso3.pe-lab.com

6. Enter the fully-qualified hostname of your Microsoft Exchange 2013 server in the Real Hostname field. Do not include the internet protocol. For example: exchange2013.exchange-pe-lab.net

7. If Microsoft Outlook Web Access 2013 is listening on https port 443, you can leave the Both (HTTP/HTTPS) radio button selected (default). If it is listening on a different https port, select the HTTPS radio button and enter the port number in the Port Number field.

8. Click the Save button.

9. Click the Next Step button.

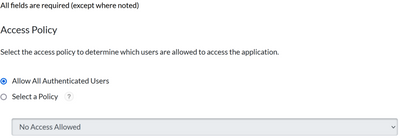

10. On the User Access page, select the access policy the identity router will use to determine which users can access Microsoft Outlook Web Access 2013 from the portal. If you want to allow access to all users who are signed in to the portal, select the Allow All Authenticated Users radio button. Otherwise, select the Select Custom Policy radio button and select the policy you want to use from the dropdown list.

11. Click the Next Step button.

12. Select the Display in Portal checkbox on the Portal Display page.

13. The Portal URL field will contain a URL with the <OWA-HOST-SERVER> placeholder variable as illustrated below:

Replace <OWA-HOST-SERVER> with the Microsoft Exchange server proxy host portion of your full proxy web server hostname (CNAME). In this example, the host alias is exchange2013-exchange-pe-lab.net and the proxy domain is sso3.pe-lab.com, so the updated portal URL would be:

https://exchange2013-exchange-pe-lab-net.sso3.pe-lab.com/owa/

14. f you want to allow users to change Oracle EBS credentials after configuring the connector, check Allow Users to Change Credentials checkbox

15. Click the Save and Finish button.

16. Click the Publish Changes button in the top left corner of the page.

Issue:

The Microsoft Outlook Web Access (OWA) 2013 HTTP Federation Proxy catalog application has been correctly configured.

However users cannot login to OWA from the application portal: The following message is seen:

Unsuccessful logon

Cause:

The connector is checking for English responses from the OWA application such as "Opening your mailbox." Responses in another language will cause the log on to fail.

Solution:

Instead of using the OWA 2013 catalog item, create a generic HFED application from a template:

1. Login to the Administration Console and navigate to Applications > My Applications > Add an Application > Create From Template > Choose HTTP Federation Proxy

2. Input a Name for your application and click Next Step.

3. Select Connection Method as Manual and click Next Step.

4. In the Connection Profile section enter:

• Logon Form URL: https:<your-OWA-server>/owa/auth/logon.aspx

• Logon Form Action: https://<your-OWA-server>/owa/auth.owa

• Logon Form Identifier : logonForm

• HTTP Request Type : post

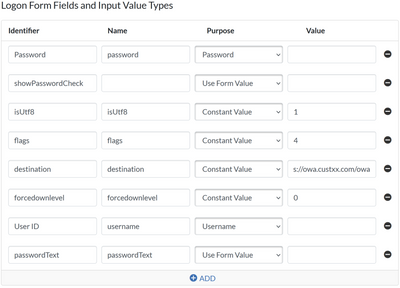

• Logon Form Fields and Input Value Types :

5. In Failure Detection, enter Indicator: VISIBLE_TEXT, Criteria: Does Not Contain, and Value: <string OWA returns for successful login>. For German, for example, this string is "the Postfach wird geoffnet"

6. Click Next Step.

7. In the Proxy Settings create two Web Servers, as follows:

• Proxy Hostname: help-outlook-com.<your-protected-domain-name>, Real Hostname: help outlook.com, Rewrite Rules: Substitute "s|help.outlook.com|help-outlook-com.%DOMAIN_NAME%|qin".

• Proxy Hostname: owa-hfed.<your-protected-domain-name>, Real Hostname: <your-OWA-server>, Rewrite Rules: Substitute "s|help.outlook.com|help-outlook-com.%DOMAIN_NAME%|qin".

• Custom Headers: Check Verify Certificates checkbox and click Next Step.

8. Set the User Access section as desired.

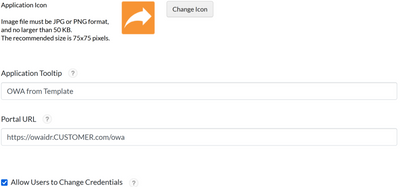

9. Set the Portal Display section as per below screenshot:

10. Click the Save and Finish button.

11. Click the Publish Changes button in the top left corner of the page.

Configure Microsoft Outlook Web Access

There are no partner-side configuration changes needed to enable integration with RSA SecurID Access.
