Pactflow - SAML Relying Party Configuration - SecurID Access Implementation Guide

This section describes how to integrate SecurID Access with Pactflow using Relying Party. Relying party uses SAML 2.0 to integrate SecurID Access as a SAML Identity Provider (IdP) to Pactflow SAML Service Provider (SP).

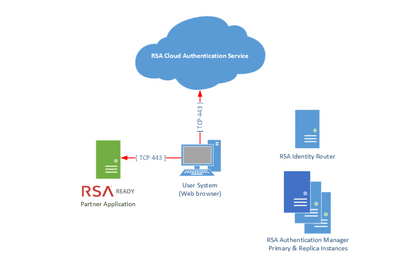

Architecture Diagram

Configure SecurID Access Cloud Authentication Service

Perform these steps to configure SecurID Access Cloud Authentication Service as a relying party SAML IdP to Pactflow .

Procedure

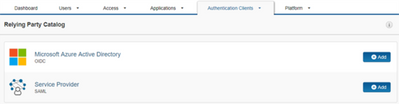

1. Sign into the Cloud Administration Console and browse to Authentication Clients > Relying Parties and click Add a Relying Party.









2. On Basic Information page enter a Name for the application, ie. Pactflow Then click on Next Step.

3. On Authentication page

   1. select the RSA SecurID Access manages all authentication

   2. Select the desired Primary Authentication Method from the dropdown list. i.e Password

   3. Select the desired policy from the Access Policy for Additional Authentication.

   4. Click Next Step

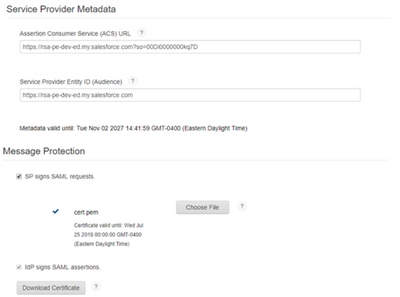

4. On Connection Profile page

   1. Enter the Assertion Consumer Service (ACS) This is found in the Pactflow documentation https://docs.pactflow.io/docs/user-interface/settings/authentication/#2-map-the-required-saml20-attributes Pactflow SAML configuration below..For example https://pact-saas-prod-1.auth.ap-southeast-2.amazoncognito.com/saml2/idpresponse

   2. Enter the Service Provider Entity ID This is found in the Pactflow documentation.For example urn:amazon:cognito:sp:ap-southeast-2_x0L1olP0D

   3. Click on Download Certificate

   4. Click on Choose File and upload the certificate just downloaded.  This same certificate will be used in the Pactflow configuration below.

   5. Expand Show Advanced Configuration To add the attributed defined in the Pactflow documenation.

   6. In Attribute Extension section click +ADD

   7. Add Attribute Name = http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname and Property = givenName

   8. Click +ADD again

   9. Add Attribute Name = http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname and Property = sn

   10. Click +ADD again

   11. Add Attribute Name = http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress and Property = mail

   12. Click on Save and Finish





5. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.





Configure Pactflow

Perform these steps to integrate Pactflow with SecurID Access as a Relying Party SAML SP.

Procedure

1. Email the downloaded metadata file to support@pactflow.io

2. Pactflow will configure the system on their end and notify when complete

   Test your Pactflow domain. https://<domain>.pactflow.io/

Configuration is complete.

Next Step: See main page for more certification information.
