Phrase - SAML SSO Agent Configuration - SecurID Access Implementation Guide

This section describes how to integrate SecurID Access with Phrase using a SAML SSO Agent.

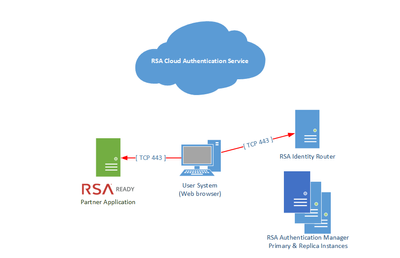

Architecture Diagram




Configure SecurID Access Cloud Authentication Service

Perform these steps to configure SecurID Access Cloud Authentication Service(CAS) as an SSO Agent SAML IdP to Phrase.

Procedure

  1. Sign into the SecurID Access Cloud Administration Console and browse to Applications > Application Catalog.

  2. Click on Create From Template then click Select for SAML Direct.

  3. On Basic Information page enter a Name for the application, ie. Phrase Then click on Next Step.

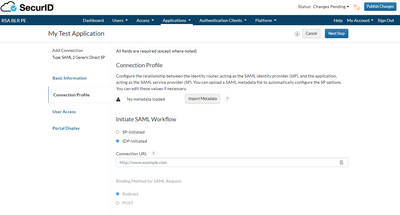

  4. On Connection Profile page.

      1. Choose IDP-Initiated.





    1. In Connection URL for IDP-Initiated take defaults.

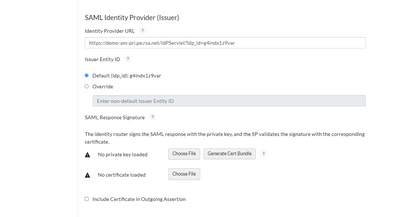

    2. Note the Identity Provider URL and Issuer Entity ID. These values are automatically generated. They may be needed later for the configuration of Phrase.




    3. Click on Generate Cert Bundle, set a a common name for your company certificate. Then click Generate and Download .

    4. Select Choose File and upload the private key from the generated certificate bundle.

    5. Select Choose File and upload the cert.perm from the generated certificate bundle.

    6. Select Include Certificate on Outgoing Assertion.

    7. Scroll down to Service Provider section.

    8. For the Assertion Consumer Service (ACS) Enter the value for the Single Sign-On Callback URL copied from in the Phrase configuration based on your instance of Phrase. For example, https://sso.phrase.com/account/auth/saml/callback?id=myinst.

    9. For the Audience (Service Provider Issuer ID) . Enter the value for the Identity Provider Issuer copied from in the Phrase based on your instance of Phrase. For example, https://app.phrase.com/accounts/myisnt/6608d009fad97256691bb1c85f0e61c6.

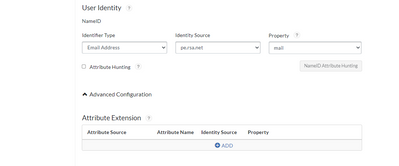

    10. Scroll down to User Identity section.

    11. Ensure Identifier Type = Email Address, set your Identity Source and Property = mail.




    12. Expand Advanced Configuration

    13. Under Attribute Extension click on +Add.

    14. For Attribute Name enter FirstName for Property choose givenName.

    15. Under Attribute Extension click on +Add.

    16. For Attribute Name enter LastName for Property choose sn.

    17. Note Property values may vary based on your specific configuration.

    18. Click Next Step.

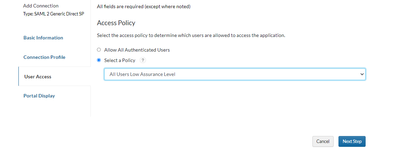

  5. On User Access page select the Access Policy you require. Allow All Authenticated Users is the least restrictive. Click Next Step.




  6. On Portal Display Page.

    1. Select Display in Portal.

    2. Upload an Application Icon if you wish.

    3. Set an Application Tooltip if you wish.

    4. Click on Save and Finish.

  7. For this new Connector, click on the down arrow next to the Edit button and Export Metadata to save off the IDP metadata information for configuration of Phrase.

  8. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.






Configure Phrase

Perform these steps to integrate Phrase as an SSO Agent SAML SP to SecurID Access Cloud Authentication Service.

Procedure

  1. Sign into Phrase and from PhraseApp and click on SSO.

  2. For SSO Settings click on Enable SSO .

  3. Copy the Single Sign-On Callback URL this is used in the configuration details needed for SecurID configuration.

  4. Copy the Single Sign-On Issure this is used in the configuration details needed for SecurID configuration.

  5. For the Identity Provider Settings section.

  1. For the Identity Provider Single Sign-On URL copy the value for Identity Provider URL from the SecurID configuration above.

  2. For the Identity Provider Issuer copy the value for Issuer Entity ID from the SecurID configuration above.

  1. For Identity Provider X.509 Certification copy and paste the contents of the certificate downloaded above during SecurID CAS configuration. This is the cert.perm file in the downloaded certificate bundle.

  2. Note that Auto Provisioning has to be enabled, in order to automatically set up a new Phrase account for users that don't have access to Phrase yet. Those user accounts will initially have a translator role with limited rights but can be changed by a Admin at any times. When clicking the Enforce SSO box, a password-based login won't be possible anymore.

  3. Save changes.

Configuration is complete.
