Proxyclick - SAML SSO Agent Configuration - SecurID Access Implementation Guide

This section describes how to integrate RSA SecurID Access with Proxyclick using a SAML SSO Agent.

Architecture Diagram

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service as an SSO Agent SAML IdP to Proxyclick.

Procedure

1. Sign into the RSA Cloud Administration Console and browse to Applications > Application Catalog.

2. Search for Proxyclick click on +Add.

3. On Basic Information page enter a Name for the application, ie. Proxyclick. Then click on Next Step.

4. On Connection Profile page.

   1. In Connection URL field, verify the default setting.

   2. Choose IDP-Initiated .

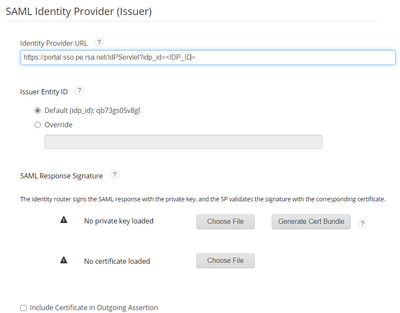

   3. Scroll down to SAML Identity Provider (Issuer) section.

   4. Note the Identity Provider URL and Issuer Entity ID. These values are automatically generated. They may be needed later for the configuration of Proxyclick

   5. For Issuer Entity ID select Override and copy the value from the Identity Provider URL field. For example, https://portal.sso.pe.rsa.net/IdPServlet?idp_id=1d3d5yjmjhmzx.

   6. Click on Generate Cert Bundle, set a a common name for your company certificate. Then click Generate and Download

   7. Select Choose File and upload the private key from the generated certificate bundle

   8. Select Choose File and upload the cert from the generated certificate bundle

   9. Select Include Certificate on Outgoing Assertion





   10. Scroll down to Service Provider section

   11. For the Assertion Consumer Service (ACS) field enter the value for SAML Consumer URL found below in the Proxyclick configuration . For example, https://saml.proxyclick.com/consume/CO-EFCP737.

   12. For the Audience (Service Provider Issuer ID) field enter the value for SAML SSO Redirect URL found below in the Proxyclick configuration . For example, https://saml.proxyclick.com/init/CO-EFCP737.

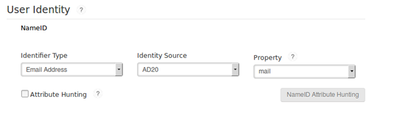

   13. Scroll down to User Identity section

   14. Ensure Identifier Type = Email Address, set your Identity Source and Property = mail





   15. Click on Show Advanced Configuration

   16. In the Uncommon Formatting SAML Response Options section, Select the Assertion within Response radio button.

   17. Click Next Step

5. On User Access page select the Access Policy you require. Allow All Authenticated Users is the least restrictive. Click Next Step





6. On Portal Display Page

   1. Select Display in Portal

   2. Upload an Application Icon if you wish

   3. Set an Application Tooltip if you wish.

   4. Click on Save and Finish

7. Browse to Application > My Applications

8. Locate newly create application for Proxyclick

9. Click on Down Arrow next to Edit button

10. Select Export Metadata. This will be used below for Proxyclick configuration.

11. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.





Configure Proxyclick

Perform these steps to integrate Proxyclick with RSA SecurID Access as a SAML SSO Agent.

Procedure

1. Sign into Proxyclick and browse to Settings > Integrations > SAML .

2. Note the SAML Consumer URL and SAML SSO Redirect URL values they will be used above in the RSA Cloud Authentication Service configuration above.

3. In the SAML Request Method choose HTTP Redirect.

4. Enter for the Issuer and SAML 2.0 Endpoint URL fields the Identity Provider URL field from the RSA CAS configuration . For example, https://portal.sso.pe.rsa.net/IdPServlet?idp_id=1d3d5yjmjhmzx.

5. In the Certificate field paste the contents of the cert.pem file generated from the Security Bundle in CAS above.

6. Click on Save



Configuration is complete.
