Terminus - SAML Relying Party Configuration - SecurID Access Implementation Guide

This section describes how to integrate SecurID Access with Terminus using Relying Party. Relying party uses SAML 2.0 to integrate SecurID Access as a SAML Identity Provider (IdP) to Terminus SAML Service Provider (SP).

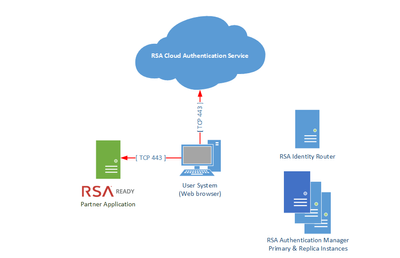

Architecture Diagram

Configure SecurID Access Cloud Authentication Service

Perform these steps to configure SecurID Access Cloud Authentication Service(CAS) as a relying party SAML IdP to Terminus .

Procedure

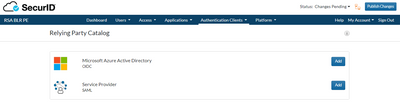

1. Sign into the Cloud Administration Console and browse to Authentication Clients > Relying Parties and click Add a Relying Party. Then select Add for a SAML service provider.









2. On Basic Information page enter a Name for the application, ie. Terminus Then click on Next Step.

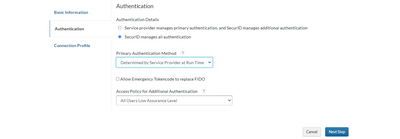

3. On Authentication page.

   1. select the RSA SecurID Access manages all authentication.

   2. Select the desired Primary Authentication Method from the dropdown list.

   3. Select the desired policy from the Access Policy for Additional Authentication.

   4. Click Next Step.

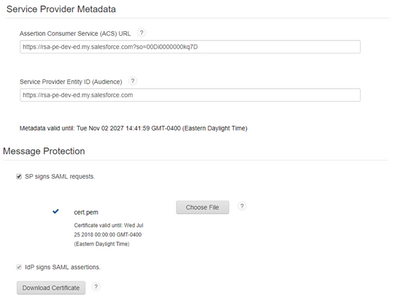

4. On Connection Profile page.

   1. Under the Service Provider Metadata section.





   2. Enter the Assertion Consumer Service (ACS) . Enter the value for the Assertion Consumer Service (ACS) URL from the Terminus configuration. For example, https://app.terminusapp.com/auth/saml/callback?uid=acct_QaprrsFnw3.

   3. Enter the Service Provider Entity ID. Enter the value for the Service Provider Entity ID from the Terminus configuration.For example, https://app.terminusapp.com/acct_QaprrsFnw3.

   4. Click on Download Certificate. This will be used below in the Terminus configuration.

   5. Click on Choose File and upload the certificate just downloaded.  This same certificate may be used in the Terminus configuration below.

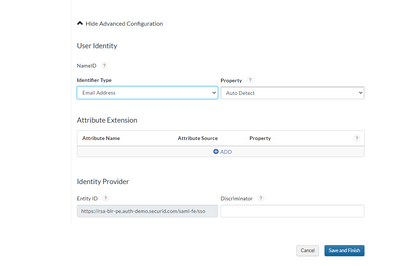

   6. Open Advanced Configuration section.

      '



   7. For Identifier Type Email Address choose mail for the Property.

   8. Note the Identity Provider Entity ID field . For Example :https://rsa-inst-pe.auth-demo.securid.com/saml-fe/sso.

   9. Click on Save and Finish.

5. Browse to Authentication Clients > Relying Parties

6. Scroll down to the your newly created Relying party and click down arrow to Edit and choose View or Download IdP MetatData and save off the metadata information if desired.





7. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.





Configure Terminus

Perform these steps to integrate Terminus with SecurID Access as a Relying Party SAML SP.

Procedure

1. Sign into Terminus and select  Account Name click on Account Setttings .

2. Click on Single Sign On tab.

3. In the Configure this in your Identity Provider section note the following.

   1. Assertion Consumer Service (ACS) URL. For example, https://app.terminusapp.com/auth/saml/callback?uid=acct_QaprrsFnw3.

   2. Service Provider Entity ID. For example, https://app.terminusapp.com/acct_QaprrsFnw3.

4. Select the Enable SAML SSO checkbox.

5. For Identity Provider Single Sign-On URL or SAML 2.0 Endpoint copy the Identity Provider Entity ID from the above in the SecurID CAS configuration. For example, https://my-rsa-securid.auth-demo.securid.com/saml-fe/sso.

6. For SSO Identity Provider Certificate Copy and paste the contents of the certificate saved above in the SecurID CAS configuration.

7. Click on Save.

Configuration is complete.

Next Step: See main page for more certification information.
