SmartBear  Bugsnag - SAML Relying Party Configuration - SecurID Access Implementation Guide

This section describes how to integrate SecurID Access with Bugsnag using Relying Party. Relying party uses SAML 2.0 to integrate SecurID Access as a SAML Identity Provider (IdP) to Bugsnag SAML Service Provider (SP).

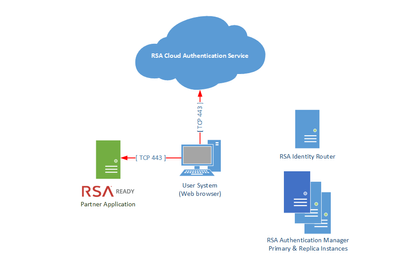

Architecture Diagram

Configure SecurID Access Cloud Authentication Service

Perform these steps to configure SecurID Access Cloud Authentication Service(CAS) as a relying party SAML IdP to Bugsnag .

Procedure

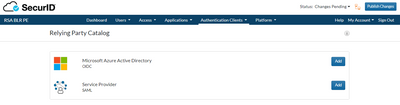

1. Sign into the Cloud Administration Console and browse to Authentication Clients > Relying Parties and click Add a Relying Party. Then select Add for a SAML service provider.









2. On Basic Information page enter a Name for the application, ie. Bugsnag Then click on Next Step.

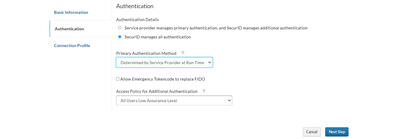

3. On Authentication page.

   1. select the RSA SecurID Access manages all authentication.

   2. Select the desired Primary Authentication Method from the dropdown list.

   3. Select the desired policy from the Access Policy for Additional Authentication.

   4. Click Next Step.





4. On Connection Profile page.

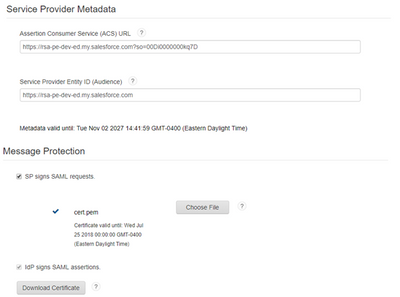

   1. Under the Service Provider Metadata section.





   2. Enter the Assertion Consumer Service (ACS) . Enter the value for the SAML Endpoint URL found in the Bugsnag configuration. This is based on your Bugsnag instance. The URL is in the form of https://app.bugsnag.com/user/sign_in/saml/<INSTANCE/acs. For example, https://app.bugsnag.com/user/sign_in/saml/rsamytest-3/acs.

   3. Enter the Service Provider Entity ID. Enter the value for the EntityID forBugsnag. This is https://app.bugsnag.com.

   4. Uncheck SP signs SAML Requests.

   5. Click on Download Certificate. This will be used below in the Bugsnag configuration.

   6. Click on Choose File and upload the certificate just downloaded.  This same certificate may be used in the Bugsnag configuration below.

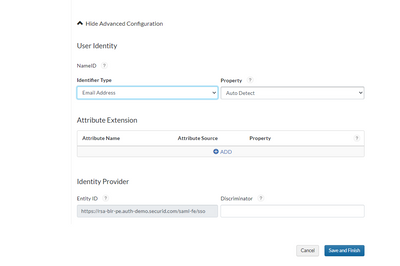

   7. Open Advanced Configuration section





   8. For Identifier Type Email Address choose mail for the Property.

   9. Note the Identity Provider Entity ID field . For Example :https://rsa-inst-pe.auth-demo.securid.com/saml-fe/sso.

5. Click on Save and Finish.

6. Browse to Authentication Clients > Relying Parties

7. Scroll down to the your newly created Relying party and click down arrow to Edit and choose View or Download IdP MetatData and save off the metadata for Bugsnag configuration.





8. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.





Configure Bugsnag

Perform these steps to integrate Bugsnag with SecurID Access as a Relying Party SAML SP.

Procedure

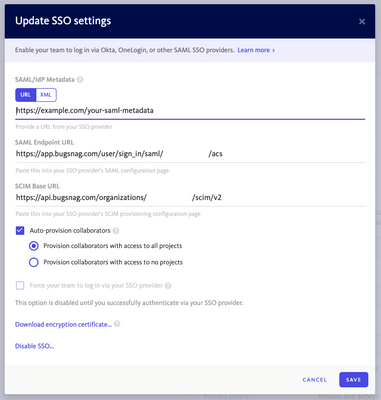

1. Sign into Bugsnag and select  Organization.

2. Goto Single sign-on.

3. Note the SAML Endpoint URL this information is used for the SecurID CAS configuration.

4. Based on how you saved off the IdP Metatdata from SecurID Access configuration. Either choose URL and paste the URL to the metatdata file or choose XML and load the XML from the metadata file.

5. Uncheck Auto-provision collaborators.



    

6. Select Enable SSO.

7. Click on Save.

Configuration is complete.

Next Step: See main page for more certification information.
