Originally Published: 2021-11-04



Bonusly - SAML SSO Agent Configuration - SecurID Access Implementation Guide

This section describes how to integrate SecurID Access with Bonusly using a SAML SSO Agent.

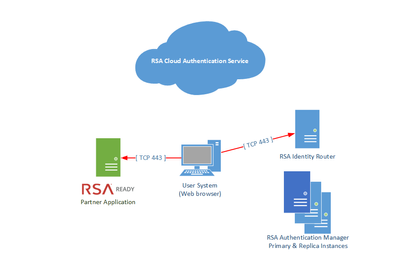

Architecture Diagram




Configure SecurID Access Cloud Authentication Service

Perform these steps to configure SecurID Access Cloud Authentication Service(CAS) as an SSO Agent SAML IdP to Bonusly.

Procedure

  1. Sign into the SecurID Access Cloud Administration Console and browse to Applications > Application Catalog.

  2. Search for Bonusly and click Add.

  3. On Basic Information page enter a Name for the application, ie. Bonusly Then click on Next Step.

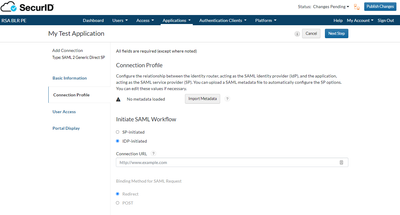

  4. On Connection Profile page.

      1. Choose IDP-Initiated or SP-Initiated .





    1. In Connection URL field enter the Single Sign-on URL from the Bonusly configuration below.

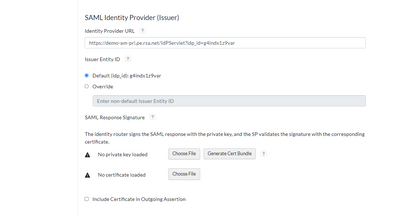

    2. Note the Identity Provider URL and Issuer Entity ID. These values are automatically generated. They may be needed later for the configuration of Bonusly.




    3. Click on Generate Cert Bundle, set a a common name for your company certificate. Then click Generate and Download .

    4. Select Choose File and upload the private key from the generated certificate bundle.

    5. Select Choose File and upload the cert from the generated certificate bundle.

    6. Select Include Certificate on Outgoing Assertion.

    7. Scroll down to Service Provider section.

    8. Enter the Assertion Consumer Service (ACS) Enter the value for the ACS URL from the Bonusly configuration. This is in the form https://bonus.ly/saml/<CompanyID>/consume. For example, https://bonus.ly/saml/mySecurID/consume.

    9. Enter the Audience (Service Provider Issuer ID) Enter the value for the Service provider entity ID from the Bonusly configuration. This is specific to the <CompanyID> for your Bonusly configuration. For example, mySecurID.

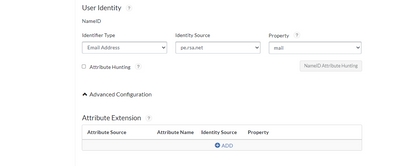

    10. Scroll down to User Identity section.

    11. Ensure Identifier Type = Email Address, set your Identity Source and Property = mail.




    12. Click Next Step.

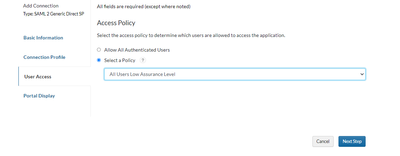

  5. On User Access page select the Access Policy you require. Allow All Authenticated Users is the least restrictive. Click Next Step.




  6. On Portal Display Page.

    1. Select Display in Portal.

    2. Upload an Application Icon if you wish.

    3. Set an Application Tooltip if you wish.

    4. Click on Save and Finish.

  7. For this new Connector, click on the down arrow next to the Edit button and Export Metadata to save off the IDP metadata information for configuration of Bonusly.

  8. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.






Configure Bonusly

Perform these steps to integrate Bonusly as an SSO Agent SAML SP to SecurID Access Cloud Authentication Service.

Procedure

  1. Sign into Bonusly and goto Integrations and select SAML integration.

  2. Obtain the Metadata from Bonusly by clicking on Download. This contains the SP information required to configure the SecurID Access CAS configuration above.

  3. If Automatically Configure from Metatdata, if the metadata exported from the SecurID Access CAS configuration is available via URL.

  4. For Manual configuration, uncheck Automatically Configure from Metatdata.

  1. For IDP SSO target URL copy the Identity Provider URL from the above in the SecurID CAS configuration. For example, https://portal.sso.pe.rsa.net/IdPServlet?idp_id=9nfo7bii265b.

  2. For IDP Issuer copy the Identity Provider URL from the above in the SecurID CAS configuration. For example, https://portal.sso.pe.rsa.net/IdPServlet?idp_id=9nfo7bii265b.

  3. For X.509 Cert Load the certificate or certificate fingerprint of saved above in the SecurID CAS configuration. This is the cert.pem from the downloaded certificate bundle from the SecurID Access CAS configuration above. Bonusly will automatically generate the fingerprint if the full X.509 certificate is provided.

  1. Save the Settings.

Configuration is complete.
