DLP Bootstrap failed when adding Network Controller in Enterprise Manager. Error connection to specified host timed-out
2 years ago
Originally Published: 2015-10-28
Article Number
000042765
Applies To
RSA Product Set: DLP
RSA Product/Service Type: Data Loss Prevention, Enterprise Manager, Network Controller
RSA Version/Condition: 9.6, 9.6 SP2
Platform: CentOS
O/S Version: EL6
Issue
Bootstrap error occurred when adding Network Controller failed on Enterprise Manager.
Possible cause of the issue include:
  • Communication issue to the Network Controller (e.g. DNS resolution issue, network issues, port not accessible)
  • Due to time synchronization between the Enterprise Manager and the Network Controller
Error message

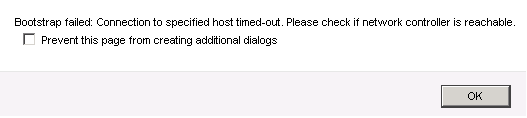

Bootstrap failed: Connection to the specified host timed-out. Please check if the network controller is reachable.

Sample screenshot
User-added image
Cause
  • Communication issue to the Network Controller (e.g. DNS resolution issue, network issues, port not accessible)
  • Due to time synchronization between the Enterprise Manager and the Network Controller
Resolution
Important Note: Ensure that time is synchronized across Network Controller and all the DLP Network components - Interceptor, Sensor and ICAP server
  1. Communication issue
  • Check and ensure the DNS can resolve the FQDN of the Network Controller
  • And ensure appropriate FQDN is configured when adding to Enterprise Manager
  • Ensure the port usage require are checked - Refer to DLP Network Deployment Guide for Port Usage
  1. Time synchronization issue
  • Log on to the Network Controller using tablus account
  • Adjust the time  by either configure NTP server (if available) or manually adjust the clock from tabmenu
  1. Using NTP:
From the tabmenu
Select 5) Configure
Select 3) Set timezone, clock, and timeserver​
Select 3) Configure ntp timeserver
Then select 1) Configure ntp timeserver
Follow the prompt to complete the ntp time server settings
  1. Manual adjust the clock:
From the tabmenu
Select 5) Configure
Select 3) Set timezone, clock, and timeserver​
Then select 2) Manually set the clock
Follow the prompt to complete the manual clock settings
  • In Enterprise Manager, re-add the Network Controller to the DLP Network configuration.
  • Successful boostrap will show the following message

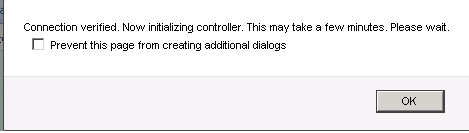

Connection verified. Now initializing controller. This may take a few minutes. Please wait.

Sample screenshot
User-added image
  • ​Should the certificate become invalid due to the time adjustments, please refer to the RSA DLP 9.6 Maintenance Guide for the certificate regeneration procedure
