Form approval node shows exception caught during script evaluation error in RSA Via Lifecycle and Governance
Originally Published: 2016-08-12
Last Modified: 2023-11-30
Article Number
Applies To
RSA Product/Service Type: Appliance
RSA Version/Condition: 7.0
Platform: Linux
Issue
Error - Exception caught during script evaluation. Script 'Node - Available Asynchronous',
ScriptID=3:WPDS, JobID=63277:WPDS, JobRef='4527', ProcessRef='WF_RR_6', JobRowVersion =7,
NodeName='Form Approvals', JobNodeID=1013125:WPDS, WorkItem=825143:WPDS:1,
FIFO=10083044. Exception was: com.workpoint.common.exception.ScriptEngineException:
InvocationTargetException caught when executing Java class. Command = '#Wed Oct 14 09:07:49
EDT 2009 Parameter6=SymbolTable Parameter5=ThisWorkItemData
JavaClass=com.aveksa.server.workflow.scripts.nodes.WorkflowNodeHandler
Parameter4=ThisActivityInstData Method=nodeAvailableAsynchronous
Parameter3=ThisJobNodeData Parameter2=ThisJobData Parameter1=ClientContext
ParameterType6=OpTypeNotSpecified UseInstanceObjectName=
ParameterType5=OpTypeNotSpecified ParameterType4=OpTypeNotSpecified
ParameterType3=OpTypeNotSpecified ParameterType2=OpTypeNotSpecified Version=1
ParameterType1=OpTypeNotSpecified UseInstance=false MethodIsStatic=true '; nested exception
is: org.hibernate.exception.SQLGrammarException: could not execute query Error occurred in
Statement #1 in Script ID 3:WPDS, Script Name = 'Node - Available Asynchronous', Script type =
'Action'. Job ID = 63277:WPDS, Process Ref = 'WF_RR_6', Node Name = 'Form Approvals',
WorkItem = 825143:WPDS:1
If we remove the form approval node in the workflow the request will go to the fulfillment process without errors.
- Create a custom form

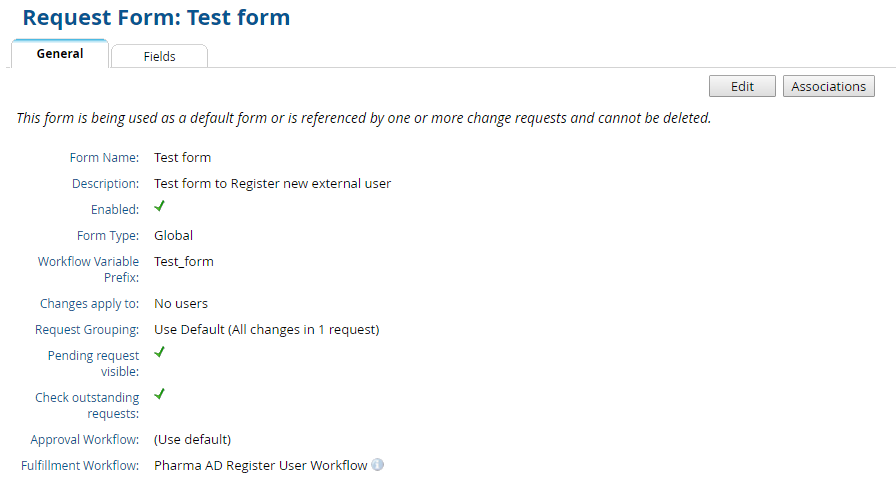

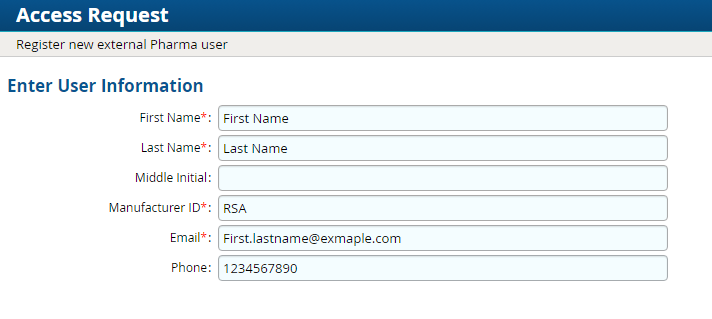

- Enter the required fields for the form, as shown here:
- Generate a request for the changes.

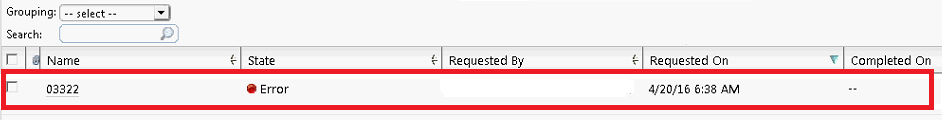

- The request is submitted and goes to an error state in few minutes, shown in the screen shots here:

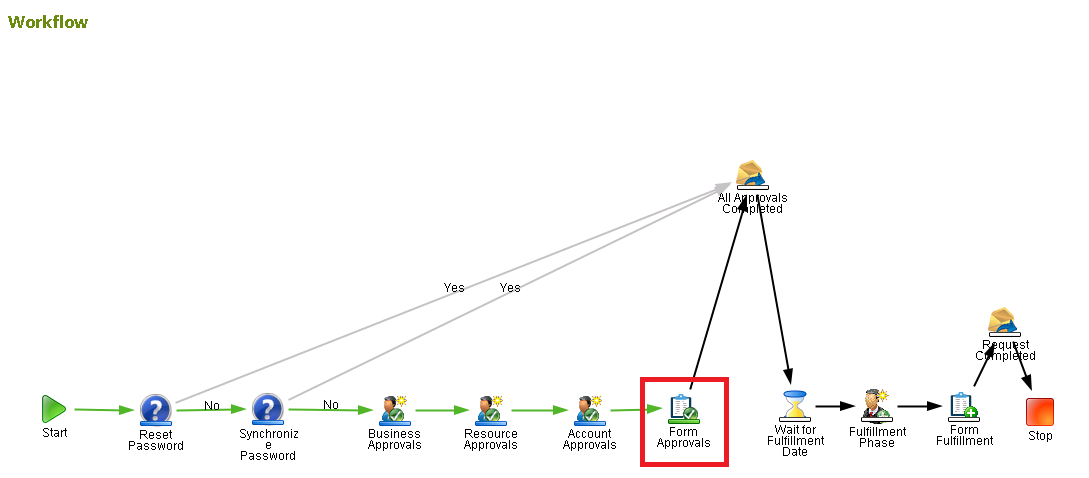

The workflow gets stuck in form approval node and will show the above error.
Resolution
