Version: V 7.2.x

Modules: Governance

Product Area: Tabular Reports - Dynamic (Applied to Review Results Object Dashboard)

Associated Dashboard:

Time to apply: ~20 minutes

Summary

This report provides key information about the review and overall stats/metrics that may be useful to know at a highlevel.

The goal of this report is to provide quick access to key information.

The report can be used by Review owners or the admin team to better understand the review overall and share key metrics to other stakeholders.

This report will only work when it is applied dynamically to the Review Results object dashboard.

Example Image (Click to enlarge)

Key Notes

• This chart/report/dashboard is supplied "as is" - any modification of this item is done at your own risk.
• If you have issues applying this chart/report/dashboard, please comment below for help, DO NOT contact the RSA Support team.
• If you would like more assistance with this chart/report/dashboard or for help in creating other chart/report/dashboards, then RSA Professional Services (RSA PS) is available to help.
  • Please contact your RSA Account Manager or local RSA Sales Rep or reply below for further assistance.

Details

This report includes various key data points about the review, to provide a high-level review summary.

Report Dynamic Values

The following value needs to be used when creating the report, however the value will update dynamically when used within the dashboard.

• TargetObjectID: This is used dynamically within the review itself, the value will automatically be updated, whenever you view a new review result. When viewing the report, you need to give it some value, so it can work against something. Please go to a review you have and find its "OID". Use this value in the TargetObjectID, so the report has something to use.

How to find an Example Target Object ID:

• Go to Review/Results
• Select any review (pick one that has been worked on, so there are some results)

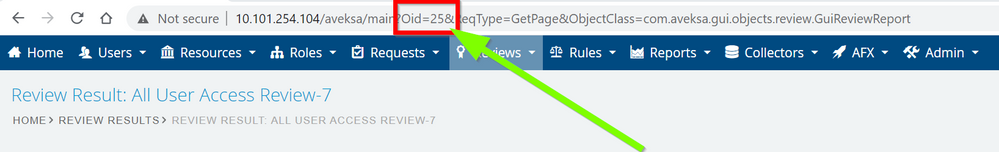

• Once the review is open, look at the URL.
• The value you want is found just after "OID=" and then before the "&"
• In this example, the value we want is 25


Report SQL

First test this in your query tool (SQLDeveloper, Toad etc..)

(select
  'Review Status' as Status,
  State as Total
 from avuser.pv_review
 where id=:TargetObjectId
 UNION ALL
 select
  'Review Type' as Status,
  CASE review_type
   when 'User' then 'User Access'
   when 'Account' then 'Account Access'
   when 'GlobalRole' then 'Role Definition'
   when 'UserGroup' then 'Group Definition'
   when 'dataresource' then 'Data Resource Ownership' -- to be validated
  End as Total
 from avuser.pv_review
 where id=:TargetObjectId
 UNION ALL
 select
  'Start Date' as Status,
  to_char(creation_date) as total
 from avuser.pv_review
 where id=:TargetObjectId
 UNION ALL
 select
  'End Date' as Status,
  CASE
  when end_date is null then 'Not Specified'
  else to_char(end_date)
  end as Total
 from avuser.pv_review
 where id=:TargetObjectId
 UNION ALL
 select distinct
  '' as Status,
  '' as Total
 From avuser.pv_review
 UNION ALL
 SELECT -- Gives you the total distinct reviewees
  'Total ' || DECODE(pR.review_type,'User','Users','Account','Accounts','GlobalRole','Roles','UserGroup','Groups','dataresource','Data Resources') as Status,
  to_char(Count(distinct tRC.Reviewee_ID)) as total
 FROM avuser.pv_review pR
 JOIN avuser.pv_review_component tRC
 ON pR.id=:TargetObjectId
 AND pR.id = tRC.review_id
 GROUP BY pR.review_type
 UNION ALL
 SELECT -- Gives you the total applications overall
  'Total Applications' as Status,
  to_char(Count(distinct tRC.ASSOC_APP_ID)) as total
 FROM Avuser.pv_review_component tRC
 WHERE tRC.Review_ID =:TargetObjectId
 UNION ALL
 select -- Gives you the total reviewers overall
  'Total Reviewers' as Status,
  to_char(Count(distinct tRC.Covering_User_ID)) as total
 from avuser.pv_REVIEW_COVERAGE tRC
 WHERE tRC.Rev_ID =:TargetObjectId
    and lower(tRC.role_type) <> 'monitor'
 UNION ALL
 SELECT -- Gives you the total entitlments overall
  'Total Items' as Status,
  to_char(Count(1)) as total
 FROM Avuser.pv_review_component tRC
 WHERE tRC.Review_ID =:TargetObjectId
 UNION ALL
 SELECT -- Gives you the total entitlments with state = maintain
  'Total Maintain' as Status,
  to_char(Count(1)) as total
 FROM Avuser.pv_review_component tRC
 WHERE lower(tRC.State) = 'maintain'
  AND tRC.Review_ID =:TargetObjectId
 UNION ALL
 SELECT -- Gives you the total entitlments with state = revoke
  'Total Revoke' as Status,
  to_char(Count(1)) as total
 FROM Avuser.pv_review_component tRC
 WHERE lower(tRC.State) = 'revoke'
  AND tRC.Review_ID =:TargetObjectId
 UNION ALL
 SELECT -- Gives you the total entitlments that are NOT reviewed
  'Total None' as Status,
  to_char(Count(1)) as total
 FROM Avuser.pv_review_component tRC
 WHERE lower(tRC.State) = 'none'
  AND tRC.Review_ID =:TargetObjectId
 UNION ALL
 SELECT -- Gives you the total entitlments that with violations
  'Violation Count' as Status,
  to_char(Count(1)) as total
 FROM Avuser.pv_review_component tRC
 WHERE tRC.Review_ID =:TargetObjectId
  AND tRC.Violation_Count > 0
 UNION ALL
 select
  'Total Reassigns' as Total,
  to_char(count(1)) as total
 FROM  avuser.pv_REVIEW_DELEGATION tRD
 JOIN Avuser.pv_review_component tRC
  ON tRD.review_component_id = tRC.ID
 WHERE tRC.Review_ID =:TargetObjectId)‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍

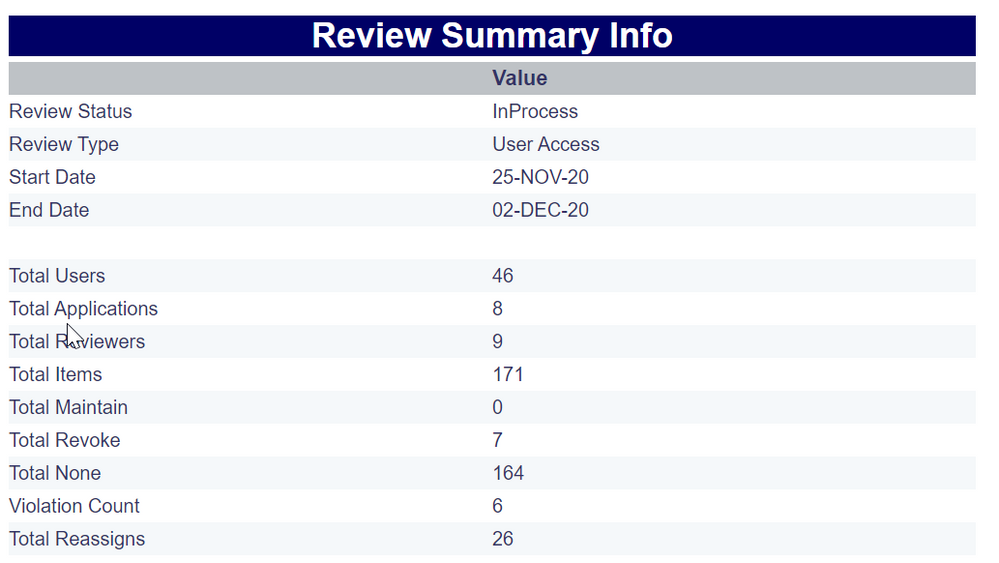

Example of the results:

Report Implementation

1. Log into RSA IGL as a user who can create reports. In my example, im using AveksaAdmin

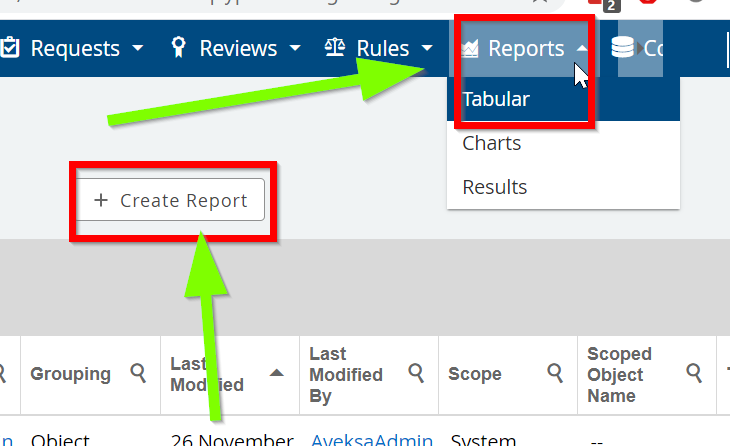

2. Go to "Reports" / "Tabular"
3. Select "+ Create Report" button

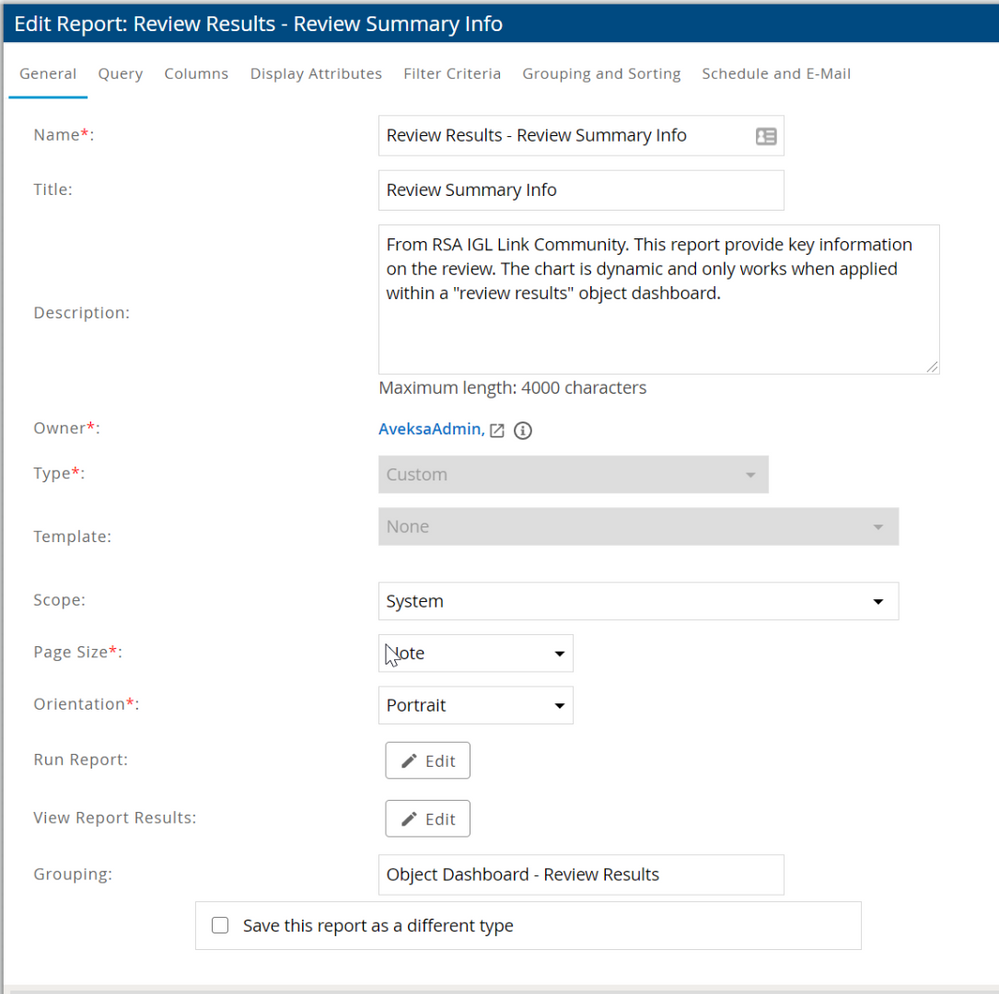

4. Under the "General Tab" add the following details:
   • Name: Review Results - Review Summary Info
   • Title: Review Summary Info
   • Description: From RSA IGL Link Community. This report provide key information on the review. The report is dynamic and only works when applied within a "review results" object dashboard.
   • Scope: System
   • Page Size: Note
   • Orientation: Portrait

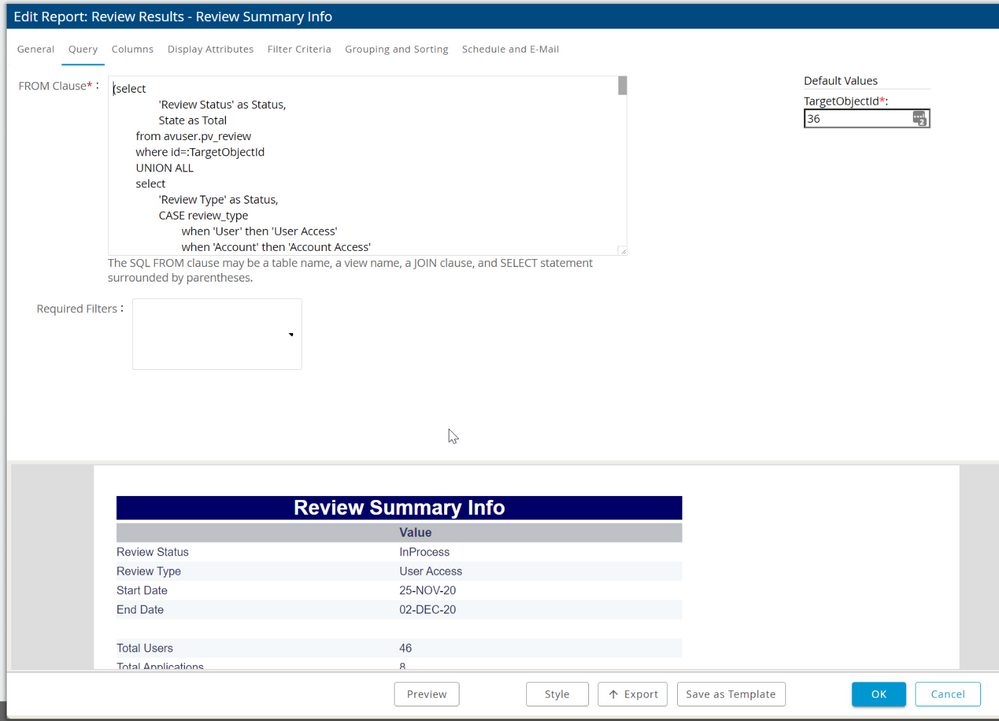

5. Under the "Query" Tab, copy the SQL from above
6. Update the TargetObjectID as noted above

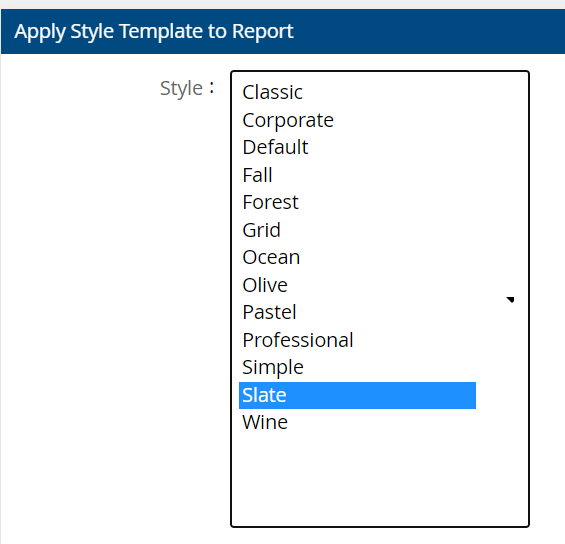

7. In the bottom bar, press the "Style" button. "Slate" is a good recommendation for reports

8. Press the "Preview" button, you should see some results, as per the example image below.

   If you get an error at this stage, please test your SQL in a Query tool, like "SQL Developer" or "SQL Squirrel" to ensure it works first.
   If it still doesn't work, please share your SQL and a screen shot of the issue below. DO NOT contact RSA Support

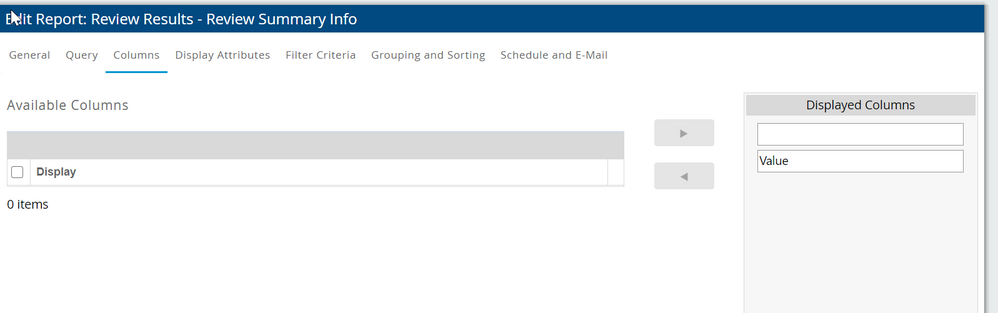

9. Under the "Columns" Tab, please use the configuration shown in the image below

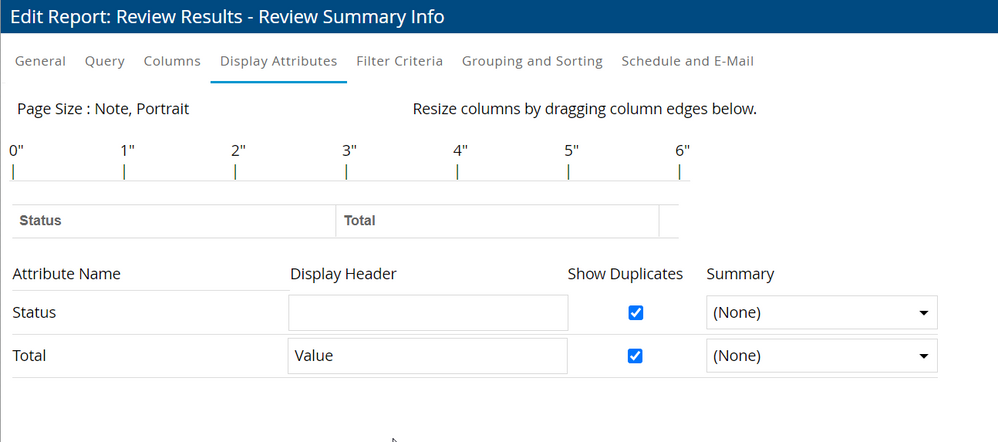

10. Under the "Display Attributes" tab, please use the configuration shown in the image below

11. Nothing has been set on the "Filter", "Grouping & Sorting" or "Schedule and Email" tabs
