The RADIUS attribute called "Juniper-Junosspace-Profile" does not appear in the drop-down Attribute selection
Last Modified: 2024-03-06
Article Number
Applies To
RSA Product/Service Type: Authentication Manager
RSA Version/Condition: 8.7 Service Pack 2
Issue
The RADIUS attribute called "Juniper-Junosspace-Profile" does not appear in the drop-down attribute selection when creating a RADIUS profile.
Cause
Resolution
1/ Logon to the Operations Console
2/ Navigate to Deployment Configuration > RADIUS Servers > enter Super Admin credentials when prompted > left-click a Server Name > select Manager Sever Files > click the Dictionary Files tab
Locate the dictionary called “dictionary.juniper” and left-click the File Name > select Edit > scroll down the dictionary file to the line “ATTRIBUTE Juniper-Junosspace-Profile 11 String"
3/ Change “String” to be “string” (all lowercase) in the line where the result will be “ATTRIBUTE Juniper-Junosspace-Profile 11 string"

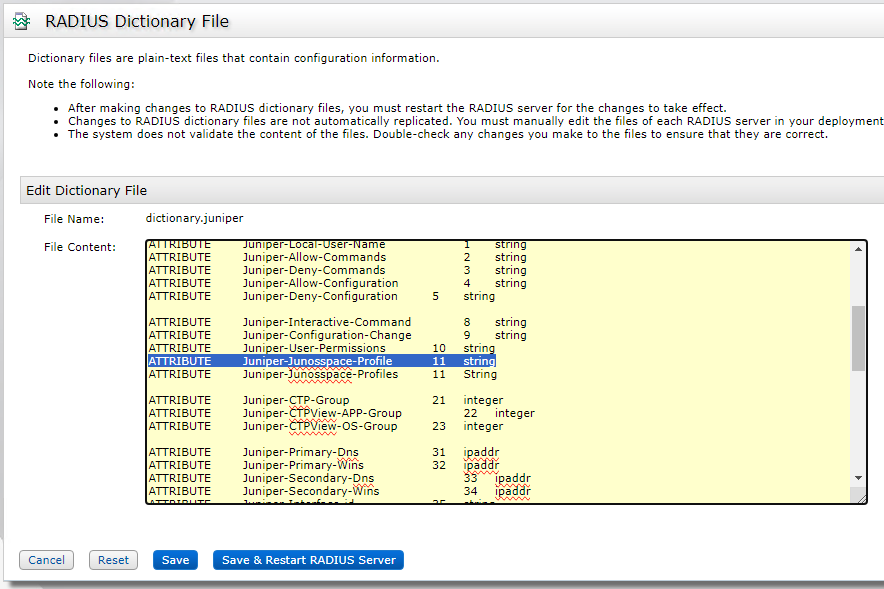

For example, where the correction has been made:
4/ Click Save & Restart RADIUS Server
NOTE: this will have an impact on the RSA RADIUS server as the restart will likely take 2-3 minutes.
5/ After the restart of the RSA RADIUS server the administrator will see this message on the screen:
6/ Logout of the Security Console if an administrator is already logged in. Login to the Security Console with a new session.

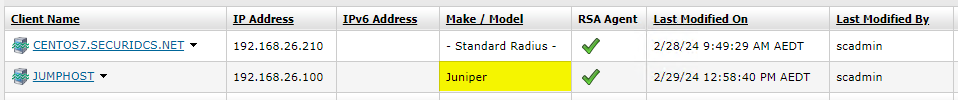

Where a RADIUS client already exists with a Make / Model of “Juniper” then add a new RADIUS profile.
For example:
The procedure to add a RADIUS profile can be found at URL https://community.rsa.com/s/article/Add-a-RADIUS-Profile-60341e37

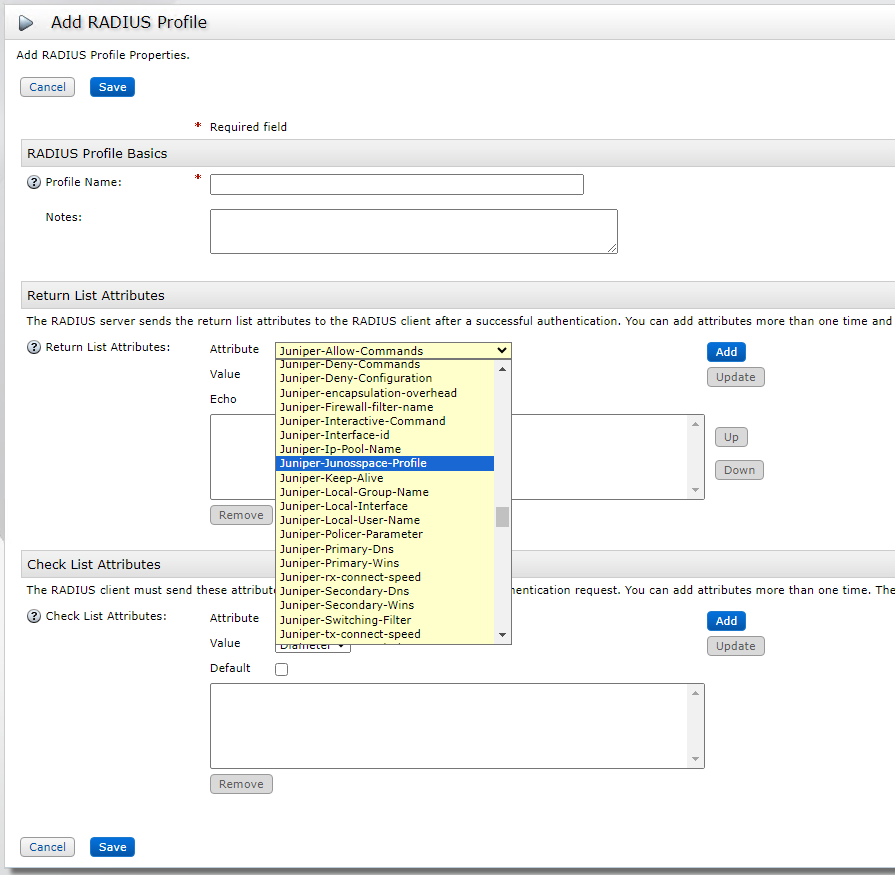

The “Juniper-Junosspace-Profile” RADIUS attribute is now showing in the drop-down attribute list, as shown below:
