Zenduty - SAML My Page SSO Configuration - RSA Ready Implementation Guide
2 years ago
This article describes how to integrate Zenduty with RSA Cloud Authentication Service using My Page SSO.

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service using My Page SSO.
Procedure
  1. Sign in to the RSA Cloud Administration Console with administrator credentials.
  2. Enable SSO on the My Page portal by accessing the RSA Cloud Administration Console > Access My Page > Single Sign-On (SSO). Ensure it is enabled and protected by two-factor authentication using a Password and Access Policy.image.png

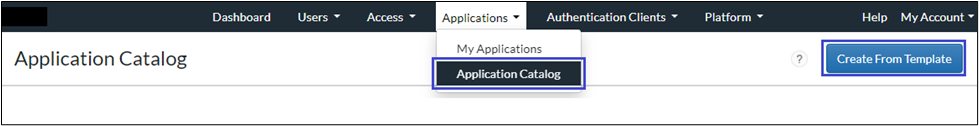

  3. On the Applications > Application Catalog page, click on Create From Template.image.png

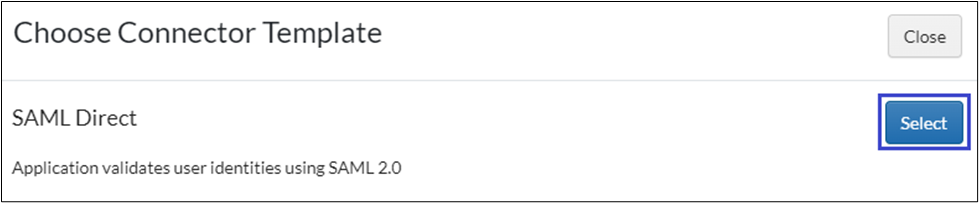

  4. On the Choose Connector Template page, click Select for SAML Direct.image.png

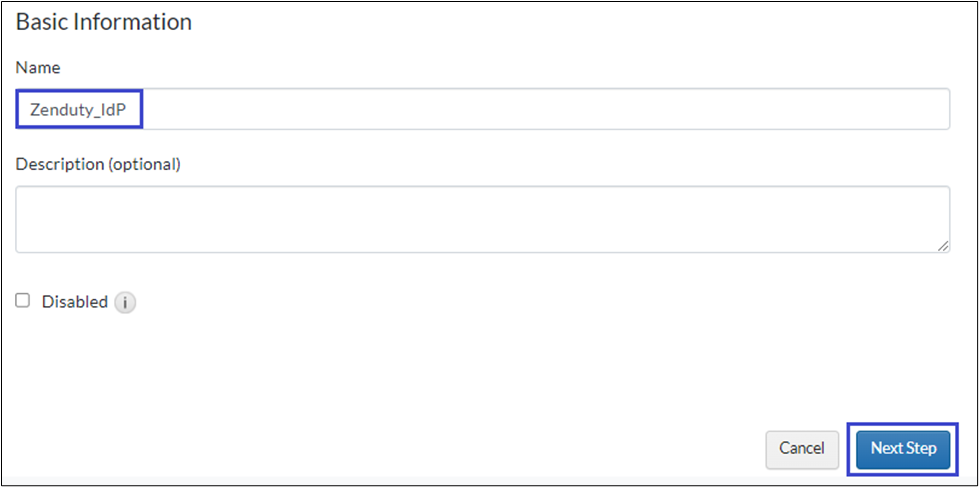

  5. On the Basic Information page, enter a name for the configuration in the Name field and click Next Step.image.png

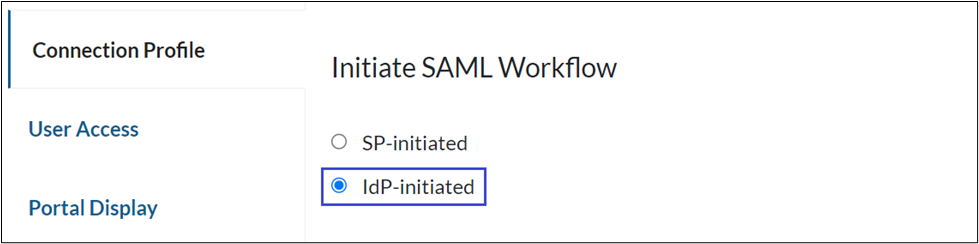

  6. In the Connection Profile section, select IdP-initiated option.image.png

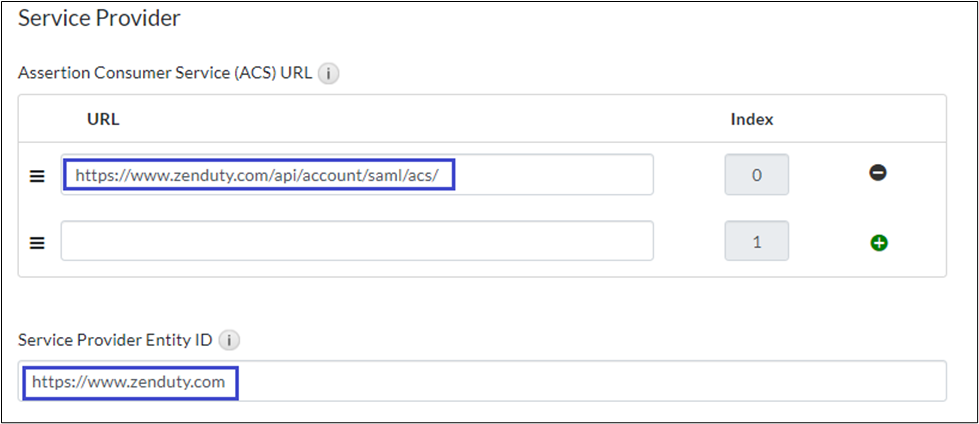

  7. Provide the Service Provider details in the following format:
    1. Assertion Consumer Service (ACS) URLhttps://www.zenduty.com/api/account/saml/acs/
    2. Service Provider Entity IDhttps://www.zenduty.com

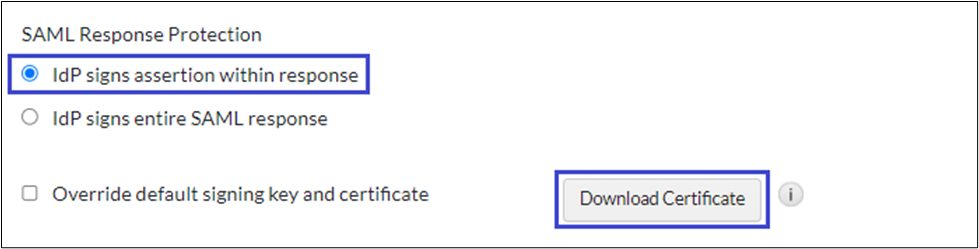

  1. In the SAML Response Protection section, select IdP signs assertion within response, and download the certificate by clicking Download Certificate.image.png

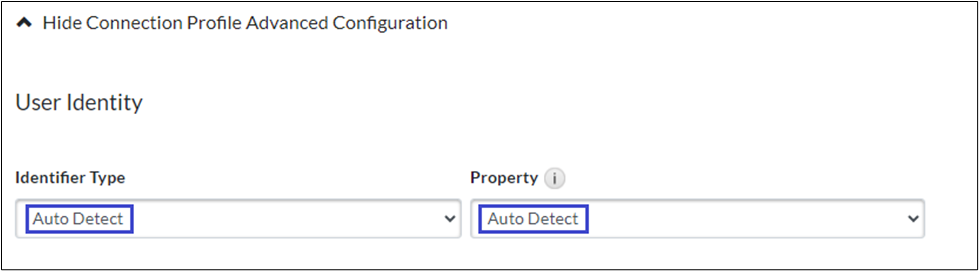

  2. Under the User Identity section, select Show Advanced Configuration, then configure Identifier Type and Property as follows:
    1. Identifier Type: Auto Detect
    2. Property: Auto Detect

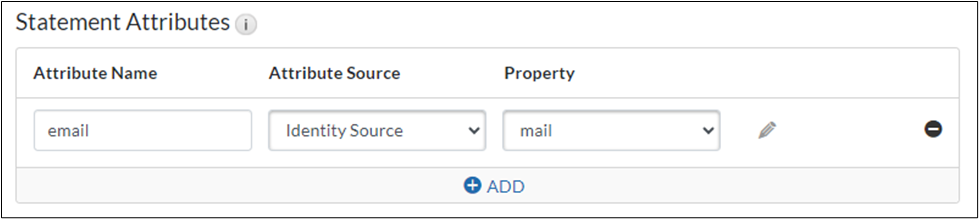

  1. Under the Statement Attribute section, add the following attributes:
    1. Attribute Name: email
    2. Attribute Source: Identity Source
    3. Property: mail
  1. Click Next Step.

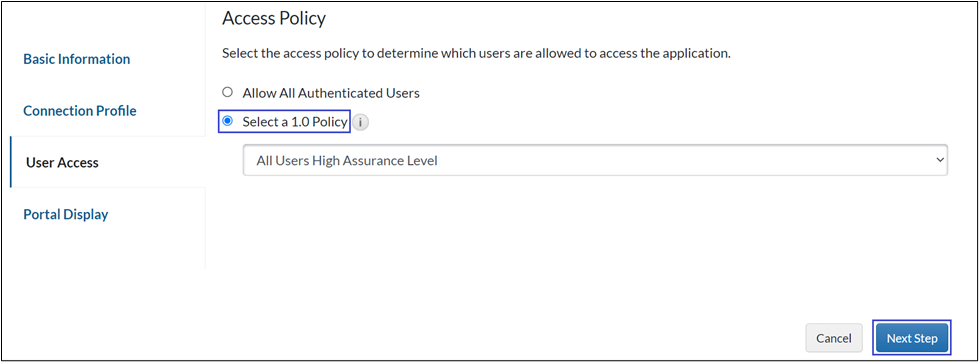

  2. Choose your desired Access Policy for this application and click Next Step > Save and Finish.image.png

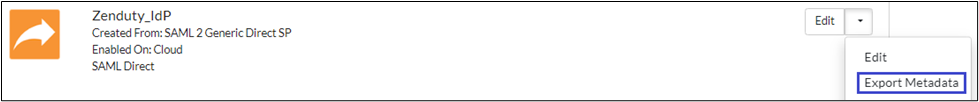

  3. On the My Applications page, click the Edit dropdown and select Export Metadata to download the metadata.image.png

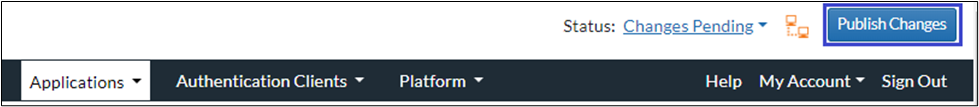

  4. Click Publish Changes to save your settings. After publishing, your application will be enabled for SSO.image.pngimage.png

Configure Zenduty

Perform these steps to configure Zenduty.
Procedure
  1. Log in to Zenduty using admin credentials.

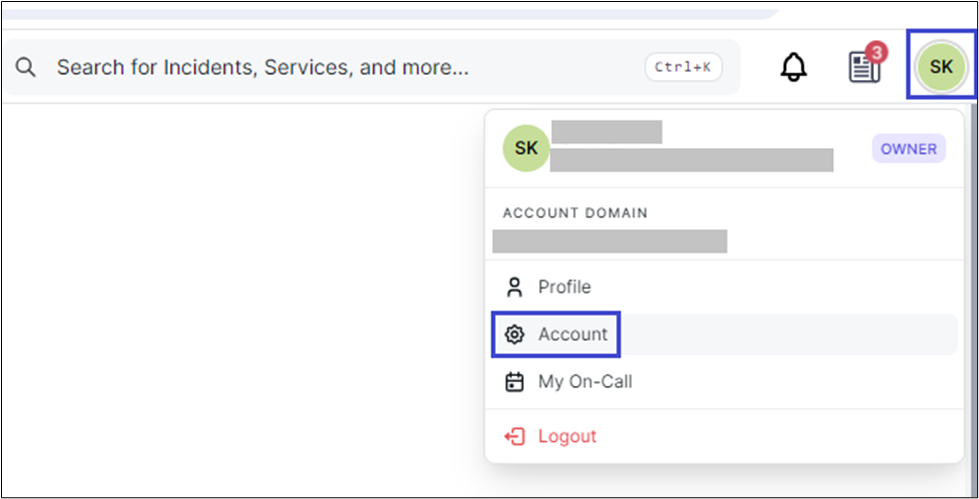

  2. Click on your profile icon in the top right corner and select Account from the dropdown menu.image.png

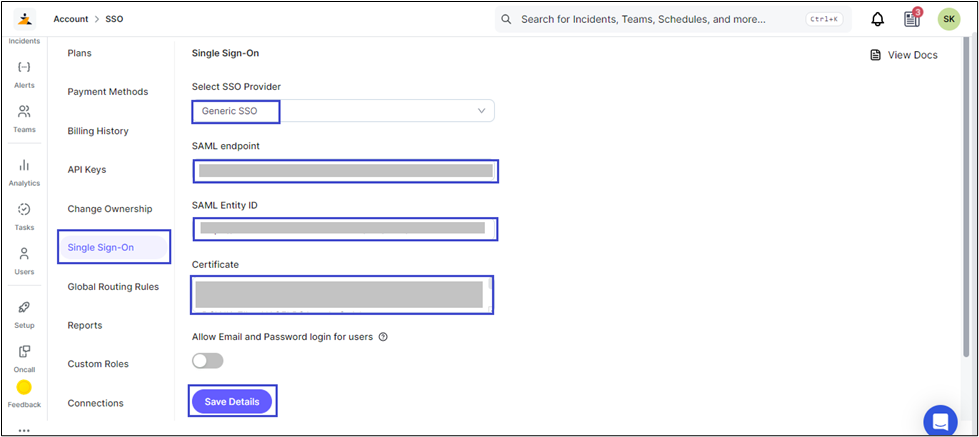

  3. Select Single Sign-On, provide the following details and click Save Details.
    1. Select SSO Provider: choose Generic SSO.
    2. SAML endpoint: Enter the value of SingleSignOnService. This value can be obtained from the metadata file downloaded from the RSA platform.
    3. SAML Entity ID: Enter the value of entityID. This value can be obtained from the metadata file downloaded from the RSA platform.
    4. Certificate: Copy and paste the certificate downloaded from the RSA platform.
The configuration is complete.
