RSA Product Set: SecurID
RSA Product/Service Type: Authentication Manager
RSA Version/Condition: AM 8.8 and later
AM 8.8 adds support for TLSv.1.3, but also restricts certain older ciphersuites that are considered less secure, e.g. TLS_RSA_WITH_AES_256_GCM_SHA384 with TLSv1.2.
Products that do not support TLSv.1.3, such as the EOPS Authentication Agent for Windows, AAWin v. 7.4.x, and some other older LDAPS servers, will no longer connect with AM 8.8 when they previously did at ver. AM 8.7 SP2 or earlier.
This work-around Knowledge Base, KB article explains how to enable a ciphersuite in AM to allow these older products to connect.
Starting with AM 8.8, TLS Ciphersuites no longer controlled by WebLogic in /opt/rsa/am/server/config/config.xml but that control has moved to Java in
/opt/rsa/am/appserver/jdk/jre/lib/security/java.security
TLS connections begin after a TCP 3-way Handshake establishes a reliable TCP connection, when the initiating side, the Client, sends a TLS Hello packet, which includes the version of TLS the client supports, and a list of ciphersuites that the Client is capable of using.
The Server side is the node that responds to the initiating side, and it's response will include the version of TLS they will use, e.g. TLSv1.3 or TLSv1.2 and which Cipher or ciphersuite.
When an AAWin v.7.4.x agent attempts to Auto-Register to an AM primary or replica, that AAWin agent is the TLS Client and AM is the TLS server. But when an AM primary or replica seeks to connect to an external LDAP Identity Source, that AM server is the TLS client.
A TCPDump or Wireshark network packet capture of a TLS connection will show the TLS Client Hello.

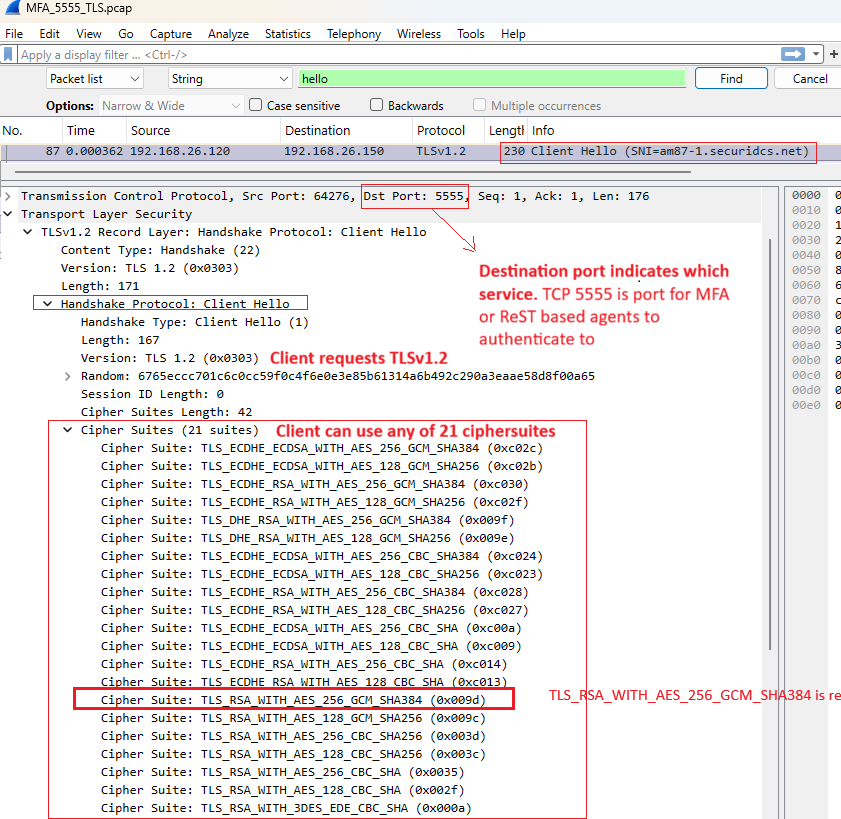

<screen shot - TLS_Client_Hello_ciphersuites.png>
When a TLS connection fails with "no cipher suites in common" you must either update the TLS client to support one of the stricter ciphers suites on the TLS server, or you must configure the TLS server to allow one of the less secure ciphersuites seen in the TLS Hello, e,g, TLS_RSA_WITH_AES_256_GCM_SHA384
SSH to Linux on the RSA AM appliance, or gain console access, authenticating with the rsaadmin account
Make a backup of: /opt/rsa/am/appserver/jdk/jre/lib/security/java.security
cd /opt/rsa/am/appserver/jdk/jre/lib/security/
cp java.security java.security.orig

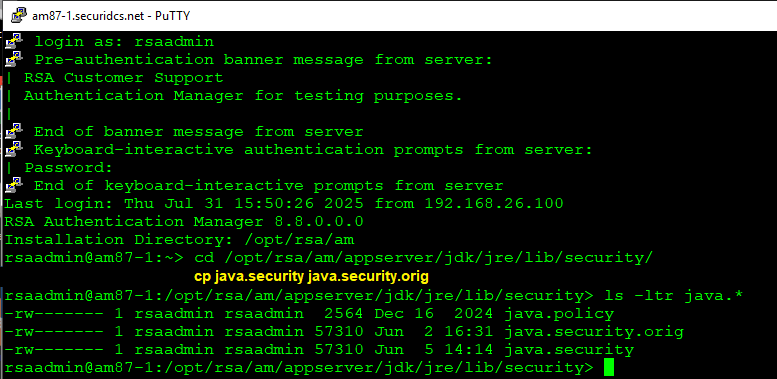

<screenshot - java_security_1_ssh.png>
Edit java.security
vi java.security

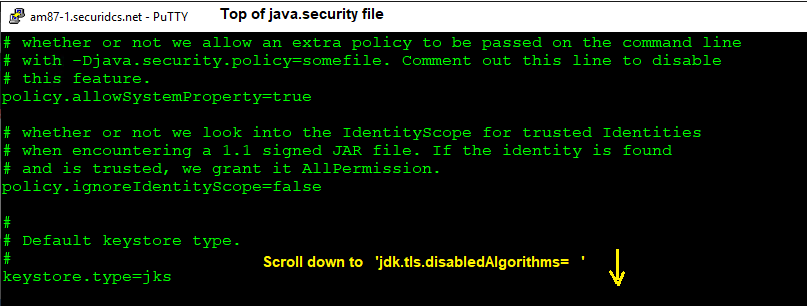

<screenshot - java_security_2_top_of_file.png>
Look for the line starting:
jdk.tls.disabledAlgorithms=
and the following line containing:
TLS_RSA_WITH_AES_256_GCM_SHA384

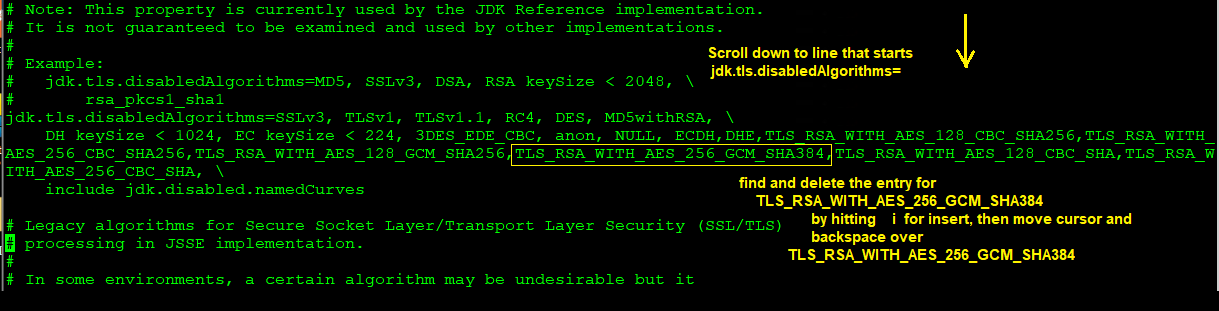

<screenshot - java_security_3_jdk.tls.disabledAlgorithms.png>
Then delete "TLS_RSA_WITH_AES_256_GCM_SHA384," from that line

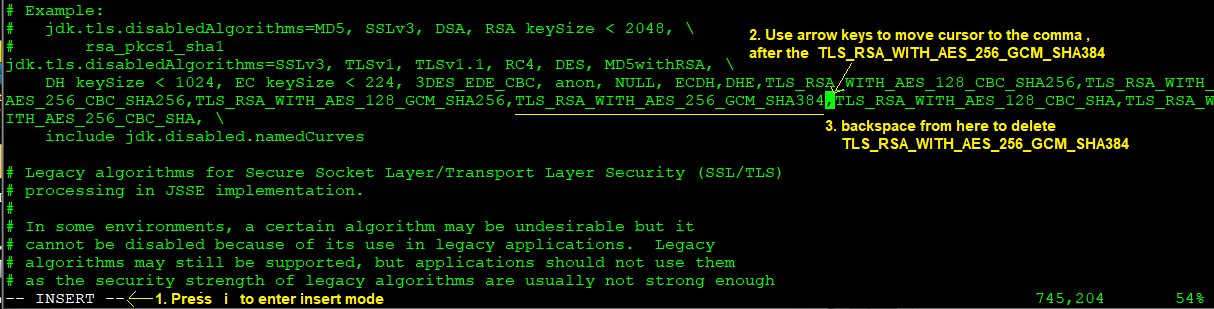

<screenshot - java_security_4_insertmode_backspace_over_cipher.png>

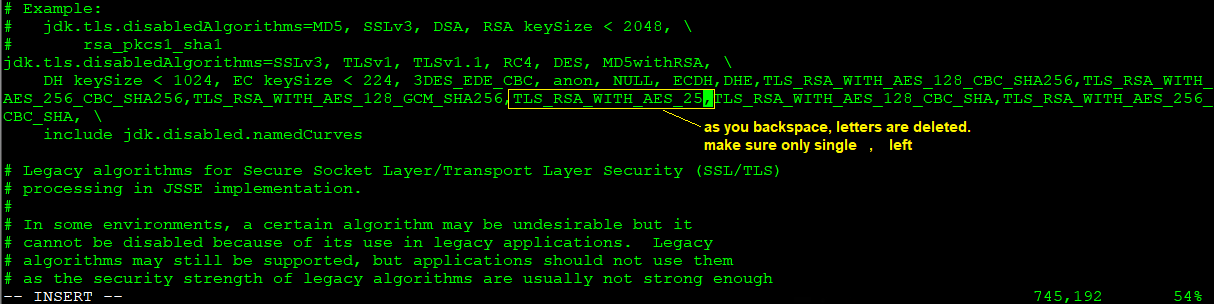

<screenshot - java_security_5_backspace.png>
Restart AM services.
cd /opt/rsa/am/server
./rsaserv restart all

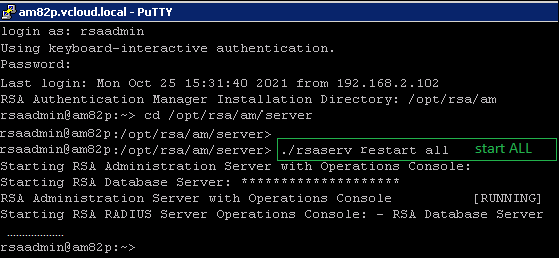

<screen shot – rsaserv_restart_all.png>
The resolution above is a work-around solution.
At this time it is unknown if any related security issues would be triggered by this change.
It is also very likely that changes made to java.security would be undone by AM patches.
Use at your own risk. You are enabling a weaker ciphersuite because your TLS connection failed. The correct solution is to update the TLs side so that it can support the latest and most secure ciphersuites.
Before attempting this process, review the article entitled Does RSA support the installation of third party software or applications on the RSA Authentication Manager 8.X (virtual) appliances? Each customer making this change needs to assess the risk/benefit of this 'unsupported' change to the AM appliance for their organization. This should be viewed as a temporary solution.
