Configure RSA Cloud Authentication Service

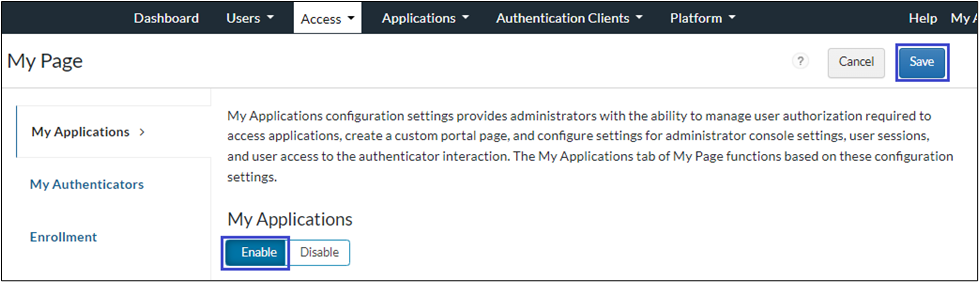

1. Enable My Page SSO by accessing the RSA Cloud Administration Console > Access > My Page > Single Sign-On (SSO). Ensure it is enabled and protected using two-factor authentication - Password and Access Policy.

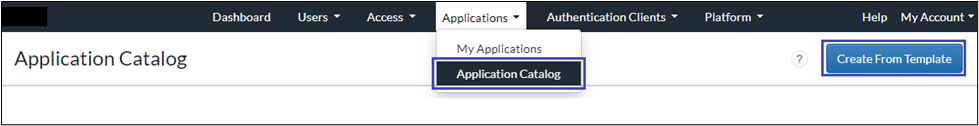

2. On the Applications > Application Catalog page, click Create From Template.

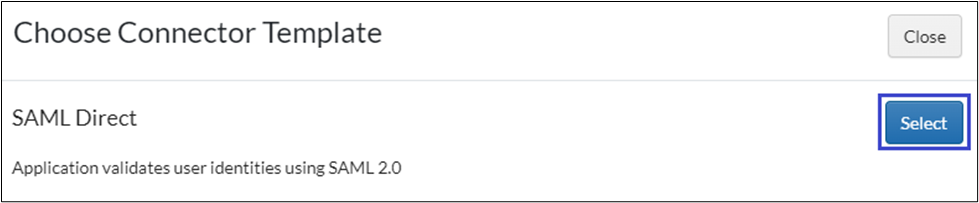

3. Click Select for SAML Direct.

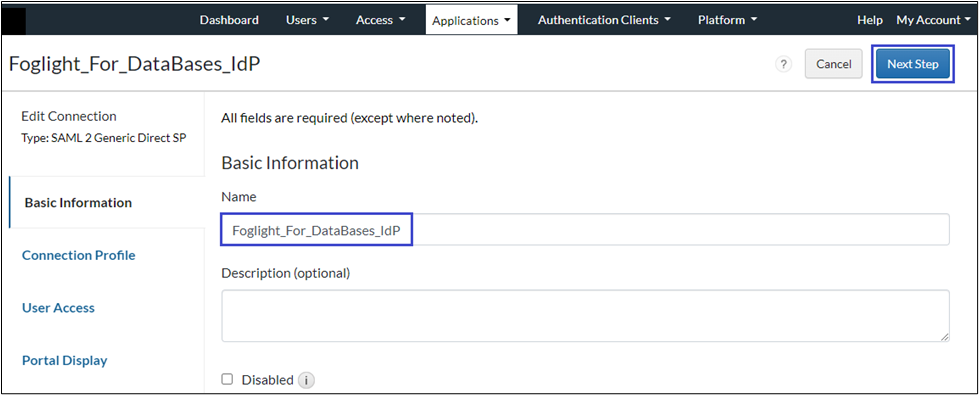

4. On the Basic Information page, enter a name for the configuration in the Name field and click Next Step.

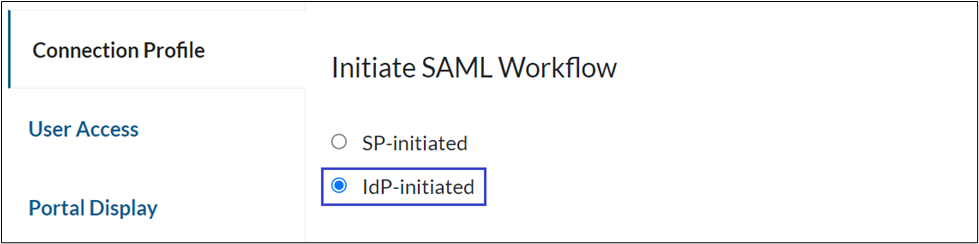

5. On the Connection Profile page, click the IdP-initiated option.

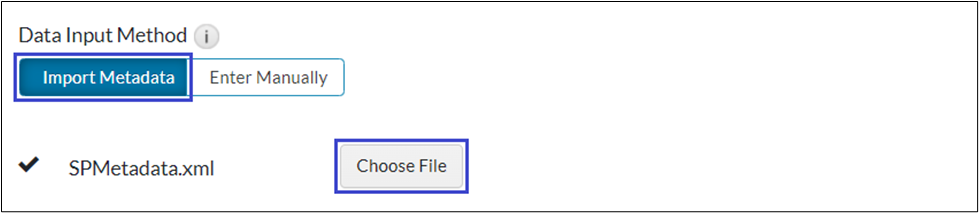

6. For providing Service Provider details, select Import Metadata and click Choose File.
   1. Select the file that is downloaded from the Service Provider.
   2. Construct the URL to obtain Foglight for Databases metadata.
      https://<SystemIP address>:<Port Number> console/saml2/metadata.xml

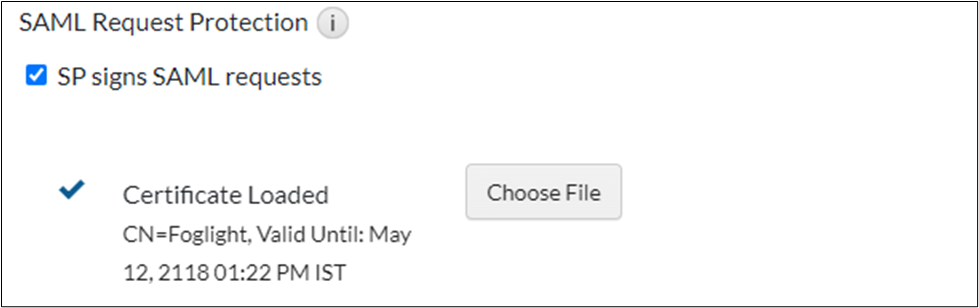

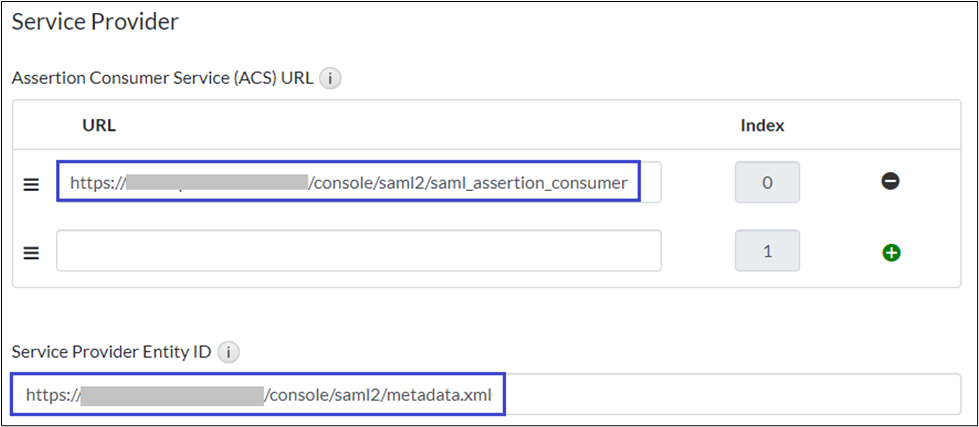

7. Review the ACS URL and Service Provider Entity ID values that will be auto-filled.                                                                                                                                  The SP signs SAML requests checkbox and the certificate will be auto-filled.

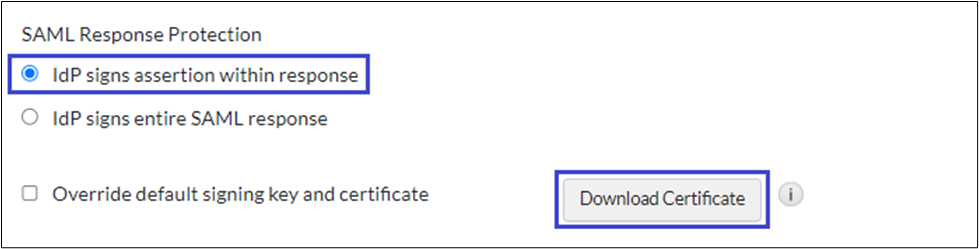

8. In the SAML Response Protection section, choose IdP signs assertion within response.
9. Download the certificate by clicking Download Certificate.
10. Click Show Advanced Configuration.

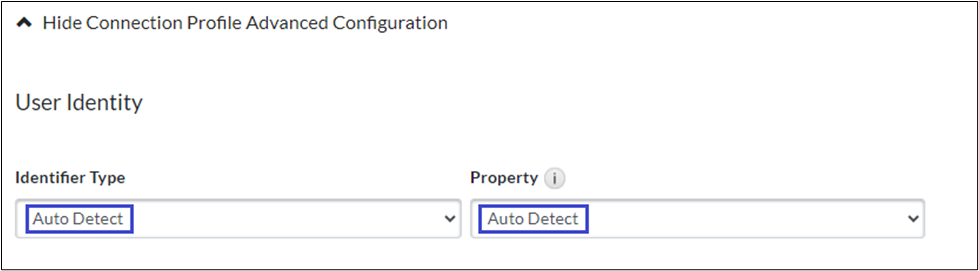

11. Under the User Identity section, configure Identifier Type and Property. For example, Identifier Type: Auto Detect and Property: Auto Detect.

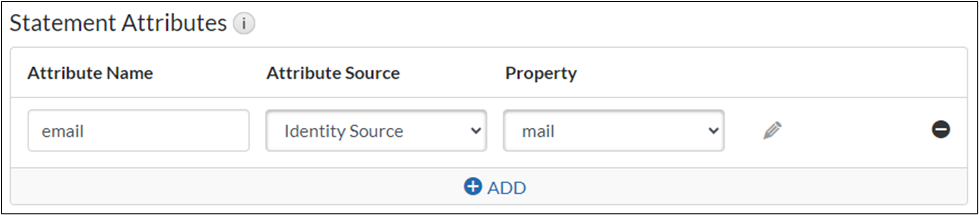

12. Under the Statement Attributes section, add the following attribute.
    1. Attribute Name: email
    2. Attribute Source: Identity Source
    3. Property: mail
13. Click Next Step.

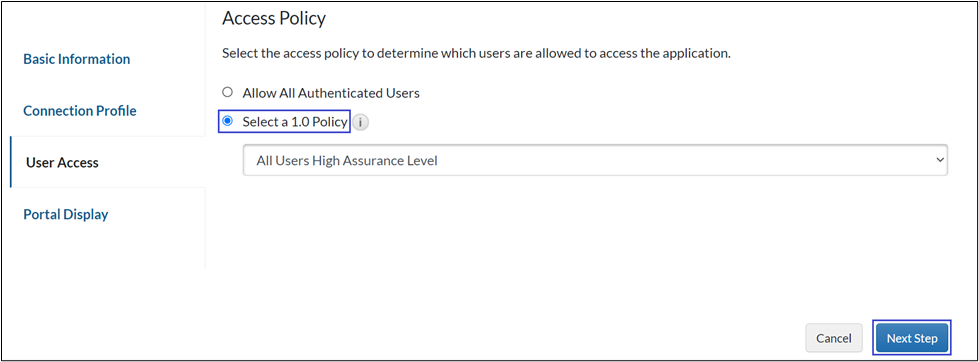

14. Choose your desired Access Policy for this application and click Next Step > Save and Finish.

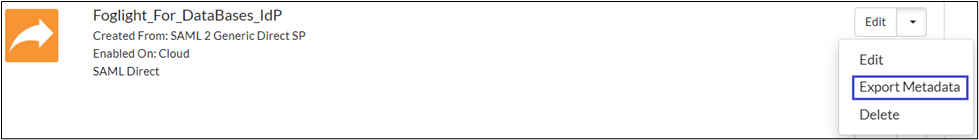

15. On the My Applications page, click the Edit drop-down icon and select Export Metadata to download the metadata.

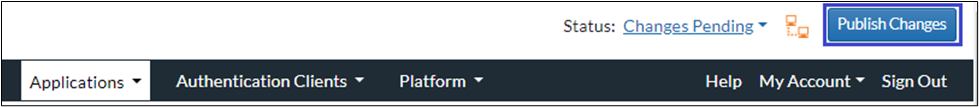

16. Click Publish Changes. Your application is now enabled for SSO.

Configure Foglight for Databases

1. Log on to Foglight for Databases as an administrator.
2. Go to Administration on the left pane of the console and click Users & Security under the Administer Server tab.

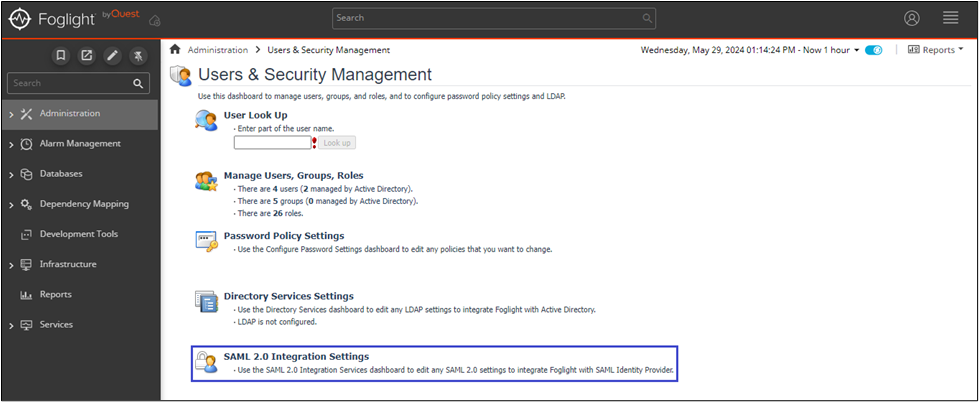

3. Click SMAL 2.0 Integration Settings.

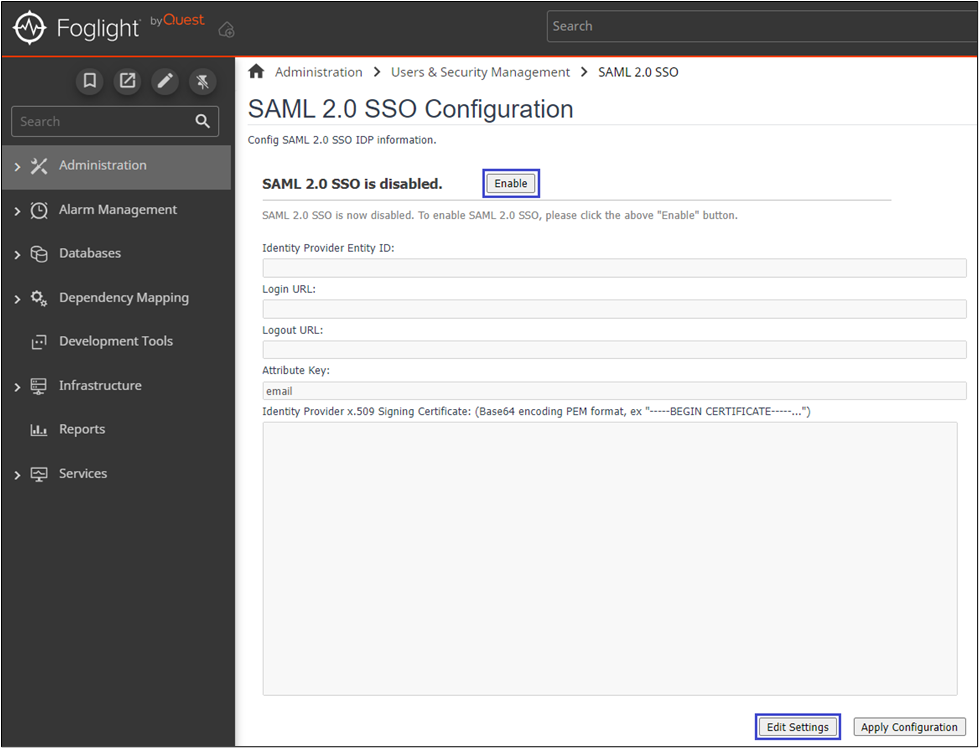

4. Click Enable to enable SAML 2.0 SSO Configuration and click Edit Settings to provide Identity Provider details.

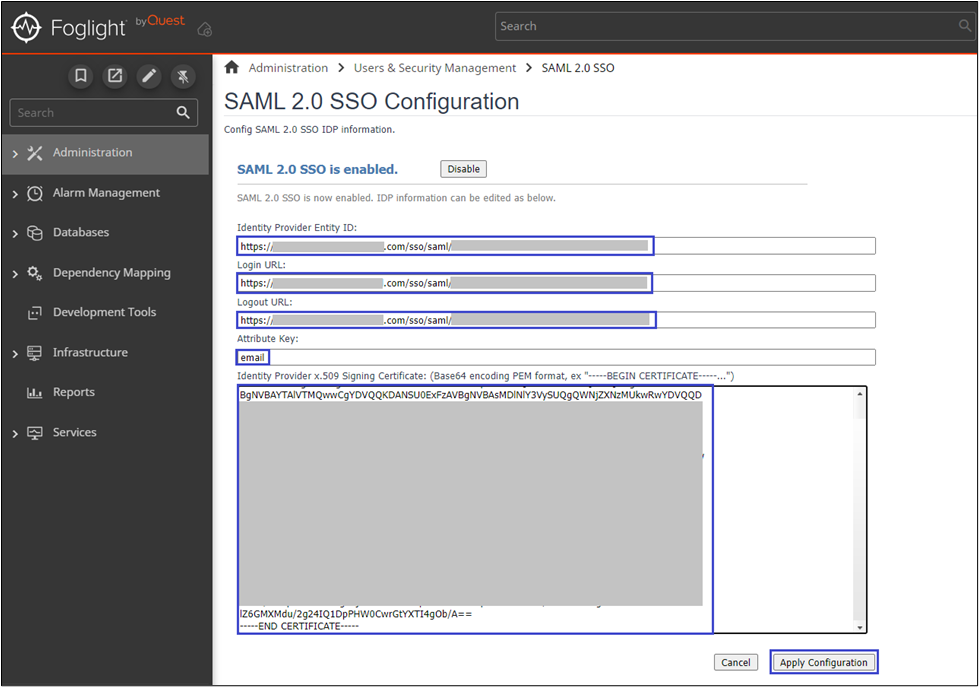

5. Provide the following details and click Apply Configuration.
   1. Identity Provider Entity ID: The entityID value that can be obtained from the metadata file downloaded from RSA.
   2. Login URL: The SingleSignOnService value that can be obtained from the metadata file downloaded from RSA.
   3. Logout URL: The SingleLogoutService value that can be obtained from the metadata file downloaded from RSA.
   4. Attribute Key: Value as ‘email’.
   5. Identity Provider x.509 Signing Certificate: Copy and paste the certificate downloaded from RSA.

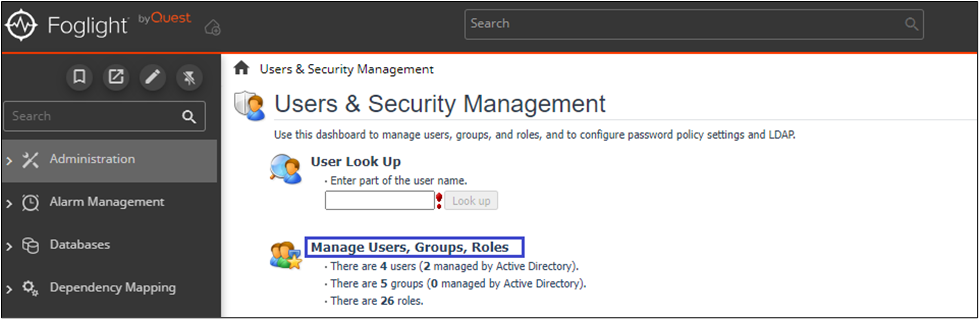

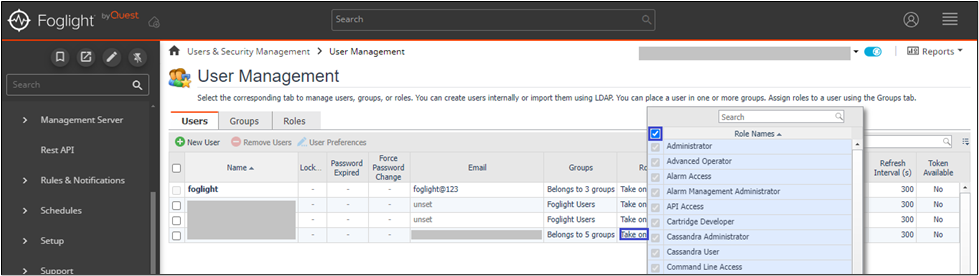

6. Navigate to Administration > Users & Security Management and click Manage Users, Groups, Roles.

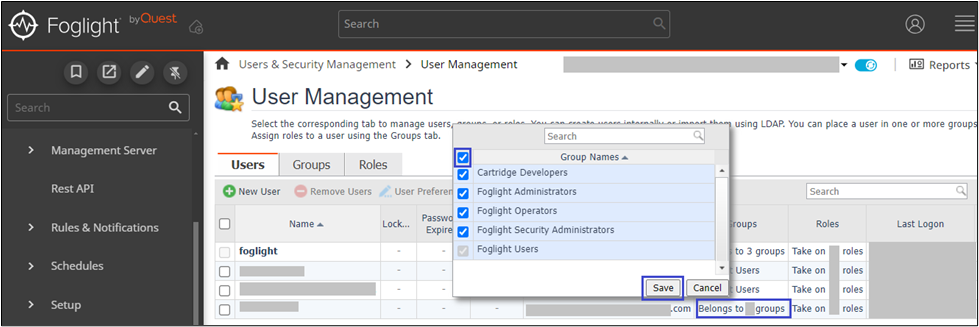

7. To add groups:
   1. Under the Users section, select a Name (user).
   2. In the Groups column, click Belongs to groups.
   3. Assign the user to groups as required by selecting the checkboxes and click Save.
8. To add roles:
   1. Under the Users section select a Name (user).
   2. In the Roles column, click Take on roles.
   3. Assign the user roles as required by selecting the checkboxes and click Save.
