McAfee  MVISION - SAML SSO Agent Configuration - SecurID Access Implementation Guide

This section describes how to integrate SecurID Access with MVISION using a SAML SSO Agent.

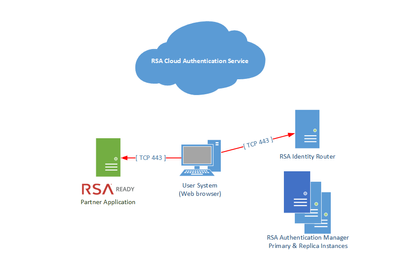

Architecture Diagram

Configure SecurID Access Cloud Authentication Service

Perform these steps to configure SecurID Access Cloud Authentication Service(CAS) as an SSO Agent SAML IdP to MVISION.

Procedure

1. Sign into the SecurID Access Cloud Administration Console and browse to Applications > Application Catalog.

2. Click on Create From Template then click Select for SAML Direct.

3. On Basic Information page enter a Name for the application, ie. MVISION Then click on Next Step.

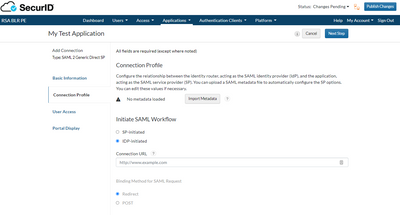

4. On Connection Profile page.

   1. Choose IDP-Initiated.







   1. In Connection URL field enter the Single Sign-on URL from the MVISION configuration below.

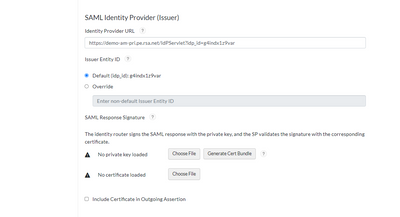

   2. Note the Identity Provider URL and Issuer Entity ID. These values are automatically generated. They may be needed later for the configuration of MVISION.





   3. Click on Generate Cert Bundle, set a a common name for your company certificate. Then click Generate and Download .

   4. Select Choose File and upload the private key from the generated certificate bundle.

   5. Select Choose File and upload the cert from the generated certificate bundle.

   6. Select Include Certificate on Outgoing Assertion.

   7. Scroll down to Service Provider section.

   8. For the Assertion Consumer Service (ACS) Enter the value for the Assertion Consumer Service URL found in the MVISION configuration. For example, https://login.auth.ui.mcafee.com/sso/saml2/0oaae1testGhTtx32p7.

   9. For the Audience (Service Provider Issuer ID) Enter the value for the Audience found in the MVISION configuration. For example, https://www.okta.com/saml2/service-provider/spzohnpvzdtestpn.





   10. Scroll down to User Identity section.

   11. Ensure Identifier Type = Email Address, set your Identity Source and Property = mail.





   12. Click Next Step.

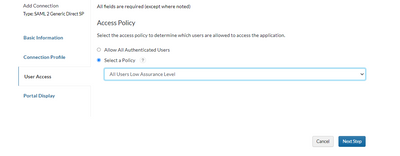

5. On User Access page select the Access Policy you require. Allow All Authenticated Users is the least restrictive. Click Next Step.





6. On Portal Display Page.

   1. Select Display in Portal.

   2. Upload an Application Icon if you wish.

   3. Set an Application Tooltip if you wish.

   4. Click on Save and Finish.

7. For this new Connector, click on the down arrow next to the Edit button and Export Metadata to save off the IDP metadata information for configuration of McAfee.

8. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.





Configure McAfee

Perform these steps to integrate MVISION as an SSO Agent SAML SP to SecurID Access Cloud Authentication Service.

Procedure

1. Sign into MVISION and goto  Identity Provider Settings.

2. In the Identity Provider section.

3. For Issuer copy the Issuer Entity ID from the above in the SecurID CAS configuration. For example, 9nfo7bii265b.

4. For Login URL copy the Identity Provider URL from the above in the SecurID CAS configuration. For example, https://portal.sso.pe.rsa.net/IdPServlet?idp_id=9nfo7bii265b.

5. For Certificate copy and paste the contents of the certificate saved above in the SecurID CAS configuration. This is the cert.pem from the downloaded certificate bundle from the SecurID Access CAS configuration above.

6. For Signature Algorithm select SHA-256.

7. For Request Binding ensure it matches the one set in the SecurID Access CAS configuration above.

8. From the User List select those users you want to exempt from SSO.

9. Save the configuration.

10. View the Service Provider (MVISION) section for the Service Provider Information needed to complete the SecurID Access configuration.

    1. Audience.

    2. Assertion Consumer Service URL.

    3. Certificate.

    4. SAML Metatdata.

11. Click on Save Changes.

Configuration is complete.

Next Step: Head back to the main page.
