Shufflrr - SAML Relying Party Configuration - SecurID Access Implementation Guide

This section describes how to integrate SecurID Access with Shufflrr using Relying Party. Relying party uses SAML 2.0 to integrate SecurID Access as a SAML Identity Provider (IdP) to Shufflrr SAML Service Provider (SP).

Architecture Diagram

Configure SecurID Access Cloud Authentication Service

Perform these steps to configure SecurID Access Cloud Authentication Service(CAS) as a relying party SAML IdP to Shufflrr .

Procedure

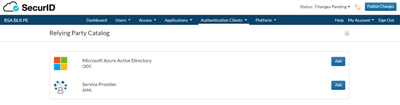

1. Sign into the Cloud Administration Console and browse to Authentication Clients > Relying Parties and click Add a Relying Party. Then select +Add for a SAML service provider.









2. On Basic Information page enter a Name for the application, ie. Shufflrr Then click on Next Step.

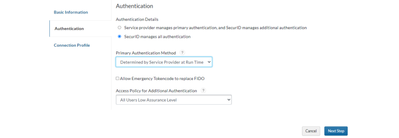

3. On Authentication page.

   1. select the RSA SecurID Access manages all authentication.

   2. Select the desired Primary Authentication Method from the dropdown list.

   3. Select the desired policy from the Access Policy for Additional Authentication.

   4. Click Next Step.





4. On Connection Profile page.

   1. Under the Service Provider Metadata section.





      1. Enter the Assertion Consumer Service (ACS) . This is the Service Provder ACS URL copied from the Shufflrr configuration. This URL is specific to your instance of Shufflrr. For example https://MyShufflrInst.shufflrr.com/login/samlassertionconsumerservice..

   2. Enter the Service Provider Entity ID. This is the Service Provder ID copied from the Shufflrr configuration. This URL is specific to your instance of Shufflrr. For example https://MyShufflrInst.shufflrr.com.

   3. Click on Download Certificate. This will be used below in the Shufflrr configuration.

   4. Click on Choose File and upload the certificate just downloaded.  This same certificate may be used in the Shufflrr configuration below.

   5. Open Advanced Configuration section.





   6. For Identifier Type Email Address choose mail for the Property.

   7. Note the Identity Provider Entity ID field . For Example :https://rsa-inst-pe.auth-demo.securid.com/saml-fe/sso.

   8. Click on Save and Finish.

5. Browse to Authentication Clients > Relying Parties

6. Scroll down to the your newly created Relying party and click down arrow to Edit and choose View or Download IdP MetatData and save off the metadata information.





7. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.





Configure Shufflrr

Perform these steps to integrate Shufflrr with SecurID Access as a Relying Party SAML SP.

Procedure

1. Sign into Shufflrr and browse to your Admin > Settings > Authentication.

2. Chek on the SAML Single Sign-On.

3. Copy Service Provider ID. This is used above in the SecurID Access CAS configuration.

4. Copy Service Provder ACS URL. This is used above in the SecurID Access CAS configuration.

5. For Identity Provider Certificate Upload the certificated saved above in the CAS configuration.

6. For Identity Provider Issuer ID copy the Identity Provider Entity ID from the above in the CAS configuration. For example, https://rsa-inst-pe.auth-demo.securid.com/saml-fe/sso.

7. For Single Sign-On Service URL copy the Identity Provider Entity ID from the above in the CAS configuration. For example, https://rsa-inst-pe.auth-demo.securid.com/saml-fe/sso.

8. Set Enforce SAML Groups switch to ON.

9. Set the following switches to OFF: Sign Authentication Request, SAML Response Signed, SAML Assertion Signed, SAML Assertion Encrypted and Enable Single Logout.

10. Save changes.

Configuration is complete.

Next Step: See main page for more certification information.
