This article describes how to integrate RSA with Zenduty using SAML Relying Party.

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service as Relying Party to Zenduty.
Procedure
  1. Sign in to the RSA Cloud Administration Console.

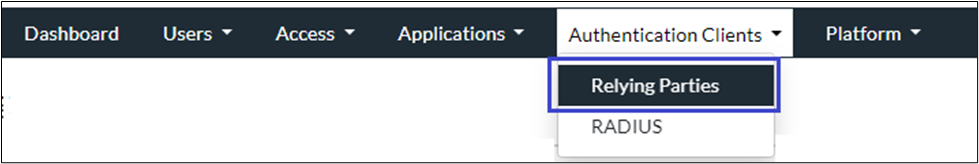

  2. Navigate to the Authentication Clients menu, and from the dropdown, select Relying Parties.image.png

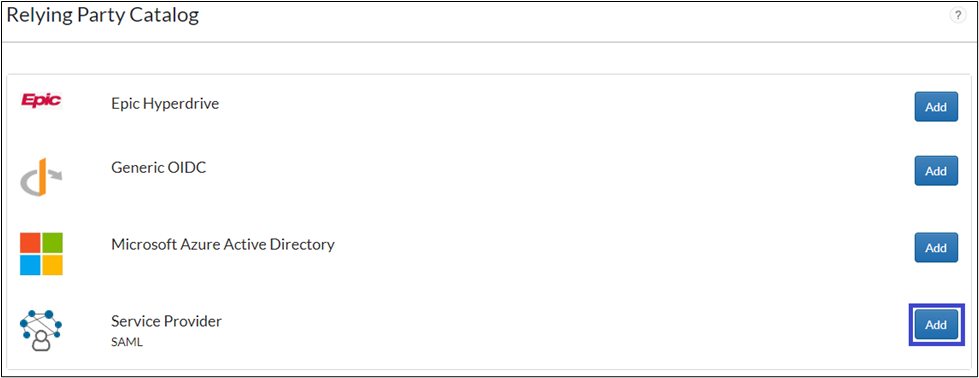

  3. In the Relying Party Catalog, select Add a Relying Party and click Add for Service Provider SAML.image.png

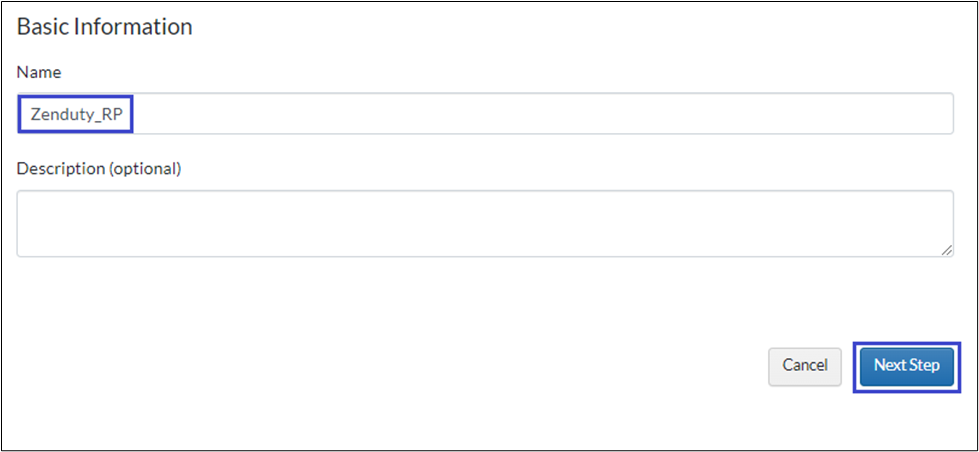

  4. On the Basic Information page, enter a name for the application in the Name field and click Next Step.image.png

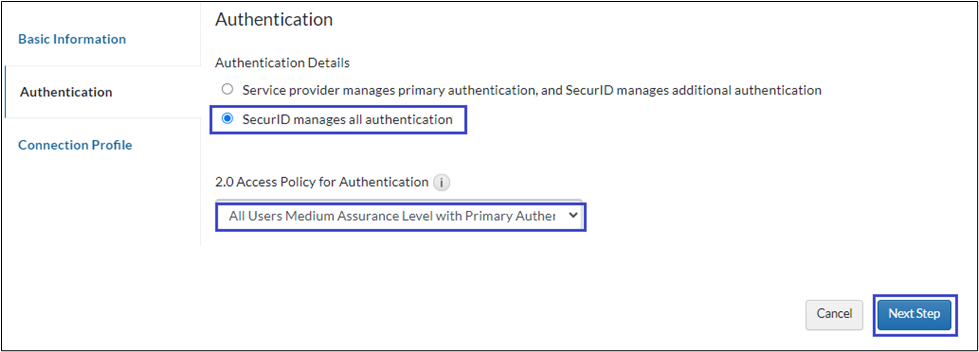

  5. In the Authentication tab, select SecurID manages all authentication.
  6. Select Access Policy for Authentication as required and click Next Step.image.png

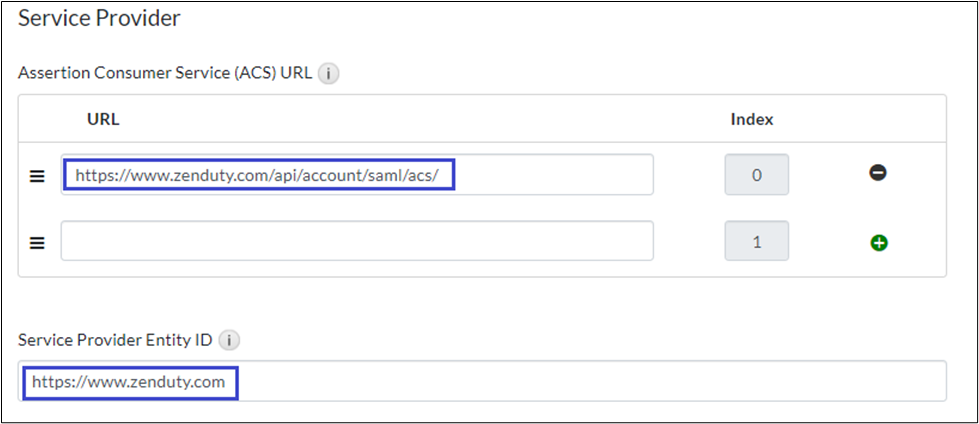

  7. Provide the Service Provider details in the following format:
    1. Assertion Consumer Service (ACS) URLhttps://www.zenduty.com/api/account/saml/acs/
    2. Service Provider Entity IDhttps://www.zenduty.com

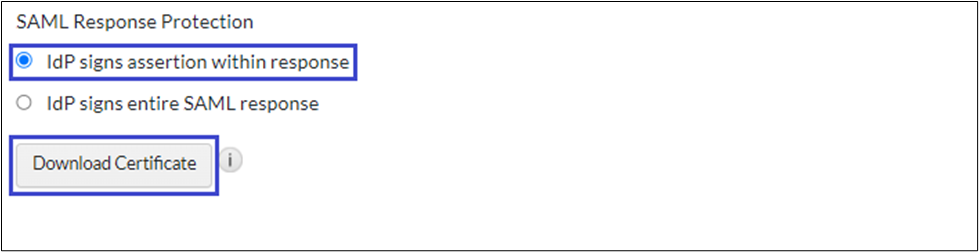

  1. In the SAML Response Protection section, select IdP signs assertion within response, and download the certificate by clicking Download Certificate.image.png

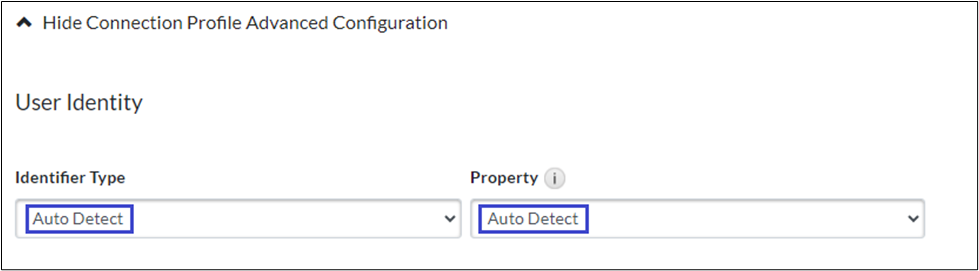

  2. Under the User Identity section, select Show Advanced Configuration, then configure Identifier Type and Property as follows:
    1. Identifier Type: Auto Detect
    2. Property: Auto Detect

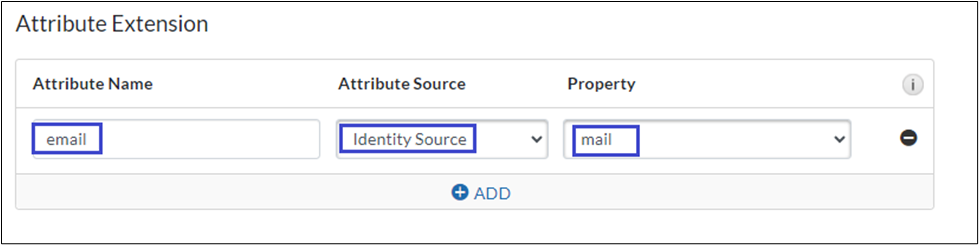

  1. Under the Statement Attribute section, add the following attributes:
    1. Attribute Name: email
    2. Attribute Source: Identity Source
    3. Property: mail
  1. Click Save and Finish.
  2. On the My Relying Parties page, click Edit dropdown and select Metadata option to download the metadata.image.png

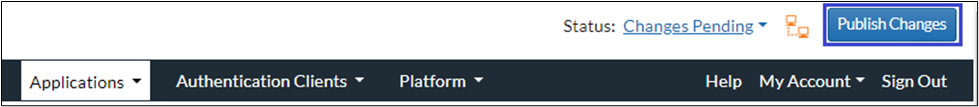

  3. Click Publish Changes to save your settings. After publishing, your application will be enabled for SSO.image.pngimage.png


Configure Zenduty

Perform these steps to configure Zenduty.
Procedure
  1. Log in to Zenduty using admin credentials.

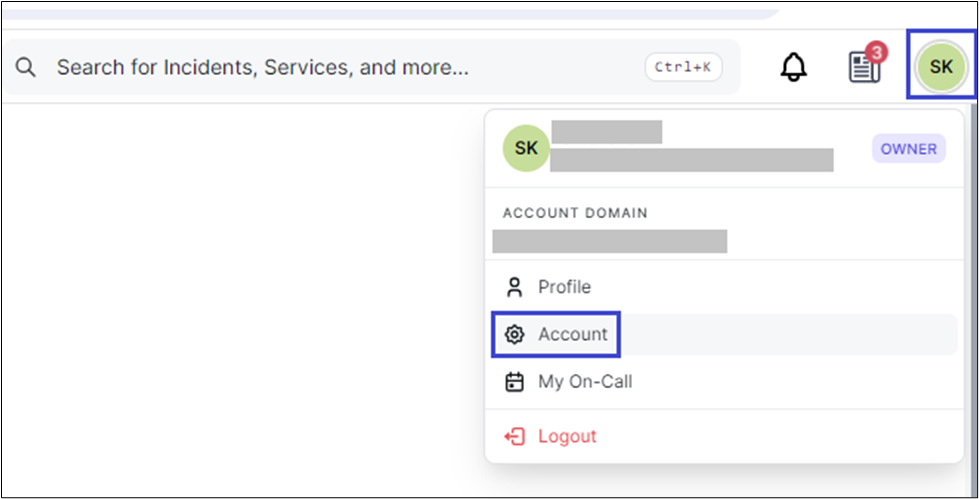

  2. Click on your profile icon in the top right corner and select Account from the dropdown menu.image.png

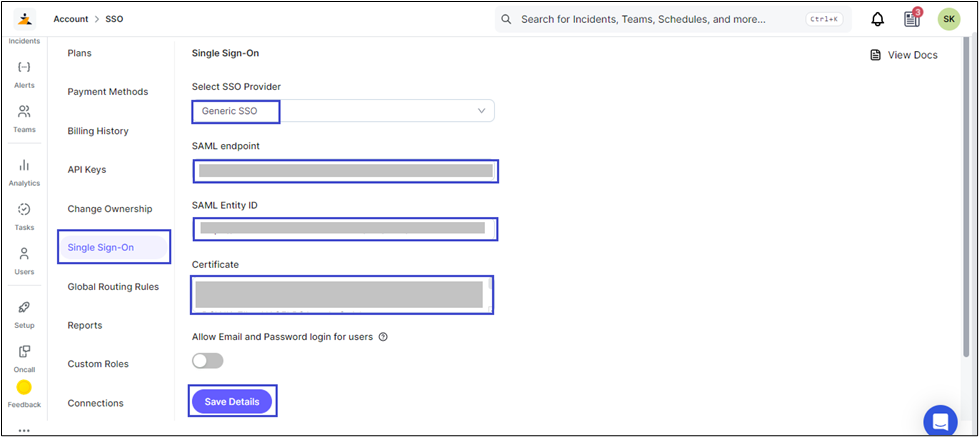

  3. Select Single Sign-On, provide the following details, and click Save Details.
    1. Select SSO Provider: choose Generic SSO.
    2. SAML endpoint: Enter the value of SingleSignOnService. This value can be obtained from the metadata file downloaded from the RSA platform.
    3. SAML Entity ID: Enter the value of entityID. This value can be obtained from the metadata file downloaded from the RSA platform.
    4. Certificate: Copy and paste the certificate downloaded from the RSA platform.

The configuration is complete.
